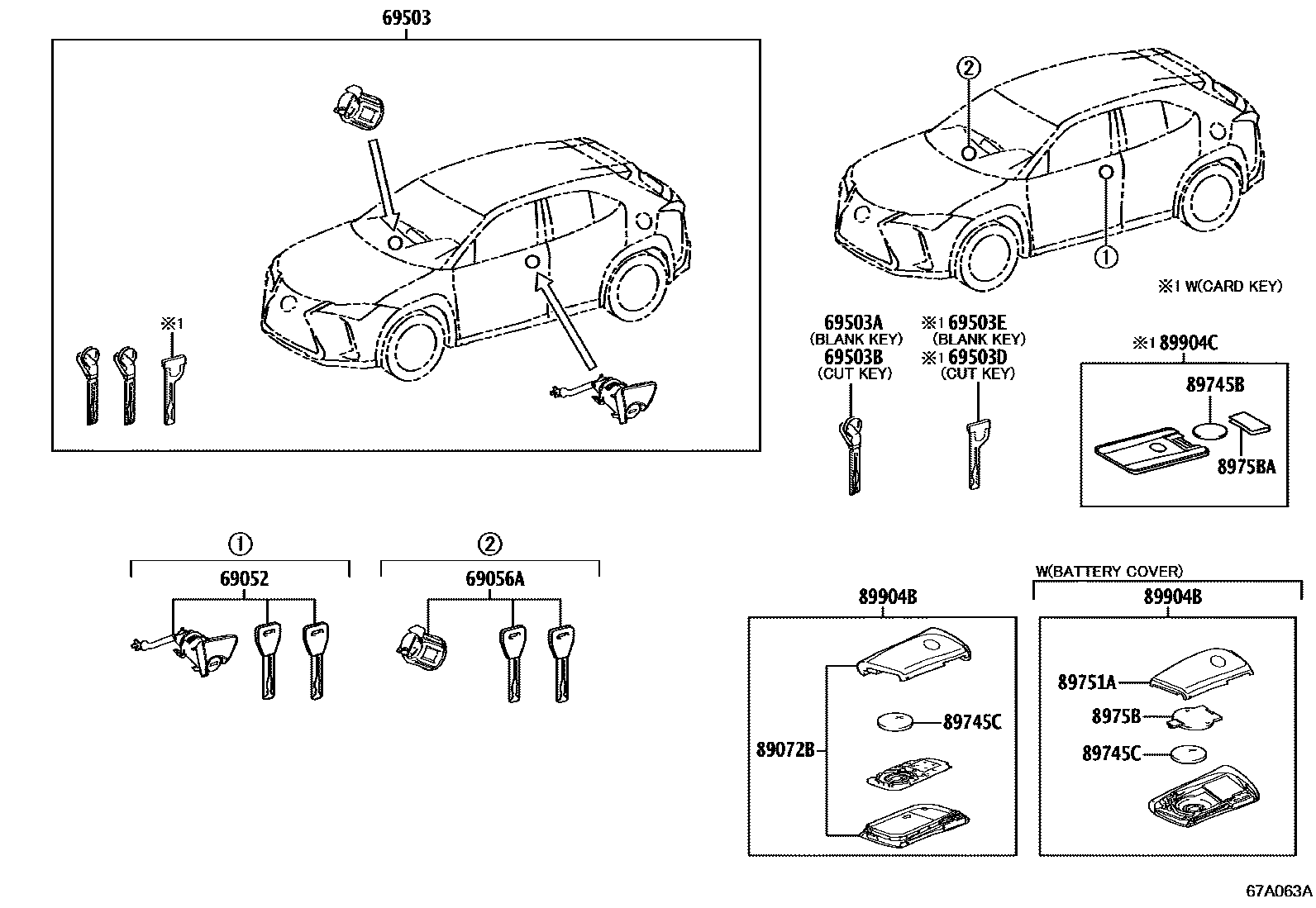

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
69503EKEY, BLANK(CARD KEY)
MASTER KEY
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745BBATTERY, TRANSMITTER(CARD KEY)
89745CBATTERY, TRANSMITTER
CR2032
89751ACOVER, TRANSMITTER HOUSING
SOUTH AFRICA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
SOUTH AFRICA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
SOUTH AFRICA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
SOUTH AFRICA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
LATIN AMERICA SPEC
LATIN AMERICA SPEC&SMART ENTRY-WITHOUT
LATIN AMERICA SPEC&SMART ENTRY-2 BUTTON TYPE
LATIN AMERICA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
LATIN AMERICA SPEC&SMART ENTRY-4 BUTTON TYPE
8975BCOVER, TRANSMITTER BATTERY HOUSING
SOUTH AFRICA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
SOUTH AFRICA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
LATIN AMERICA SPEC
LATIN AMERICA SPEC&SMART ENTRY-WITHOUT
LATIN AMERICA SPEC&SMART ENTRY-2 BUTTON TYPE
LATIN AMERICA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
LATIN AMERICA SPEC&SMART ENTRY-4 BUTTON TYPE
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
BRAZIL SPEC
sub8990H-76101
SOUTH AFRICA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
LATIN AMERICA SPEC&SMART ENTRY-2 BUTTON TYPE
sub8990H-76311
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
sub8990H-76311
PANAMA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
LATIN AMERICA SPEC&SMART ENTRY-WITHOUT
LATIN AMERICA SPEC&SMART ENTRY-2 BUTTON TYPE
ARGENTINA SPEC&SMART ENTRY-2 BUTTON TYPE
GUATEMALA SPEC&SMART ENTRY-2 BUTTON TYPE
PARAGUAY SPEC&SMART ENTRY-2 BUTTON TYPE
PANAMA SPEC&SMART ENTRY-2 BUTTON TYPE
ARGENTINA SPEC&SMART ENTRY-WITHOUT
GUATEMALA SPEC&SMART ENTRY-WITHOUT
PARAGUAY SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
SOUTH AFRICA SPEC&SMART ENTRY-WITHOUT
GUATEMALA SPEC&SMART ENTRY-2 BUTTON TYPE
PANAMA SPEC&SMART ENTRY-2 BUTTON TYPE
GUATEMALA SPEC&SMART ENTRY-WITHOUT
PANAMA SPEC&SMART ENTRY-WITHOUT
GUATEMALA SPEC&SMART ENTRY-WITHOUT
PARAGUAY SPEC&SMART ENTRY-WITHOUT
PANAMA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-WITHOUT
SOUTH AFRICA SPEC&SMART ENTRY-2 BUTTON TYPE
LATIN AMERICA SPEC&SMART ENTRY-WITHOUT
LATIN AMERICA SPEC&SMART ENTRY-2 BUTTON TYPE
ARGENTINA SPEC&SMART ENTRY-2 BUTTON TYPE
GUATEMALA SPEC&SMART ENTRY-2 BUTTON TYPE
PARAGUAY SPEC&SMART ENTRY-2 BUTTON TYPE
PANAMA SPEC&SMART ENTRY-2 BUTTON TYPE
ARGENTINA SPEC&SMART ENTRY-WITHOUT
PANAMA SPEC
GUATEMALA SPEC
PANAMA SPEC
ARGENTINA SPEC
LATIN AMERICA SPEC
GUATEMALA SPEC
PARAGUAY SPEC
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
15 parts on this diagram · 2 diagrams in section
