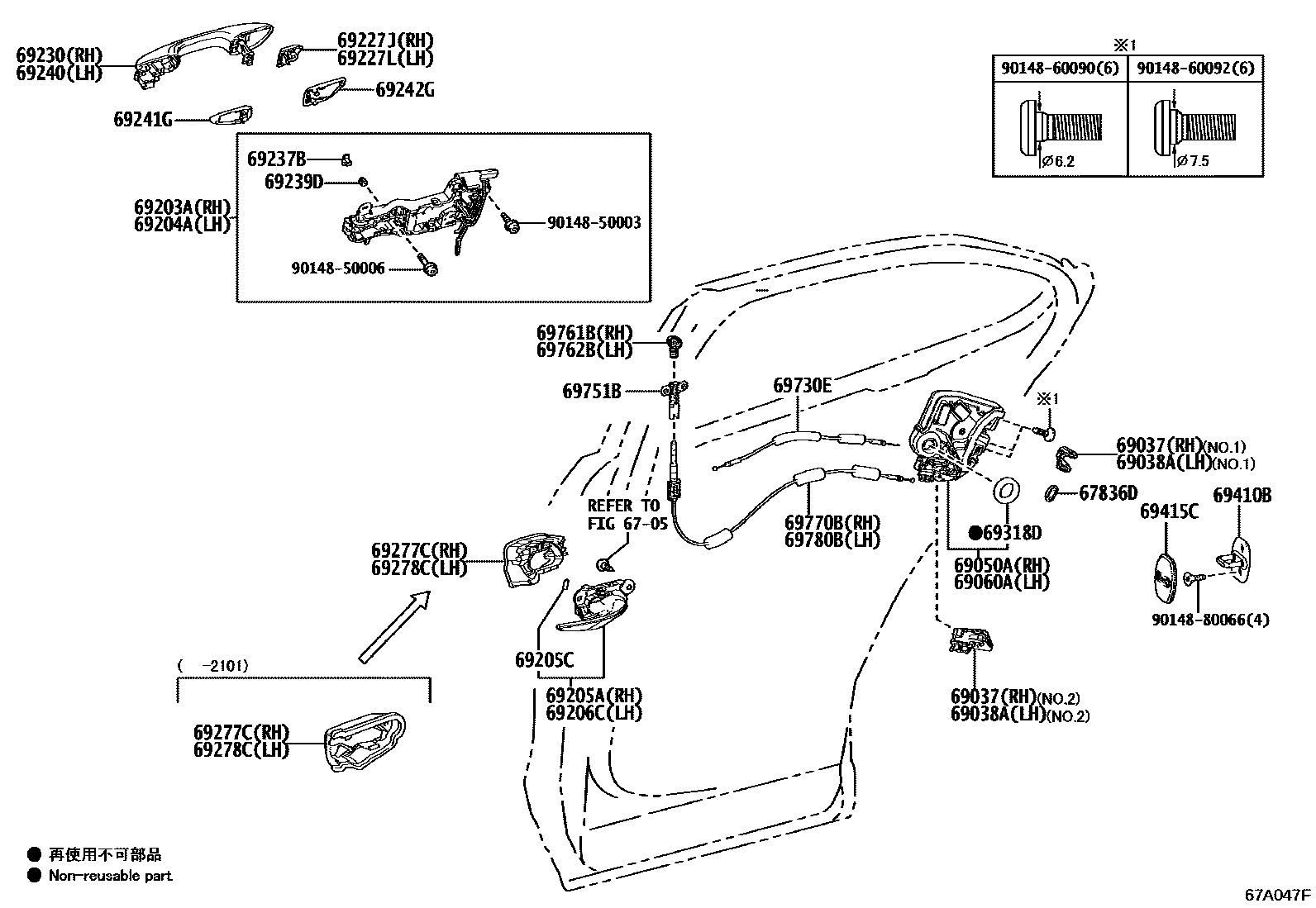

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
NO.1
NO.2
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
NO.1
NO.2
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
BLACK,TRIM0#,1#,2#,3#,4#,8#
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
BLACK,TRIM0#,1#,2#,3#,4#,8#
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014850006
main90148-50006
9014860090
main90148-60090
9014860092
main90148-60092
9014880066
main90148-80066
35 parts on this diagram · 1 diagram in section
