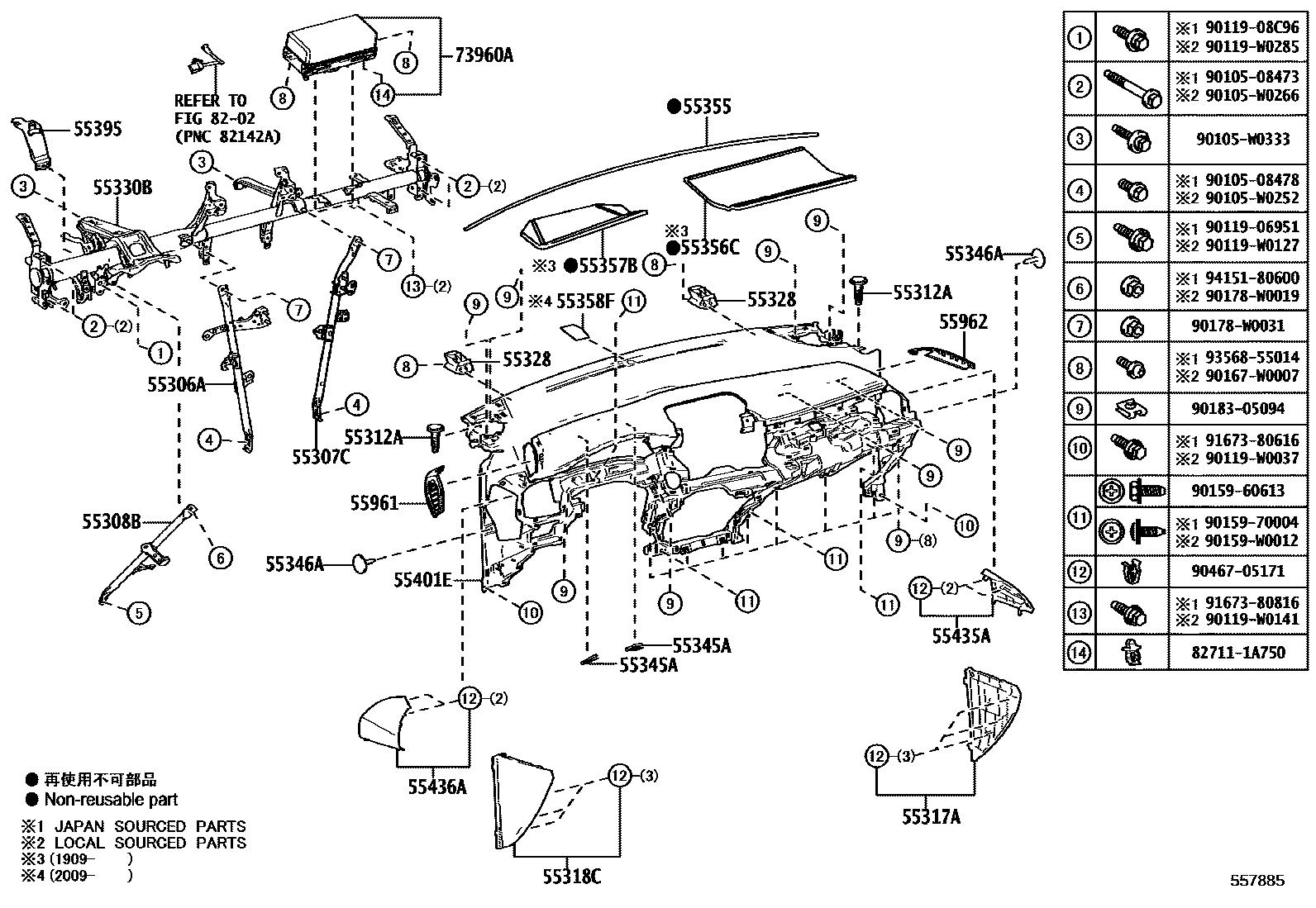

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-F4020iNGX10..RUS201610-202112

main55306-F4030iNGX10,50,ZYX10..RHD201610-201909

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-F4010iNGX10,50,ZGX10,ZYX10..LHD201610-202112

main55307-F4020iNGX10,50,ZYX10..RHD201610-201909

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-F4020iNGX10,50,ZGX10,ZYX10..LHD201610-201812

main55308-F4021iNGX10,50,ZGX10,ZYX10..LHD201812-202112

main55308-F4030iMAXH10,NGX10,ZYX1#..RHD201610-201909

55312ACLIP, INSTRUMENT PANEL

main52161-02030iNGX10,50,ZGX10,ZYX10201610-202112

55317APANEL, INSTRUMENT SIDE, RH

main55317-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

NEW CALEDONIA SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

REUNION SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

SERBIA SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

MONTENEGRO SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

MACEDONIA SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

BOSNIA SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..LHD..EUR201610-201805

EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..LHD..EUR201610-201805

TURKEY SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..LHD..EUR201610-201805

EUROPE SPEC(EXCEPT EU),EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

GREENLAND SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-202112

BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

TURKEY SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

EUROPE SPEC(EXCEPT EU),BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

REUNION SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

SERBIA SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

MONTENEGRO SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

MACEDONIA SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

BOSNIA SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

ALBANIA SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZGX10..RUS;NGX10,50,ZYX10..RHD201805-201909

UKRAINE SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

EUROPE SPEC(EXCEPT EU),BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

REUNION SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

SERBIA SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

MONTENEGRO SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

MACEDONIA SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

BOSNIA SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

ALBANIA SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

UKRAINE SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

GREENLAND SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

SVALBARD SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iZYX10..RHD..G201909

SVALBARD SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4010-C1iNGX10..N..EUR202010

GEORGIA SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10..N..EUR202010

GEORGIA SPEC,BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4020-C0iZGX10201610-201805

MEXICO SPEC,EU BLACK,TRIM2#

main55317-F4020-C0iZGX10201610-201805

EU BLACK,TRIM2#

main55317-F4020-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX1#..LHD..N..EUR201805-202010

BLACK,TRIM2#

main55317-F4020-C1iNGX50..(G,K)..EUR;MAXH10,ZYX1#..LHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909-202010

BLACK,TRIM2#,4#,8#

main55317-F4020-C1iZGX10201805-201909

MEXICO SPEC,BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-F4010-C0iNGX10,50,ZGX10,ZYX10..LHD201610-201805

EU BLACK,TRIM2#

main55318-F4010-C1iNGX10,50,ZGX10,ZYX10..LHD201805-202112

BLACK,TRIM2#

main55318-F4010-C1iNGX10..LHD..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..N201909-202112

BLACK,TRIM2#,4#,8#

main55318-F4020-C0iNGX10,50,ZYX10..RHD201610-201805

EU BLACK,TRIM2#

sub55318-F4020

main55318-F4020-C1iMAXH10,NGX10,ZYX1#..RHD..N201909

BLACK,TRIM2#,8#

sub55318-F4020

main55318-F4020-C1iNGX10,50,ZYX10..RHD201805-201909

BLACK,TRIM2#

sub55318-F4020

main55318-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,4#,8#

sub55318-F4020

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4030iNGX10..RUS201610-202112

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4020iNGX10..LHD..6F201610-202112

main55330-F4030iNGX10,50,ZYX10..RHD201610-201909

main55330-F4050iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD..CVT201610-201909

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iNGX10,50,ZGX10,ZYX10201610-202112

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C0iNGX10..RUS201610-202112

BLACK,(J)

sub90467-05161

main90467-05161-C9iNGX10,50,ZGX10,ZYX10201808-201909

BLACK,(J)

sub90467-05161

main90467-W0001-C0iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

BLACK,(L)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-F4010iNGX10,50,ZGX10,ZYX10201610-202112

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-F4020iNGX10..(E,G)..RUS201909-202112

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-F4010iMAXH10;NGX50..E,G;ZYX1#..E,G,K;NGX10..(E,G)..EUR201909-202112

55358FPROTECTOR, EDGE

main55358-F4010iNGX10..RUS202009-202112

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-F4010iNGX10,50,ZGX10,ZYX10..LHD201610-202112

main55395-F4020iMAXH10,NGX10,ZYX1#..RHD201610-201909

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-F4010-C1iNGX10,50,ZGX10,ZYX10..LHD..(G,N)201610-201805

EU BLACK,TRIM20

sub55401-F4011

main55401-F4010-C2iNGX10,50,ZGX10,ZYX10..LHD..E201610-201805

LICORICE,TRIM2#

sub55401-F4011

main55401-F4011-C3iNGX10,50,ZGX10,ZYX10..LHD..E201805-201909

LICORICE,TRIM2#

sub55401-F4011

main55401-F4011-C4iNGX10,50,ZGX10,ZYX10..LHD..(G,N)201805-201903

BLACK,TRIM2#

sub55401-F4011

main55401-F4011-C5iNGX10,50,ZGX10,ZYX10..LHD..(G,N)201903-201909

BLACK,TRIM2#

sub55401-F4011

main55401-F4020-C1iZYX10..LHD..N;NGX10..LHD..6F..N..EUR201610-201805

AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL,EU BLACK,TRIM20

sub55401-F4021

main55401-F4020-C1iZYX10..LHD..N;NGX10..LHD..6F..N..EUR201610-201805

AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA,EU BLACK,TRIM20

sub55401-F4021

main55401-F4020-C1iZYX10..LHD..N;NGX10..LHD..6F..N..EUR201610-201805

AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO,EU BLACK,TRIM20

sub55401-F4021

main55401-F4020-C1iNGX10,50,ZYX10..LHD..(G,N)..EUR201610-201805

EU BLACK,TRIM2#

sub55401-F4021

main55401-F4020-C1iNGX10,50,ZYX10..LHD..(G,N)..EUR201610-201805

AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM20

sub55401-F4021

main55401-F4020-C1iNGX10,50,ZYX10..LHD..(G,N)..EUR201610-201805

AUDIO-RADIO LESS & 2SPEAKER,EU BLACK,TRIM20

sub55401-F4021

main55401-F4021-C4iZGX10..G,N201805-201903

AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C4iZGX10..G,N201805-201903

AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C4iZGX10..G,N201805-201903

AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C4iZGX10..G,N201805-201903

AUDIO-RADIO LESS & 2SPEAKER,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C4iZGX10..G,N201805-201903

AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C4iZGX10..G,N201805-201903

BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iZGX10..G,N;NGX10,50,ZYX10..LHD..N201903-201909

AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..D201903-201909

BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..D201903-201909

AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..D201903-201909

AUDIO-RADIO LESS & 2SPEAKER,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..D201903-201909

AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..D201903-201909

AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX50..E..EUR202008

BLACK,TRIM20,21

sub55401-F4021

main55401-F4021-C6iNGX50..E..EUR202008

BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4021

main55401-F4021-C7iNGX50..E..EUR202008

BLACK/BLUE,TRIM24,8#

sub55401-F4021

main55401-F4030-C0iNGX10,50,ZYX10..RHD..(G,N)201610-201805

DEEP BLUE,TRIM20

sub55401-F4030

main55401-F4030-C1iNGX10,50,ZYX10..RHD..(G,N)201610-201805

EU BLACK,TRIM20

sub55401-F4030

main55401-F4030-C2iNGX10,50,ZYX10..RHD..E201610-201805

LICORICE,TRIM2#

sub55401-F4030

main55401-F4030-C3iNGX10,50,ZYX10..RHD..E201805-201909

LICORICE,TRIM2#

sub55401-F4030

main55401-F4030-C4iNGX10,50,ZYX10..RHD..(G,N)201805-201903

BLACK,TRIM2#

sub55401-F4030

main55401-F4030-C5iNGX10,50,ZYX10..RHD..(G,N)201903-201909

BLACK,TRIM2#

sub55401-F4030

main55401-F4040-C1iNGX10,50,ZYX10..RHD..N201610-201805

EU BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C1iZYX10..RHD..N;NGX10..RHD..6F..N201610-201805

AUDIO-RADIO LESS & 2SPEAKER,EU BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C1iNGX10,50,ZYX10..RHD..N201610-201805

AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C4iNGX10,50,ZYX10..RHD..N201805-201903

BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C4iNGX10..RHD..D201805-201903

AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C4iZYX10..RHD..N;NGX10..RHD..6F..N201805-201903

AUDIO-RADIO LESS & 2SPEAKER,BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C5iNGX10,50,ZYX10..RHD..N201903-201909

BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C5iNGX10,50,ZYX10..RHD..N201903-201909

AUDIO-RADIO LESS & 6SPEAKER,BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C5iNGX10,50,ZYX10..RHD..N201903-201909

AUDIO-RADIO LESS & 2SPEAKER,BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C5iZYX10..RHD..G201909

HONG KONG, MACAU SPEC,BLACK,TRIM20,21

sub55401-F4040

main55401-F4090-C4iNGX10..LHD..(K,N)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..(K,N)201909-202112

BLACK,TRIM2#

sub55401-F4090

main55401-F4090-C4iNGX50..E..EUR201909-202112

BLACK,TRIM20,21

sub55401-F4090

main55401-F4090-C5iNGX50..G..EUR;NGX50..(E,G)..RUS;NGX10..LHD..(E,G)..EUR;MAXH10,ZGX10,ZYX1#..LHD..(E,G)201909-202112

BLACK/ORCHID BROWN,TRIM4#

sub55401-F4090

main55401-F4090-C5iNGX50..G..EUR;NGX50..(E,G)..RUS;NGX10..LHD..(E,G)..EUR;MAXH10,ZGX10,ZYX1#..LHD..(E,G)201909-202112

BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4090

main55401-F4090-C6iNGX10..(E,G)..RUS201909-202112

BLACK/BLUE,TRIM24,8#

sub55401-F4090

main55401-F4090-C6iNGX10..K..RUS201909-202112

BLACK/BLUE,TRIM8#

sub55401-F4090

main55401-F4100-C0iZYX10..RHD..N201909

MAURITIUS, SEYCHELLES SPEC,BLACK/SOFT BLACK,TRIM2#

main55401-F4100-C0iMAXH10,NGX10,ZYX1#..RHD..(E,G)201909

BLACK/SOFT BLACK,TRIM20,21

main55401-F4100-C0iMAXH10,NGX10,ZYX1#..RHD..(E,G)201909

BLACK/SOFT BLACK,TRIM2#

main55401-F4100-C1iZYX10..RHD..G201909

BLACK/ORCHID BROWN,TRIM22,23

main55401-F4100-C1iMAXH10,NGX10,ZYX11..RHD..(E,G)201909

BLACK/ORCHID BROWN,TRIM22,23,4#

main55401-F4100-C1iMAXH10,NGX10,ZYX11..RHD..(E,G)201909

BLACK/ORCHID BROWN,TRIM4#

main55401-F4100-C2iMAXH10,NGX10,ZYX1#..RHD..(E,G)201909

BLACK/BLUE,TRIM24,8#

main55401-F4100-C2iMAXH10,NGX10,ZYX1#..RHD..(E,G)201909

BLACK/BLUE,TRIM8#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub55435-F4010

main55435-F4010-C1iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub55435-F4010

main55435-F4010-C1iNGX10,50,ZGX10,ZYX10201805-202112

BLACK,TRIM2#

sub55435-F4010

main55435-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub55435-F4010

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub55436-F4010

main55436-F4010-C1iZYX10..RHD..G201909-202112

BLACK,TRIM2#,4#,8#

sub55436-F4010

main55436-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub55436-F4010

main55436-F4010-C1iNGX10..(E,G,K)..EUR;ZYX10..LHD..(E,G,K);MAXH10,NGX50,ZGX10,ZYX11..E,G,K201805-202112

BLACK,TRIM2#

sub55436-F4010

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-F4010-C0iNGX10,50,ZGX10,ZYX10..LHD201610-201805

EU BLACK,TRIM2#

main55961-F4010-C1iNGX10..LHD..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..N201805-202112

BLACK,TRIM2#

main55961-F4010-C1iNGX10..LHD..(E,G,K)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..(E,G,K)201909-202112

BLACK,TRIM2#,4#,8#

main55961-F4020-C0iNGX10,50,ZYX10..RHD201610-201805

EU BLACK,TRIM2#

sub55961-F4020

main55961-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub55961-F4020

main55961-F4020-C1iNGX10,50,ZYX10..RHD201805-201909

BLACK,TRIM2#

sub55961-F4020

main55961-F4020-C1iZYX10..RHD..G201909

BLACK,TRIM2#,4#,8#

sub55961-F4020

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-F4010-C0iNGX10,50,ZGX10,ZYX10..LHD201610-201805

EU BLACK,TRIM2#

main55962-F4010-C1iNGX10..N..RUS201805-202112

BLACK,TRIM2#

main55962-F4010-C1iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

main55962-F4020-C0iNGX10,50,ZYX10..RHD201610-201805

EU BLACK,TRIM2#

main55962-F4020-C1iMAXH10,NGX10,ZYX1#..RHD..N201909

BLACK,TRIM2#,8#

main55962-F4020-C1iMAXH10,NGX10,ZYX1#..RHD..N201909

BLACK,TRIM2#,4#,8#

main55962-F4020-C1iMAXH10,NGX10,ZYX11..RHD..(E,G,K)201805-201909

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4010iNGX10,50,ZGX10,ZYX10201610-201911

sub73960-F4011

main73960-F4011iNGX10,50,ZGX10,ZYX10201809-202112

8202

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508473

main90105-08473

9010508478

main90105-08478

90105W0252

main90105-W0252

90105W0266

main90105-W0266

90105W0333

main90105-W0333

9011906951

main90119-06951

9011908C96

main90119-08C96

90119W0037

main90119-W0037

90119W0127

main90119-W0127

90119W0141

main90119-W0141

90119W0285

main90119-W0285

9015960613

main90159-60613

9015970004

main90159-70004

90159W0012

main90159-W0012

90167W0007

main90167-W0007

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

46 parts on this diagram · 8 diagrams in section
