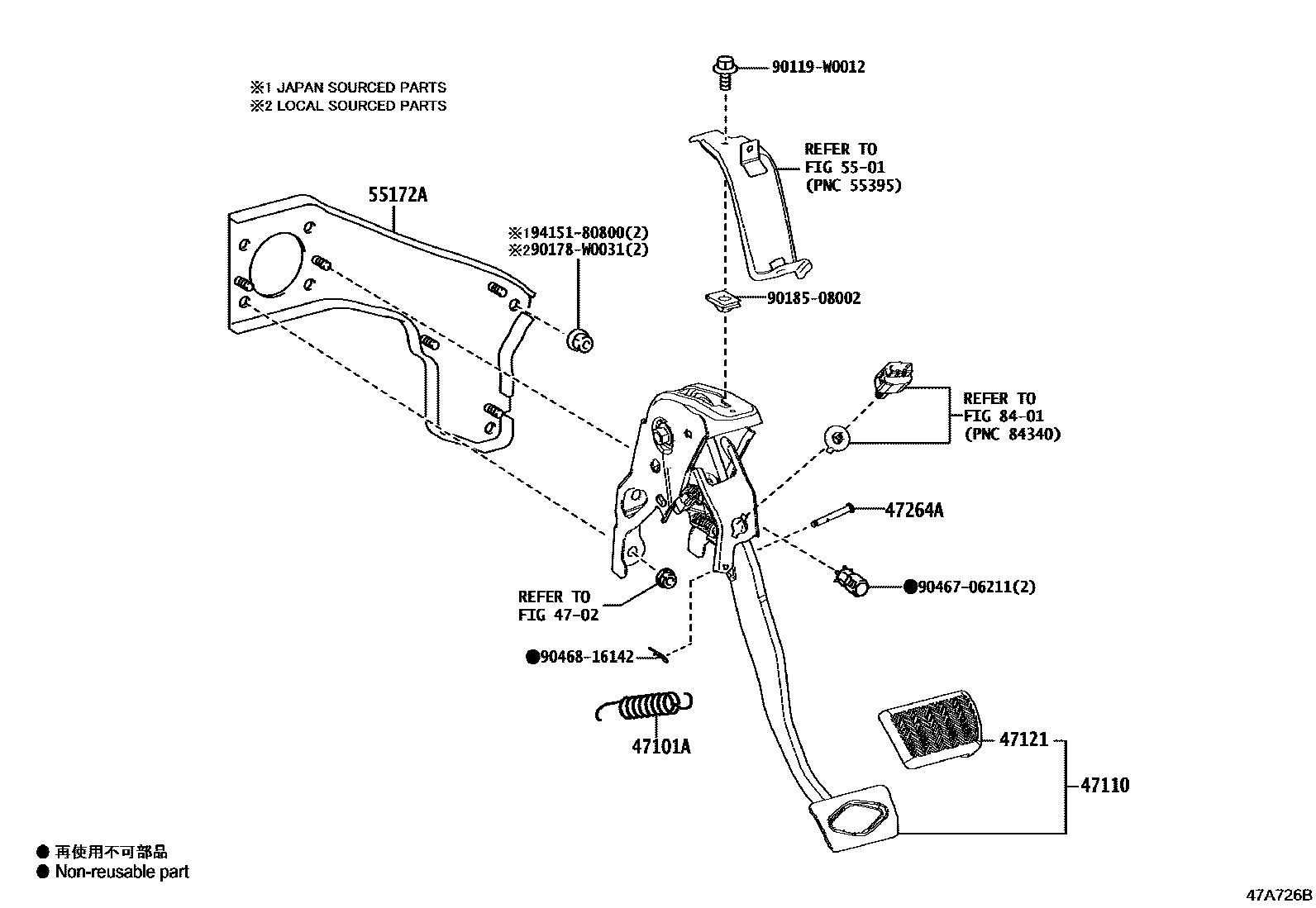

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iNGX10,50,ZGX10201610-201909

main90507-16030iZYX10201610-201909

47110SUPPORT ASSY, BRAKE PEDAL

main47110-F4010supersedes 47110-F4020iNGX50,ZGX10..RUS201610-201909

main47110-F4020iNGX10,50..LHD..CVT..EUR201610-201909

main47110-F4030iNGX10..RUS201909-202112

main47110-F4040iNGX10..LHD..6F..EUR201909-202009

main47110-F4060iNGX10,50..RHD..CVT201610-201909

main47110-F4080iNGX10..RHD..6F201909-202009

main47110-F4090iMAXH10,ZYX1#..LHD201909

main47110-F4100iZYX10..RHD201610-201909

47121PAD, BRAKE PEDAL

main47121-F4010iNGX10,50,ZGX10,ZYX10..CVT201610-201909

main47121-F4020iNGX10..6F201610-201909

47264APIN(FOR PUSH ROD)

main90249-06187supersedes 90249-08221iNGX10..LHD..CVT..(E,N); NGX50,ZGX10..RUS201909

TAIWAN SPEC

main90249-08221iNGX50..(G,K,N)..EUR;MAXH10,NGX10,ZYX1#..EUR201909

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4010iNGX10,50,ZGX10,ZYX10..LHD201610-201909

main55172-F4011iNGX10..RUS201911-202112

main55172-F4020iMAXH10,NGX10,ZYX1#..RHD201909-201910

main55172-F4021iMAXH10,NGX10,ZYX1#..RHD201911

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119W0012

main90119-W0012

90178W0031

main90178-W0031

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

14 parts on this diagram · 4 diagrams in section
