ALTERNATOR

0001 112V 115A 0002 112V 130A

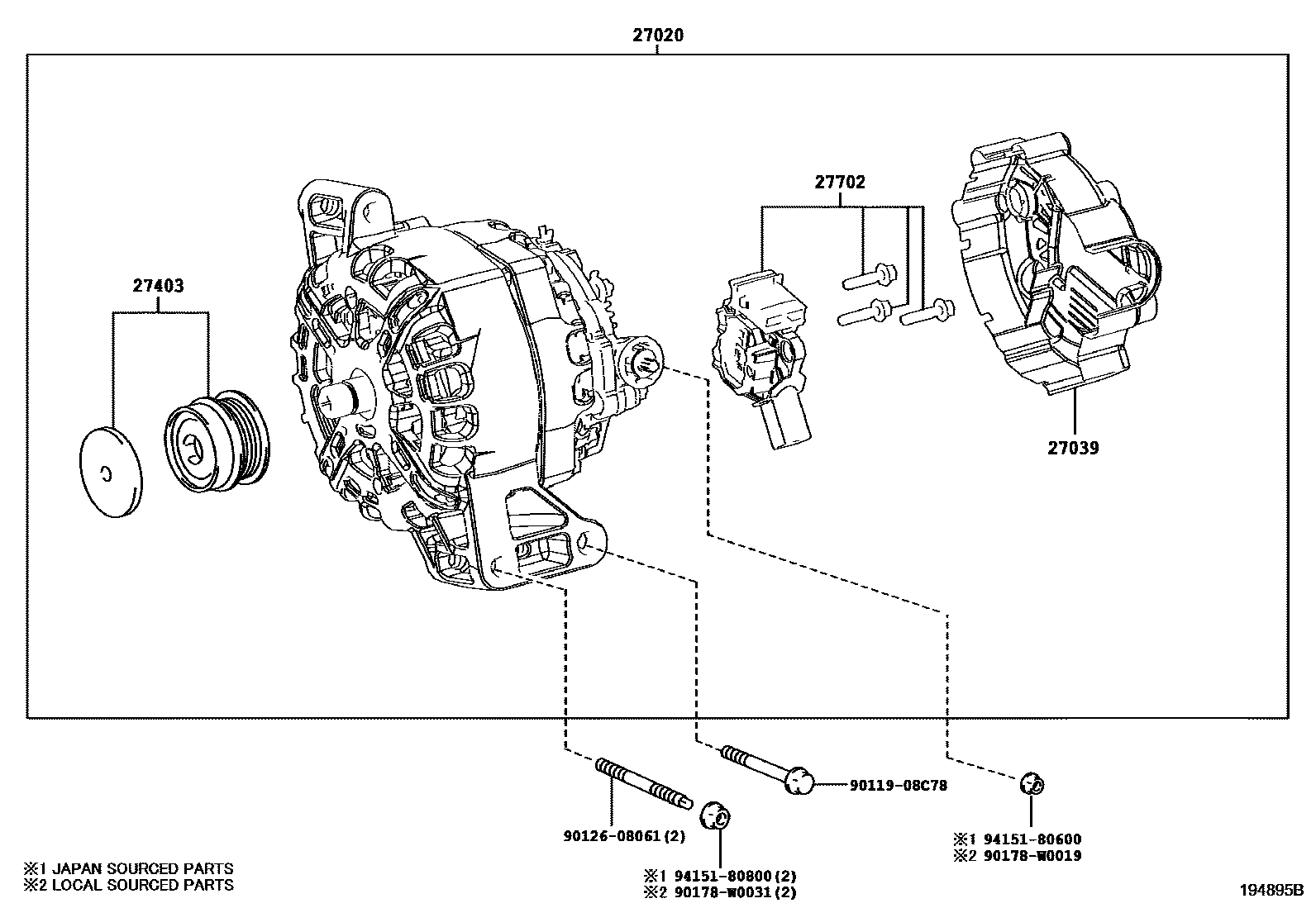

27020ALTERNATOR ASSY

main27060-0T370i3ZRFAE..ZGX10201610-201909

12V 130A

main27060-0Y210i8NRFTS..NGX10,50201610-201708

12V 115A

main27060-0Y211i8NRFTS..NGX10..RUS201909-202112

12V 115A

main27060-0Y212i8NRFTS..NGX10,50..EUR201909

12V 115A

27039COVER, ALTERNATOR REAR END

main27039-0Y150i3ZRFAE..ZGX10201610-201909

main27039-0Y210i8NRFTS..NGX10,50201610-201909

27403PULLEY SET, ALTERNATOR

main27403-0Y210i8NRFTS..NGX10,50201610-201709

main27403-0Y211i8NRFTS..NGX10,50201709-201909

27702REGULATOR SUB-ASSY GENERATOR W/BRUSH

main27702-0Y090i8NRFTS..NGX10,50201610-201909

9011908C78

main90119-08C78

9012608061

main90126-08061

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9415180600

main94151-80600

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
