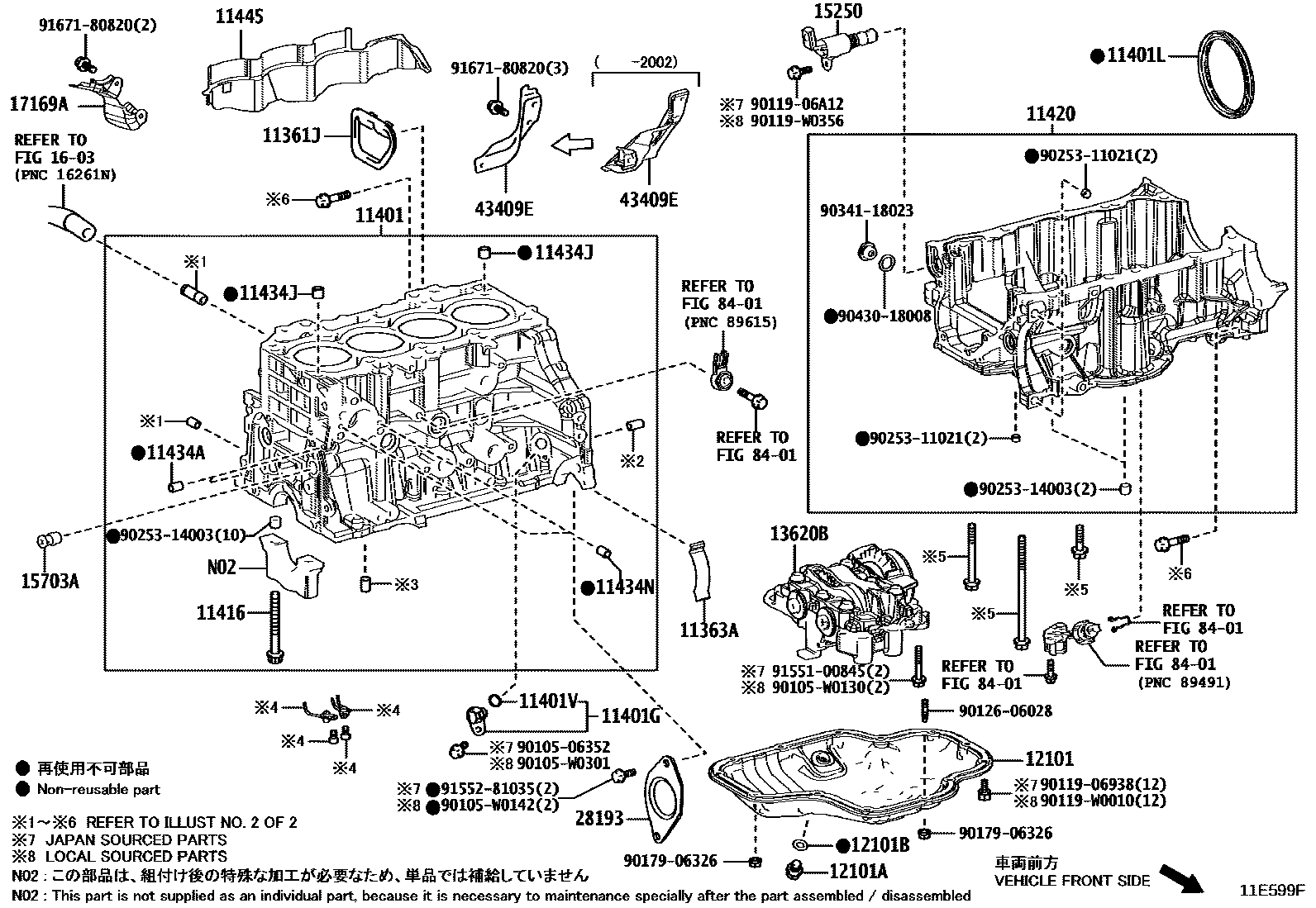

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
(L)
(L)
*132
sub11410-39037
sub11410-39038
(J)
sub11410-39295
sub16278-37021
sub16281-37071
sub16281-37190
sub16295-37021
sub25601-37050
sub25601-37060
(J)
*613
11401GSENSOR, CRANK POSITION
*132
*613
11401LSEAL, ENGINE REAR OIL
(J)
*132
(J),*613
(L)
(L),*613
11401VO-RING, CRANK POSITION SENSOR
*132
*613
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*613
*132
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6,*132
L=14,OD=6,*613
11434JPIN, RING (FOR CYLINDER HEAD SET)
*132
*613
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*132
*613
11445SPACER, CYLINDER BLOCK WATER JACKET
*132
*613
12101PAN SUB-ASSY, OIL
*132
*613
12101APLUG(FOR OIL PAN DRAIN)
*132
*613
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*132
*613
13620BBALANCER ASSY, ENGINE
*132
*613
15250VALVE ASSY, OIL PRESSURE CONTROL
*132
*613
15703AVALVE SUB-ASSY, OIL NOZZLE
*132
*613
1603
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
*132
*613
28193INSULATOR, STARTER HOLE
8401
9010506352
main90105-06352
90105W0130
main90105-W0130
90105W0142
main90105-W0142
90105W0301
main90105-W0301
9011906938
main90119-06938
9011906A12
main90119-06A12
90119W0010
main90119-W0010
90119W0356
main90119-W0356
9012606028
main90126-06028
9017906326
main90179-06326
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
9043018008
main90430-18008
9155100845
main91551-00845
9155281035
main91552-81035
9167180820
main91671-80820
40 parts on this diagram · 8 diagrams in section
