FRONT SEAT & SEAT TRACK

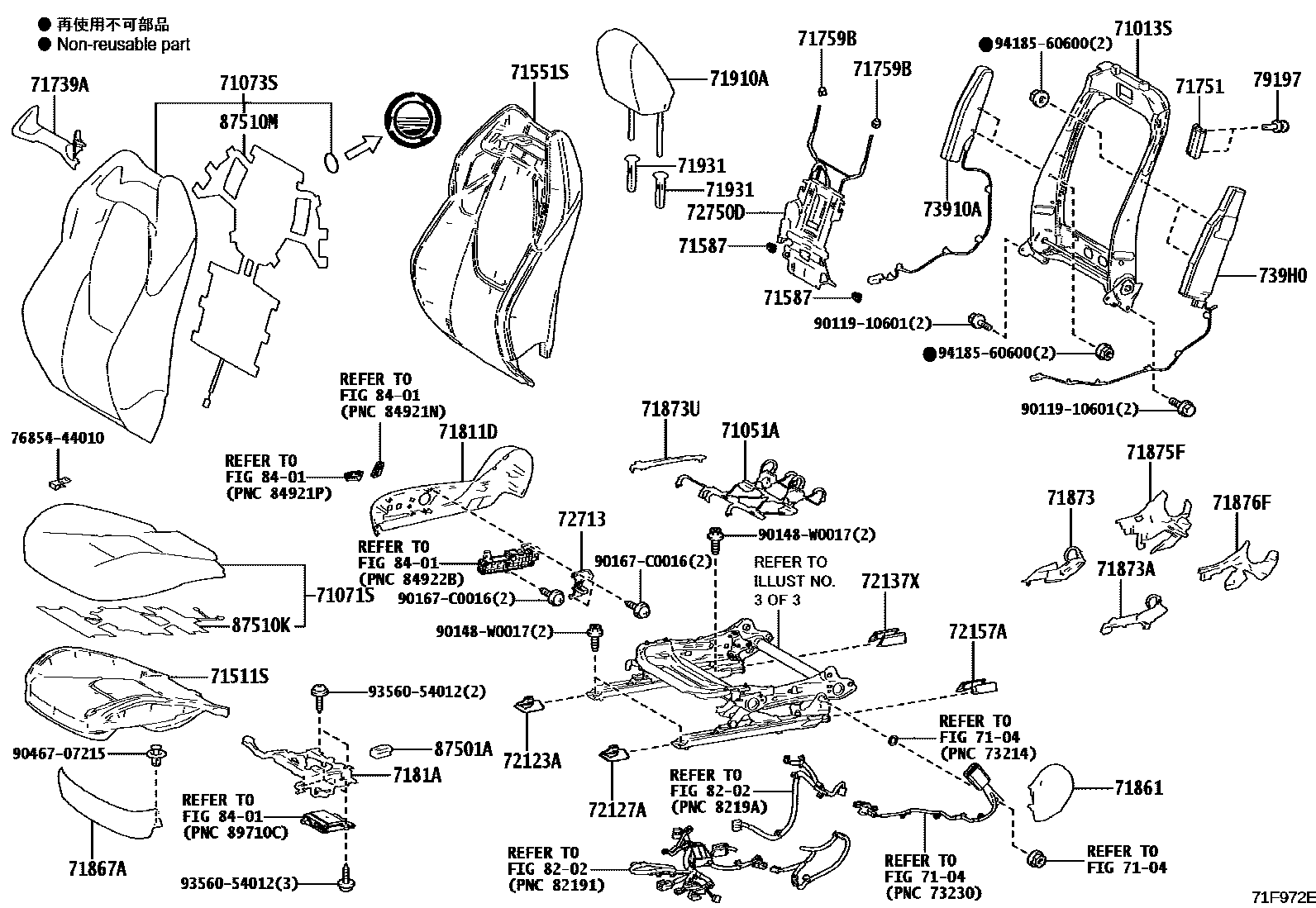

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-F4090i202310
main71013-F4100i202310
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-F4011i202310
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-F4600-B0supersedes 71071-F4691-C3i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,PLATINUM,TRIM2#
main71071-F4610-B0i202310
PLATINUM,TRIM2#
main71071-F4630-C0i202310
FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,HYPER BLACK,TRIM2#
main71071-F4690-C2i202310-202409
SEAT HEATER-WITH,HYPER BLACK,TRIM20
main71071-F4690-C3supersedes 71071-F4650-C3i202310-202409
BLACK/COPPER,TRIM20
main71071-F4700-C0i202310
HYPER BLACK,TRIM2#
main71071-F4580-C2supersedes 71071-F4651-C3i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-LEATHER&FRONTSEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK/BLACK,TRIM2#
main71071-F4580-C3i202310-202502
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK/SULPHUR,TRIM21
main71071-F4620-C2i202310-202502
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK/BLACK,TRIM20
main71071-F4620-C3i202310-202502
SEAT COVER MATERIAL-LEATHER,BLACK/SULPHUR,TRIM21
main71071-F4670-C0supersedes 71071-F4240-C0i202310-202502
SEAT HEATER-WITH,DARK ANTHRACITE,TRIM2#
main71071-F4680-C0supersedes 71071-F4570-C0i202310-202502
SEAT HEATER-WITH,DARK ANTHRACITE,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-F4330-C3i202310-202409
HYPER BLACK,TRIM20
main71073-F4330-C4i202310-202409
BLACK/COPPER,TRIM20
main71073-F4630-B2i202310-202502
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,PLATINUM,TRIM2#
main71073-F4650-B2supersedes 71073-F4331-C4i202310-202502
PLATINUM,TRIM2#
main71073-F4680-C2i202310-202502
HYPER BLACK,TRIM2#
main71073-F4730-C3i202401-202409
HYPER BLACK,TRIM20
main71073-F4730-C4supersedes 71073-F4710-C4i202401-202409
BLACK/COPPER,TRIM20
main71073-F4740-C2i202310-202502
HYPER BLACK,TRIM2#
main71073-F4430-C1supersedes 71073-F4610-C1i202310-202502
SEAT HEATER-WITH,DARK ANTHRACITE,TRIM2#
main71073-F4670-C2i202310-202502
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK/BLACK,TRIM20
main71073-F4670-C3i202310-202502
SEAT COVER MATERIAL-LEATHER,BLACK/SULPHUR,TRIM21
main71073-F4700-C2supersedes 71073-F4731-C4i202401
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-LEATHER&FRONTSEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK/BLACK,TRIM2#
main71073-F4700-C3i202310-202502
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK/SULPHUR,TRIM21
main71073-F4720-C1supersedes 71073-F4620-C1i202310-202502
SEAT HEATER-WITH,DARK ANTHRACITE,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-F4060i202310
main71501-F4100i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH
main71511-F4110i202310
main71511-F4170supersedes 71511-F4160i202310
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-F4110i202310
main71551-F4120i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH
main71551-F4130i202310
main71551-F4140i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-F4010×4i202310
71739ABEZEL, FRONT SEATBACK
main71739-F4010-B0×2i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,PLATINUM,TRIM2#
main71739-F4010-C0×2i202310
LIQUID BLACK,TRIM2#
71751HANGER, SEAT COVER
main71751-0K070i202310
71759BHOOK, FRONT SEATBACK
main71759-F4010×4i202310
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-F4010-C1i202310
BLACK,TRIM2#
main71811-F4030-C2i202310
BLACK,TRIM2#
main71811-F4040-C2i202310
BLACK,TRIM2#
main71811-F4120-C0i202310
FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
main7181A-F4010i202310
main7181A-F4050i202310
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-F4010-C2i202310
BLACK,TRIM2#
main71861-F4030-C2i202310
BLACK,TRIM2#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-F4010-C0i202310
FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-F4010i202310
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-F4020i202310
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL
main71873-F4110i202310
71873USHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-F4100i202310
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-F4010-C2i202310
BLACK,TRIM2#
sub71875-47040
main71875-F4030-C2i202310
BLACK,TRIM2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-F4020-C2i202310
BLACK,TRIM2#
sub71875-47070
main71875-F4040-C2i202310
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-F4210-B0×2i202310
DARK GREY,TRIM2#
main71910-F4220-C3×2i202310-202502
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/PLATINUM,TRIM20
main71910-F4220-C4×2i202310-202502
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL&SEAT HEATER-WITH,BLACK/BLAC
main71910-F4220-C5×2i202310-202502
BLACK/SULPHUR,TRIM21
main71910-F4230-C1×2i202310-202502
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-F4010-C1×2i202310
W(LOCK),BLACK,TRIM2#
main71931-F4010-C1×2i202310
W/O(LOCK),BLACK,TRIM2#
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-F4010i202310
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-F4010i202310
72137XCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72137-F4010×2i202310
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-F4010i202310
72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
main72713-F4010i202310
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-F4010i202310
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-F4070i202310
739H0AIRBAG ASSY, FRONT SEAT CENTER, RH
main739H0-F4011i202310
main739H0-F4021i202310
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL
79197HOOK, SEATBACK COVER
main79197-0K010×2i202310
8202
8401
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-F4040×2i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-F4050supersedes 87510-F4020i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-F4020supersedes 87530-F4050i202310
ILLUMINATED ENTRY SYSTEM-MULTI AMBIENT ROOM LAMP&SEAT COVER MATERIAL-SYNTHETIC LEATHER & SUEDE&SEAT HEATER-WITH
7685444010RETAINER, FRONT SPOILER, UPPER LH
main76854-44010
9011910601
main90119-10601
90148W0017
main90148-W0017
90167C0016
main90167-C0016
9046707215
main90467-07215
9356054012
main93560-54012
9418560600
main94185-60600

43 parts on this diagram · 8 diagrams in section
