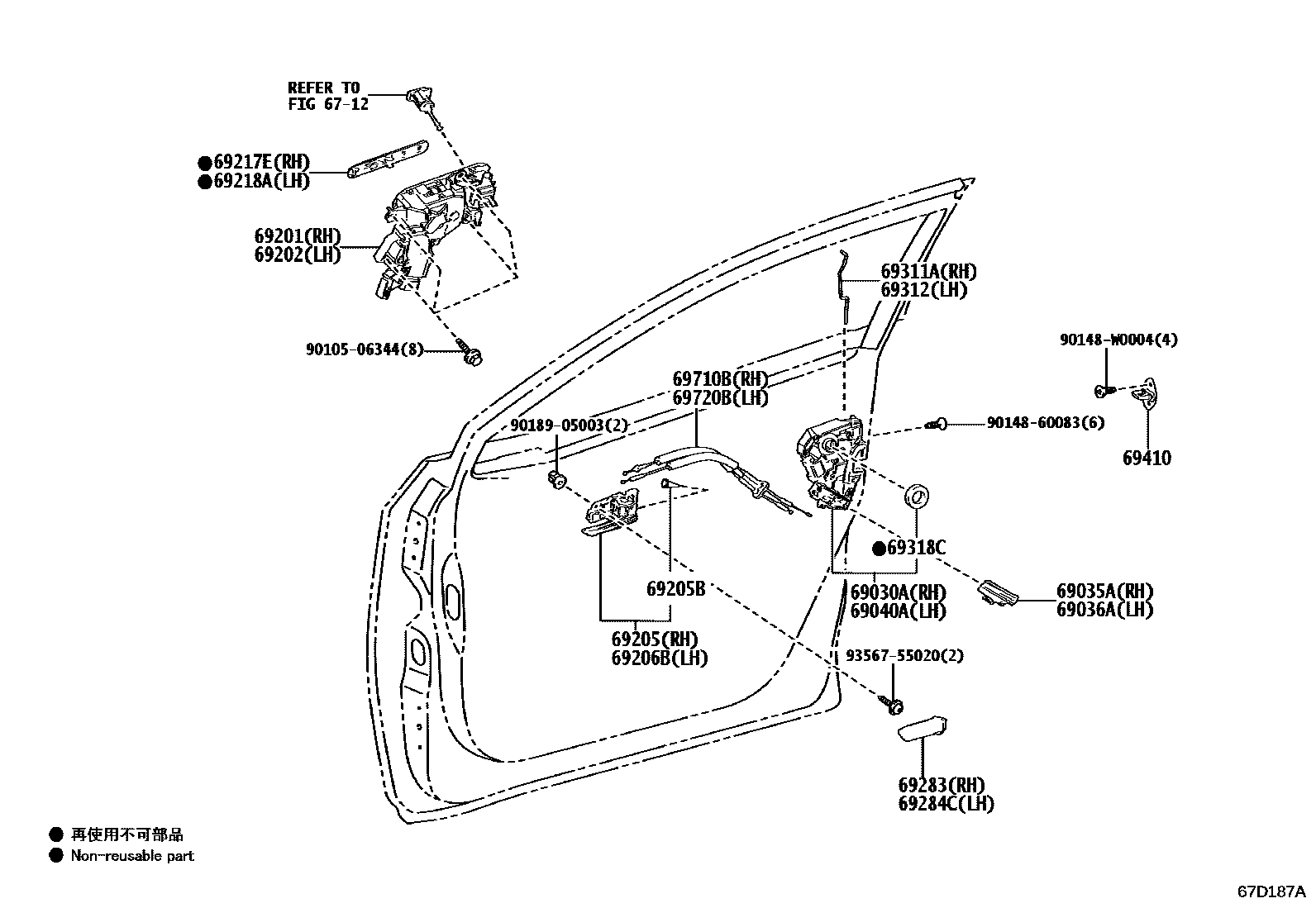

FRONT DOOR LOCK & HANDLE
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH
SMART ENTRY-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH
SMART ENTRY-WITH
SMART ENTRY-WITH
69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH
SMART ENTRY-WITH
SMART ENTRY-WITH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040 ,2MQ
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,SUPER WHITE 2,040
SMART ENTRY-WITH,SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2VP
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,PLATINUM WHITE PEARLMC.,089
SMART ENTRY-WITH,PLATINUM WHITE PEARL MC.,089
SMART ENTRY-WITH,GRAY ME.,1G3
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
ASH GRAY ME.,2VF
SILVER ME.,1L0 ,2VU
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,SILVER ME.,1L0
SMART ENTRY-WITH,SILVER ME.,1L0
PRECIOUS SILVER,2MR
BLACK MC.,209
SMART ENTRY-WITH,BLACK MC.,209
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,BLACK MC.,209
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,EMOTIONAL RED 2,3U5
SMART ENTRY-WITH,EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
SULFUR ME.,2YT
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,DK. TEAL M.M.,785
SMART ENTRY-WITH,DK. TEAL M.M.,785
DK. TEAL M.M.,2YB ,785
DEEP AMETHYST M.M.,2XE ,9AH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,DEEP AMETHYST M.M.,2XE ,9AH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,DEEP AMETHYST M.M.,9AH
SMART ENTRY-WITH,DEEP AMETHYST M.M.,9AH
SMART ENTRY-WITH,DEEP AMETHYST M.M.,2XE ,9AH
SUPER WHITE 2,040
SUPER WHITE 2,040 ,2MQ
PLATINUM WHITE PEARL MC.,089 ,2VP
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
SILVER ME.,1L0
SILVER ME.,1L0 ,2VU
PRECIOUS SILVER,2MR
BLACK MC.,209
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
SULFUR ME.,2YT
DK. TEAL M.M.,2YB ,785
DK. TEAL M.M.,785
DEEP AMETHYST M.M.,9AH
DEEP AMETHYST M.M.,2XE ,9AH
69218ACOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040 ,2MQ
SMART ENTRY-WITH,SUPER WHITE 2,040
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2VP
SMART ENTRY-WITH,PLATINUM WHITE PEARL MC.,089
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,PLATINUM WHITE PEARLMC.,089
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
SMART ENTRY-WITH,GRAY ME.,1G3
ASH GRAY ME.,2VF
SILVER ME.,1L0 ,2VU
SMART ENTRY-WITH,SILVER ME.,1L0
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,SILVER ME.,1L0
PRECIOUS SILVER,2MR
SMART ENTRY-WITH,BLACK MC.,209
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,BLACK MC.,209
BLACK MC.,209
EMOTIONAL RED 2,2TB ,3U5
SMART ENTRY-WITH,EMOTIONAL RED 2,3U5
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,EMOTIONAL RED 2,3U5
SULFUR ME.,2YT
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,DK. TEAL M.M.,785
SMART ENTRY-WITH,DK. TEAL M.M.,785
DK. TEAL M.M.,2YB ,785
SMART ENTRY-WITH,DEEP AMETHYST M.M.,9AH
DEEP AMETHYST M.M.,2XE ,9AH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,DEEP AMETHYST M.M.,9AH
SMART ENTRY-WITH,DEEP AMETHYST M.M.,2XE ,9AH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SMART ENTRY-WITH,DEEP AMETHYST M.M.,2XE ,9AH
SUPER WHITE 2,040
SUPER WHITE 2,040 ,2MQ
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2VP
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
SILVER ME.,1L0
SILVER ME.,1L0 ,2VU
PRECIOUS SILVER,2MR
BLACK MC.,209
EMOTIONAL RED 2,2TB ,3U5
EMOTIONAL RED 2,3U5
SULFUR ME.,2YT
DK. TEAL M.M.,785
DK. TEAL M.M.,2YB ,785
DEEP AMETHYST M.M.,2XE ,9AH
DEEP AMETHYST M.M.,9AH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
9010506344
main90105-06344
9014860083
main90148-60083
90148W0004
main90148-W0004
9018905003
main90189-05003
9356755020
main93567-55020
25 parts on this diagram · 1 diagram in section
