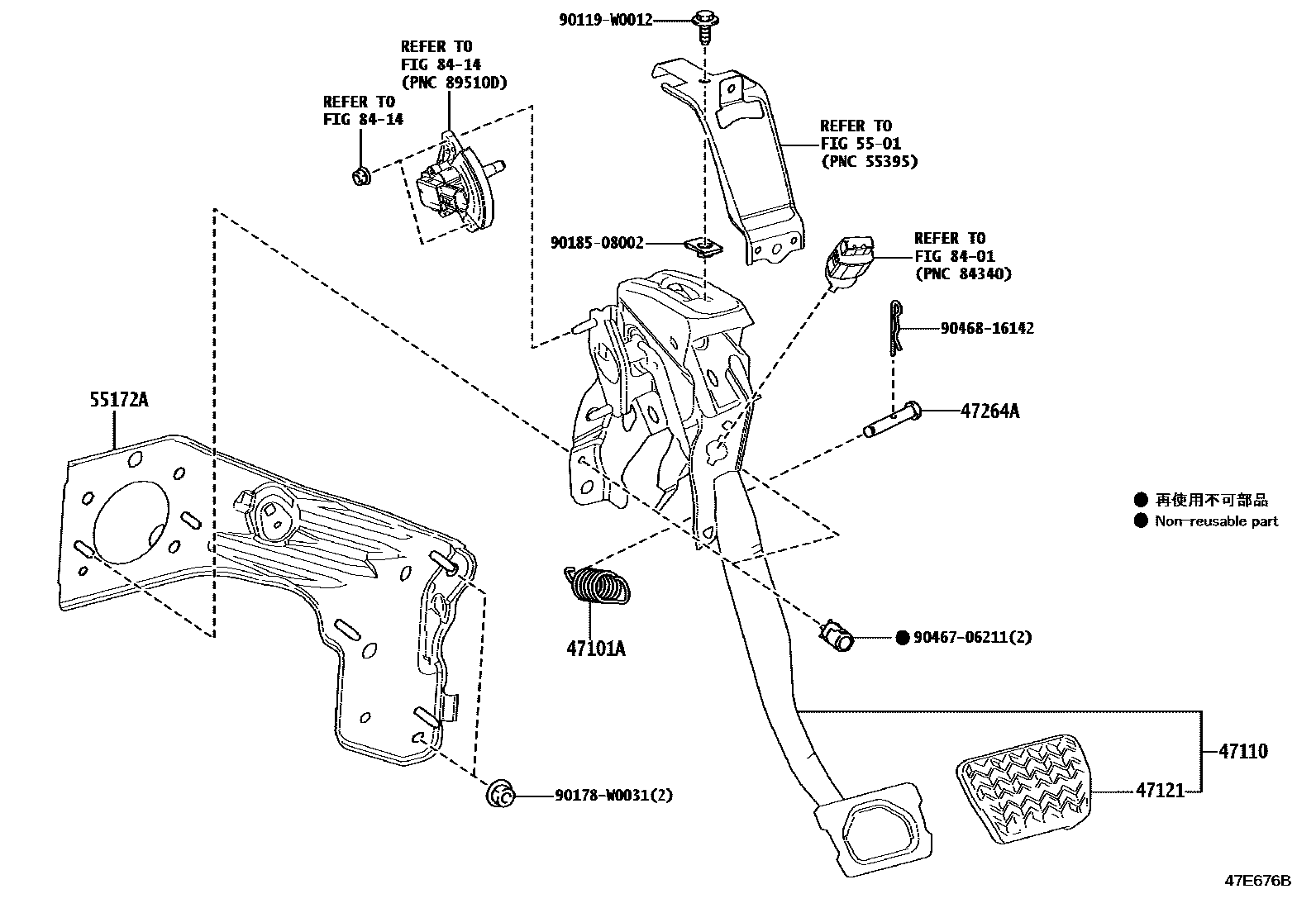

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iMAXH20,ZYX20202310

main90507-17005iMAXH21,25202310

47110SUPPORT ASSY, BRAKE PEDAL

main47110-F4180iMAXH20,ZYX20..LHD202310

main47110-F4190iMAXH20,ZYX20..RHD202310

main47110-F4200iMAXH21,25..LHD202310

main47110-F4210iMAXH21,25..RHD202310

47121PAD, BRAKE PEDAL

main47121-F4070iMAXH2#,ZYX20202310

47264APIN(FOR PUSH ROD)

main90249-08221iMAXH2#,ZYX20202310

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4011iMAXH2#,ZYX20..LHD202310

main55172-F4021iMAXH2#,ZYX20..RHD202310

8401

8414

90119W0012

main90119-W0012

90178W0031

main90178-W0031

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

13 parts on this diagram · 2 diagrams in section
