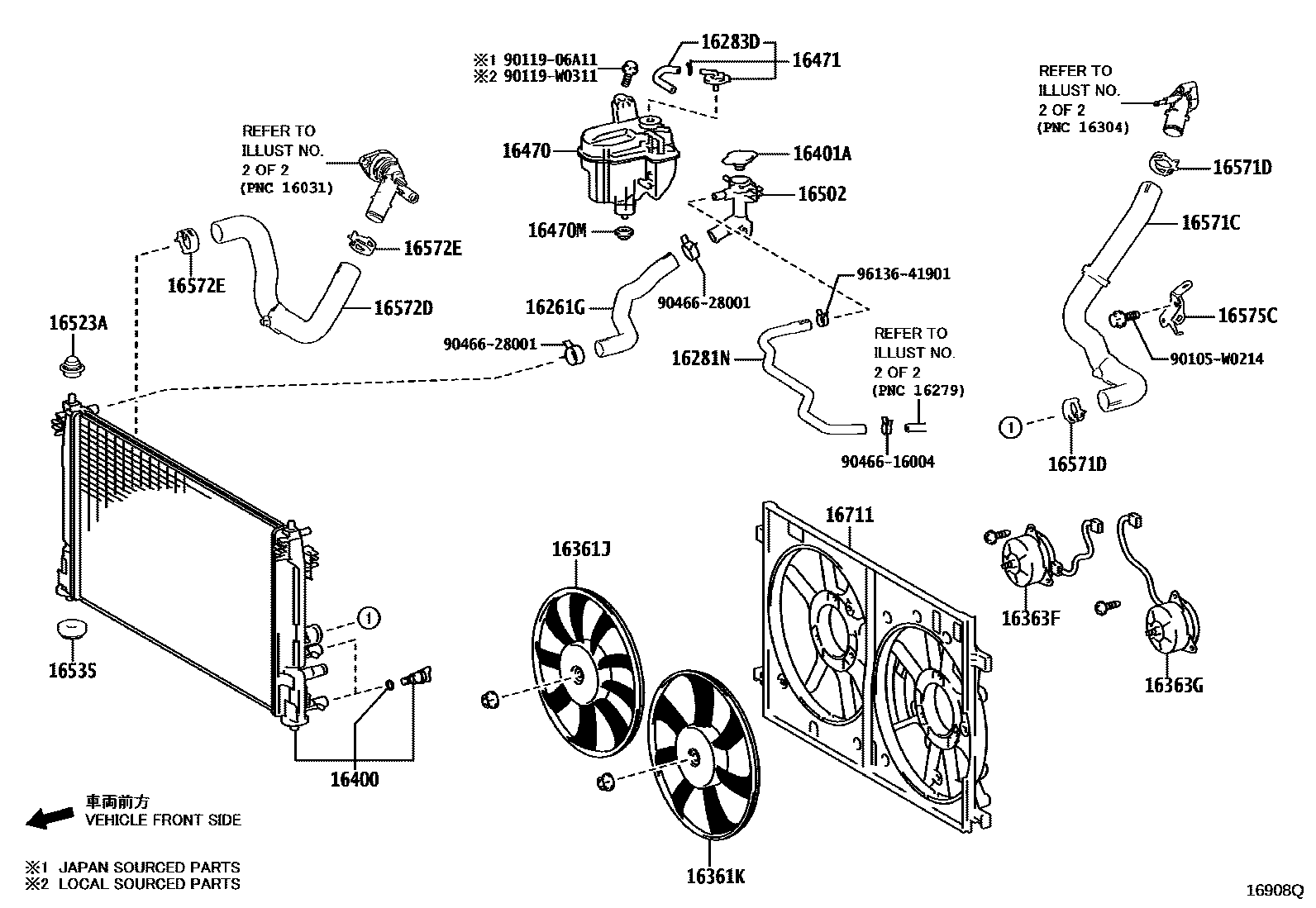

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-0T290i2ZR..ZYX20202310

(L)

main16261-37160i2ZR..ZYX20202310

(J)

16261GHOSE, WATER BY-PASS, NO.1

main16261-0T460i2ZR..ZYX20; M20..MAXH20,25202310

main16261-F2270iM20..MAXH21202401

16281HOSE, WATER BY-PASS, NO.4

main16281-0T320i2ZR..ZYX20202310-202311

main16281-0T380i2ZR..ZYX20202311

main16281-F2110iM20..MAXH2#202310

16281NHOSE, WATER BY-PASS, NO.4

main16281-0T330i2ZR..ZYX20202310

(L)

main16281-37191i2ZR..ZYX20202310

(J)

main16281-F2080iM20..MAXH20,25202310

main16281-F2180iM20..MAXH21202401

16283HOSE, WATER BY-PASS, NO.6

main16283-0T060i2ZR..ZYX20202310

(L)

main16283-37021i2ZR..ZYX20202310

(J)

main16283-F2040iM20..MAXH2#202310

16283DHOSE, WATER BY-PASS, NO.6

main16283-0T080i2ZR..ZYX20; M20..MAXH2#202310

16361FAN

main16361-F2280iM20..MAXH21202401

16361JFAN, RH

main16361-0T190i2ZR..ZYX20202310

main16361-F2270iM20..MAXH20,25202310

16361KFAN, LH

main16361-0T180i2ZR..ZYX20202310

main16361-F2260iM20..MAXH20,25202310

16363MOTOR, COOLING FAN

main16363-25020iM20..MAXH21202401

16363FMOTOR, COOLING FAN, RH

main16363-24130iM20..MAXH20,25202310

main16363-24160i2ZR..ZYX20202310

16363GMOTOR, COOLING FAN, LH

main16363-24140iM20..MAXH20,25202310

main16363-24170i2ZR..ZYX20202310

16400RADIATOR ASSY

main16400-0T600i2ZR..ZYX20; M20..MAXH2#202310

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-36030i2ZR..ZYX20; M20..MAXH2#202310

16470TANK ASSY, RADIATOR RESERVE

main16470-0T090i2ZR..ZYX20; M20..MAXH2#202310

16470MGROMMET

main90480-18010i2ZR..ZYX20; M20..MAXH2#202310

16471CAP SUB-ASSY, RESERVE TANK

main16405-0T070i2ZR..ZYX20; M20..MAXH2#202310

16502FILLER SUB-ASSY, WATER

main16502-0T030i2ZR..ZYX20; M20..MAXH2#202310

16523ACUSHION, RADIATOR SUPPORT

main16523-0T050×2i2ZR..ZYX20; M20..MAXH2#202310

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i2ZR..ZYX20; M20..MAXH2#202310

16571CHOSE, RADIATOR, NO.1

main16571-0T470i2ZR..ZYX20202310

main16571-F2160iM20..MAXH20,25202310

main16571-F2180iM20..MAXH21202401

16571DCLIP, RADIATOR HOSE, NO.1

main90466-W0016×2iM20..MAXH2#202310

main96136-43901i2ZR..ZYX20202310

16572DHOSE, RADIATOR, NO.2

main16572-0T400i2ZR..ZYX20202310

main16572-F2140iM20..MAXH20,25202310

main16572-F2160iM20..MAXH21202401

16572ECLIP, RADIATOR HOSE, NO.2

main90466-W0016×2i2ZR..ZYX20; M20..MAXH2#202310

16575CBRACKET, WATER HOSE CLAMP, NO.1

main16575-F2320iM20..MAXH2#202310

16711SHROUD, FAN

main16711-0T330i2ZR..ZYX20202310

main16711-F2220iM20..MAXH20,25202310

main16711-F2230iM20..MAXH21202401

90105W0214

main90105-W0214

9011906A11

main90119-06A11

90119W0311

main90119-W0311

9046616004

main90466-16004

9046628001

main90466-28001

9613641901

main96136-41901

32 parts on this diagram · 5 diagrams in section
