FRONT DOOR LOCK & HANDLE
6701
6712
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE
INDIA SPEC
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
UKRAINE SPEC&SMART ENTRY-2 BUTTON TYPE
UKRAINE SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
AZERBAIJAN, ARMENIA, GEORGIA SPEC
AZERBAIJAN, ARMENIA, GEORGIA SPEC&SMART ENTRY-2 BUTTON TYPE
AZERBAIJAN, ARMENIA, GEORGIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
TAIWAN SPEC&SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON)
TAIWAN SPEC&SMART ENTRY-4 BUTTON TYPE
UKRAINE SPEC
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE
INDIA SPEC
RUSSIA SPEC
NORWAY, SWEDEN, FINLAND, DENMARK SPEC
NORWAY, SWEDEN, FINLAND, DENMARK SPEC&SMART ENTRY-2 BUTTON TYPE
NORWAY, SWEDEN, FINLAND, DENMARK SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
RUSSIA SPEC&SMART ENTRY-2 BUTTON TYPE
RUSSIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
BELARUS, KAZAKHSTAN SPEC
BELARUS, KAZAKHSTAN SPEC&SMART ENTRY-2 BUTTON TYPE
BELARUS, KAZAKHSTAN SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM2#,3#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
WHITE OCHRE,TRIM00,01,02,03
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
RICH CREAM,TRIM7#
BLACK,TRIM2#,3#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,5#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,3#
BLACK,TRIM04,07,08,09,2#,3#,4#,6#,9#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
INDIA SPEC,SONIC QUARTZ,085
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC QUARTZ,085
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,SONIC QUARTZ,085
SONIC QUARTZ,085
WHITE NOVA GF.,083
INDIA SPEC,MERCURY GRAY MC.,1H9
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,MERCURY GRAY MC.,1H9
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9
INDIA SPEC,PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),PLATINUM SILVER ME.,1J4
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC TITANIUM,1J7
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,SONIC TITANIUM,1J7
INDIA SPEC,SONIC TITANIUM,1J7
INDIA SPEC,BLACK,212
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,BLACK,212
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLACK,212
BLACK,212
INDIA SPEC,STARLIGHT BLACK GF.,217
STARLIGHT BLACK GF.,217
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,STARLIGHT BLACK GF.,217
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),STARLIGHT BLACK GF.,217
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
INDIA SPEC,GRAPHITE BLACK GF.,223
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),GRAPHITE BLACK GF.,223
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,RED MC.CS.,3R1
INDIA SPEC,RED MC.CS.,3R1
RED MC.CS.,3R1
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RED MC.CS.,3R1
FIRE AGATE M.M.,4V3
INDIA SPEC,FIRE AGATE M.M.,4V3
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,FIRE AGATE M.M.,4V3
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),FIRE AGATE M.M.,4V3
AMBER CS.,4X2
INDIA SPEC,AMBER CS.,4X2
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,AMBER CS.,4X2
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,BLUE ME.,8U1
INDIA SPEC,BLUE ME.,8U1
BLUE ME.,8U1
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLUE ME.,8U1
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,METEOR BLUE M.M.,8W3
METEOR BLUE M.M.,8W3
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),METEOR BLUE M.M.,8W3
INDIA SPEC,METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,SPARKLING METEOR ME.,8X9
INDIA SPEC,SPARKLING METEOR ME.,8X9
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE
INDIA SPEC
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
INDIA SPEC,SONIC QUARTZ,085
SONIC QUARTZ,085
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC QUARTZ,085
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,SONIC QUARTZ,085
WHITE NOVA GF.,083
INDIA SPEC,MERCURY GRAY MC.,1H9
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,MERCURY GRAY MC.,1H9
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4
INDIA SPEC,PLATINUM SILVER ME.,1J4
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SONIC TITANIUM,1J7
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,SONIC TITANIUM,1J7
INDIA SPEC,SONIC TITANIUM,1J7
BLACK,212
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLACK,212
INDIA SPEC,BLACK,212
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,BLACK,212
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,STARLIGHT BLACK GF.,217
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),STARLIGHT BLACK GF.,217
INDIA SPEC,STARLIGHT BLACK GF.,217
STARLIGHT BLACK GF.,217
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),GRAPHITE BLACK GF.,223
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
INDIA SPEC,GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
INDIA SPEC,RED MC.CS.,3R1
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,RED MC.CS.,3R1
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RED MC.CS.,3R1
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),FIRE AGATE M.M.,4V3
FIRE AGATE M.M.,4V3
INDIA SPEC,FIRE AGATE M.M.,4V3
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,FIRE AGATE M.M.,4V3
AMBER CS.,4X2
INDIA SPEC,AMBER CS.,4X2
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,AMBER CS.,4X2
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),AMBER CS.,4X2
LAVA ORANGE CS.,4W7
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),BLUE ME.,8U1
BLUE ME.,8U1
INDIA SPEC,BLUE ME.,8U1
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,BLUE ME.,8U1
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),METEOR BLUE M.M.,8W3
INDIA SPEC,METEOR BLUE M.M.,8W3
METEOR BLUE M.M.,8W3
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,METEOR BLUE M.M.,8W3
SPARKLING METEOR ME.,8X9
INDIA SPEC,SPARKLING METEOR ME.,8X9
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,SPARKLING METEOR ME.,8X9
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),SPARKLING METEOR ME.,8X9
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RH
RH
INDIA SPEC,RH
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
INDIA SPEC,RH
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE,RH
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON),RH
RH
LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
INDIA SPEC
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE
INDIA SPEC
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
INDIA SPEC&SMART ENTRY-2 BUTTON TYPE
INDIA SPEC
INDIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020

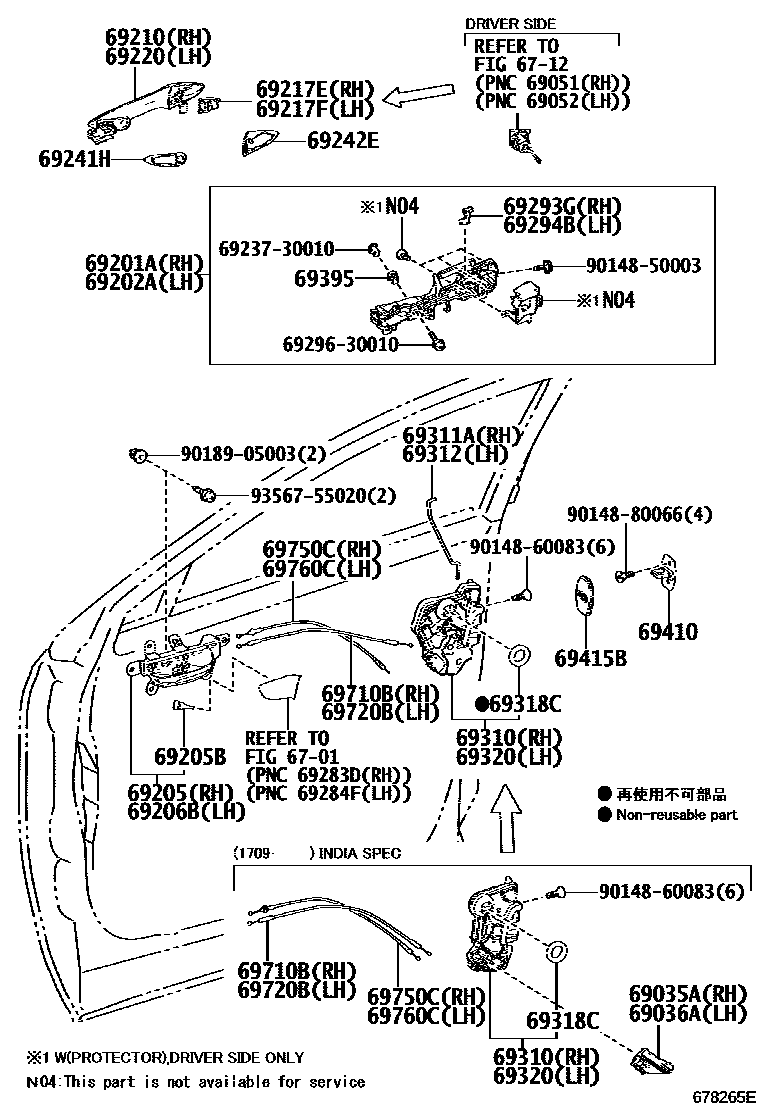

36 parts on this diagram · 1 diagram in section
