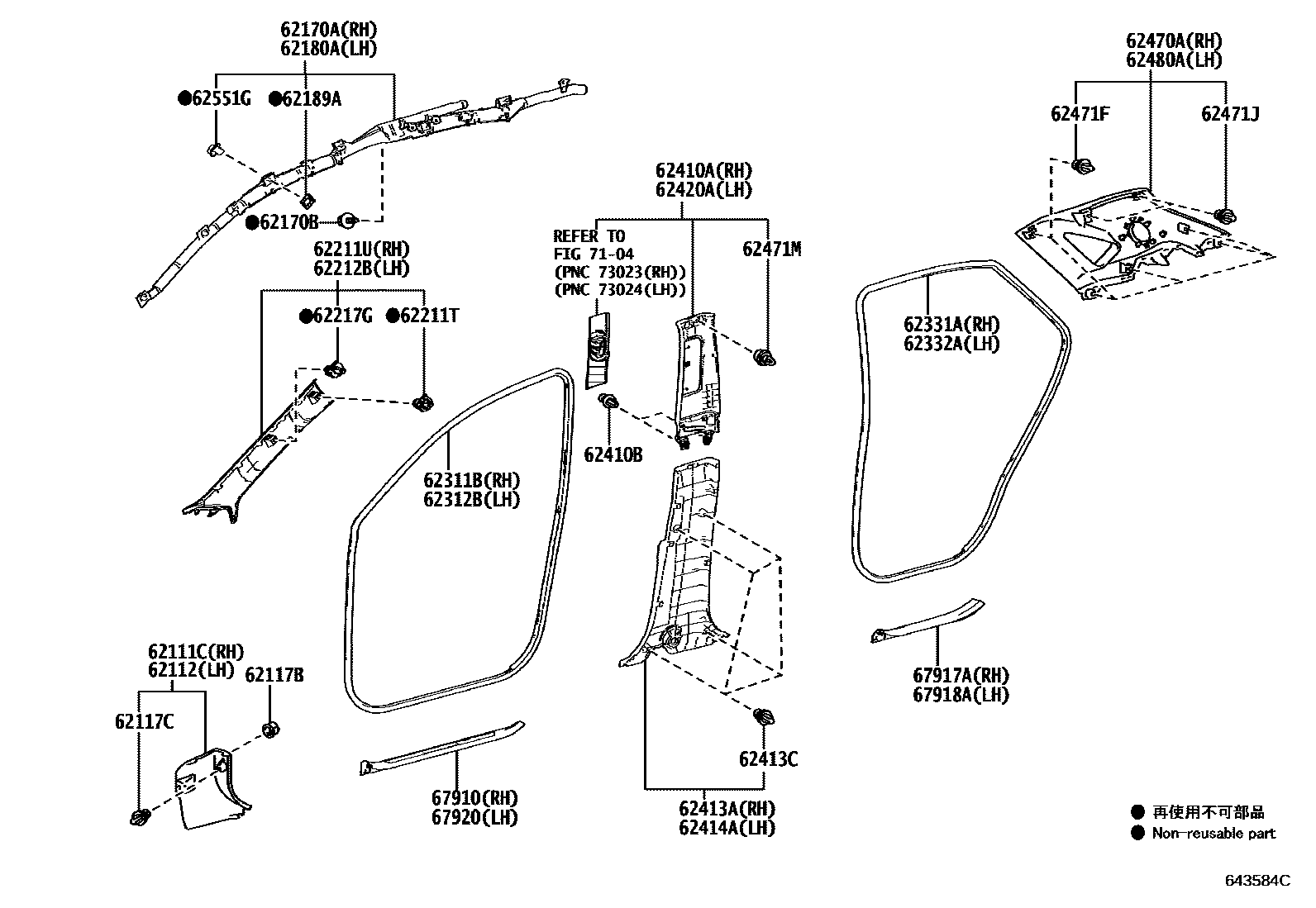

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,5#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
ECRU,TRIM2#,3#
ECRU,TRIM1#,2#,3#
ECRU,TRIM0#,1#,2#,3#,4#,5#
ECRU,TRIM0#,1#,2#,3#,5#
BLACK,TRIM9#
BLACK,TRIM38
BLACK,TRIM04,05,06,25,26,27,3#,5#
62212BGARNISH ASSY, FRONT PILLAR, LH
ECRU,TRIM2#,3#
ECRU,TRIM1#,2#,3#
ECRU,TRIM0#,1#,2#,3#,4#,5#
ECRU,TRIM0#,1#,2#,3#,5#
ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM04,05,06,25,26,27,3#,5#
BLACK,TRIM38
BLACK,TRIM9#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
ECRU,TRIM1#,2#,3#
ECRU,TRIM0#,1#,2#,3#,5#
ECRU,TRIM0#,1#,2#,3#,4#,5#
ECRU,TRIM2#,3#
ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM05,06,26,27,36,37,38,5#
BLACK,TRIM38
BLACK,TRIM9#
62410BCLIP
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM2#,3#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
62420AGARNISH ASSY, CENTER PILLER, LH
ECRU,TRIM1#,2#,3#
ECRU,TRIM0#,1#,2#,3#,5#
ECRU,TRIM0#,1#,2#,3#,4#,5#
ECRU,TRIM2#,3#
ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM05,06,26,27,36,37,38,5#
BLACK,TRIM9#
BLACK,TRIM38
62470AGARNISH ASSY, ROOF SIDE, INNER RH
ECRU,TRIM1#,2#,3#
ECRU,TRIM0#,1#,2#,3#,5#
ECRU,TRIM0#,1#,2#,3#,4#,5#
ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
ECRU,TRIM2#,3#
BLACK,TRIM04,05,06,25,26,27,3#,5#
BLACK,TRIM9#
BLACK,TRIM38
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62471JCLIP (FOR ROOF SIDE GARNISH)
62471MCLIP
62480AGARNISH ASSY, ROOF SIDE, INNER LH
ECRU,TRIM1#,2#,3#
ECRU,TRIM0#,1#,2#,3#,5#
ECRU,TRIM0#,1#,2#,3#,4#,5#
ECRU,TRIM2#,3#
ECRU,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM04,05,06,25,26,27,3#,5#
BLACK,TRIM9#
BLACK,TRIM38
62551GCLIP
67910PLATE ASSY, DOOR SCUFF, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
67920PLATE ASSY, DOOR SCUFF, LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
7104
33 parts on this diagram · 1 diagram in section
