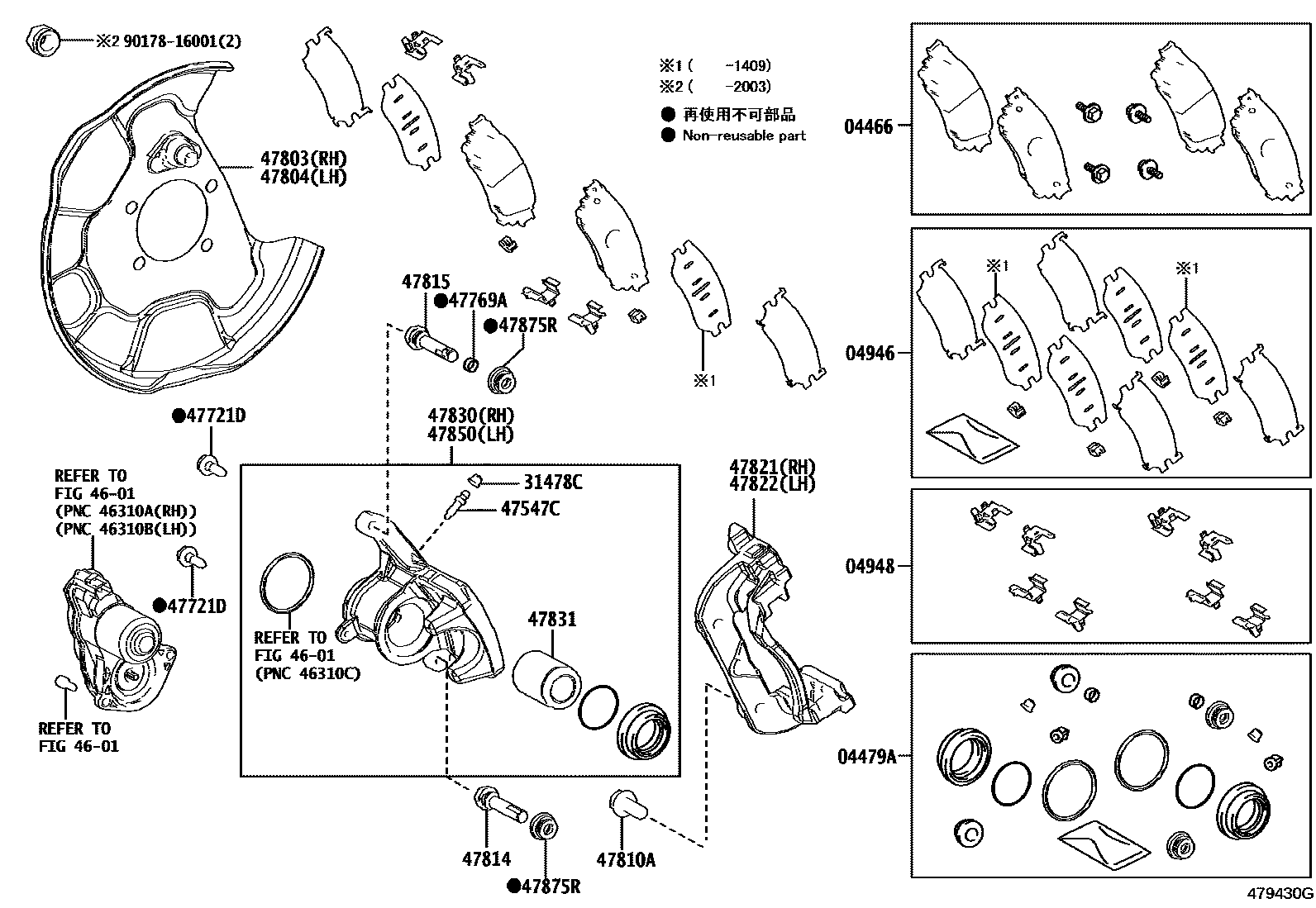

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-78030iAGZ1#,AYZ1#,ZGZ1#201407-201709

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-78010iAGZ1#,AYZ1#,ZGZ1#201407-201705

sub04479-78011

main04479-78011iAGZ1#,AYZ1#,ZGZ1#201705-201709

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-78010iAYZ1#201407-201409

sub04946-78030

main04946-78020iAGZ1#,AYZ1#,ZGZ1#201409-201511

sub04946-78030

main04946-78030iAGZ1#,AYZ1#,ZGZ1#201512-201709

04948FITTING KIT, DISC BRAKE, REAR

main04948-58010iAGZ1#,AYZ1#,ZGZ1#201512-201709

main04948-78010iAGZ1#,AYZ1#,ZGZ1#201407-201511

sub04948-58010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAGZ1#,AYZ1#,ZGZ1#201407-201709

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAGZ1#,AYZ1#,ZGZ1#201407-201709

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAGZ1#,AYZ1#,ZGZ1#201407-201709

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAGZ1#,AYZ1#,ZGZ1#201407-201709

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-78010iAGZ1#,AYZ1#,ZGZ1#201407-202002

sub47881-78011

main47881-78011iAGZ1#,AYZ1#,ZGZ1#202003

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-78010iAGZ1#,AYZ1#,ZGZ1#201407-202002

sub47882-78011

main47882-78011iAGZ1#,AYZ1#,ZGZ1#202003

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12208iAGZ1#,AYZ1#,ZGZ1#201407-201709

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iAGZ1#,AYZ1#,ZGZ1#201611-201709

main47821-78010iAGZ1#,AYZ1#,ZGZ1#201407-201611

sub47821-10030

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iAGZ1#,AYZ1#,ZGZ1#201611-201709

main47822-78010iAGZ1#,AYZ1#,ZGZ1#201407-201611

sub47822-10030

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

47831PISTON, REAR DISC BRAKE

main47831-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-78010iAGZ1#,AYZ1#,ZGZ1#201407-201709

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52190iAGZ1#,AYZ1#,ZGZ1#201407-201705

main47875-33270iAGZ1#,AYZ1#,ZGZ1#201705-201709

9017816001

main90178-16001

21 parts on this diagram · 1 diagram in section
