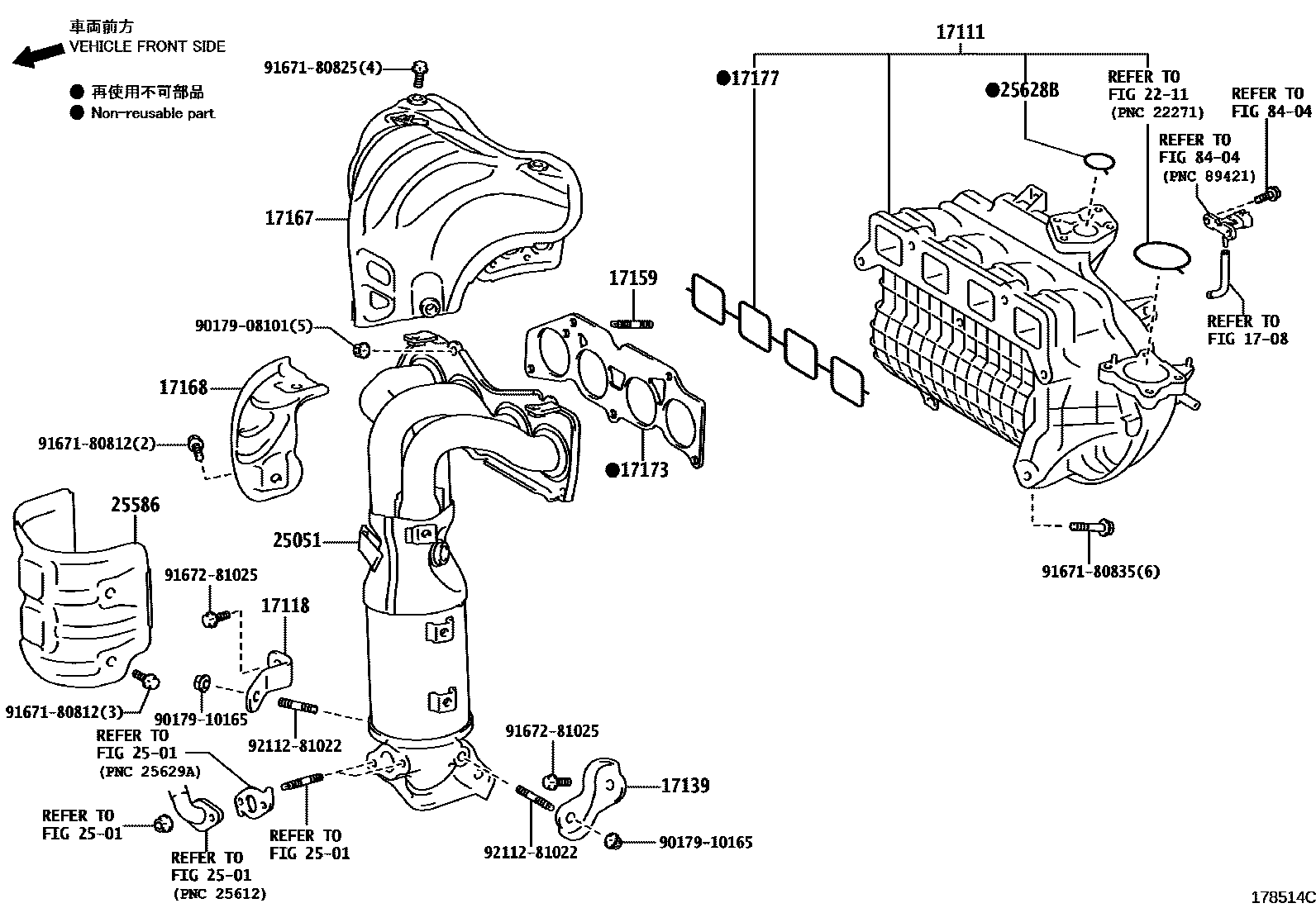

MANIFOLD
1708
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17139STAY, MANIFOLD, NO.2
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
2501
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/36250/Y
*114=TOYOTA/36410/Y
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25628BGASKET, EGR INLET
8404
9017908101
main90179-08101
9017910165
main90179-10165
9167180812
main91671-80812
9167180825
main91671-80825
9167180835
main91671-80835
9167281025
main91672-81025
9211281022
main92112-81022
22 parts on this diagram · 5 diagrams in section
