Toyota LEXUS NX SERIES — OIL FILTER

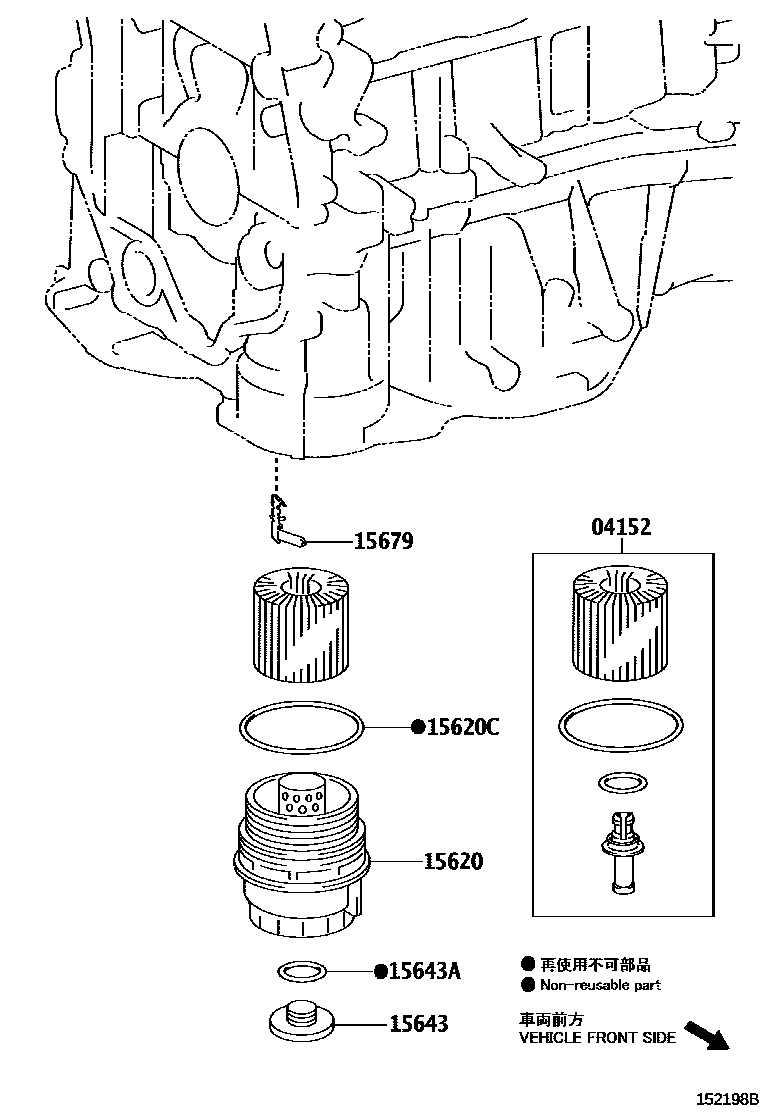

Parts diagram

04152ELEMENT KIT, OIL FILTER

15620CAP ASSY, OIL FILTER

15620CGASKET(FOR OIL FILTER CAP)

15643PLUG, OIL FILTER DRAIN

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

15679CLIP, OIL FILTER BRACKET

6 parts on this diagram · 2 diagrams in section

OIL FILTER for Toyota LEXUS NX SERIES

This section contains 13 genuine Toyota parts for the OIL FILTER system of the Toyota LEXUS NX SERIES. Key components include: ELEMENT KIT, OIL FILTER, UNION(FOR OIL FILTER), FILTER SUB-ASSY, OIL, BRACKET SUB-ASSY, OIL FILTER, PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET).
