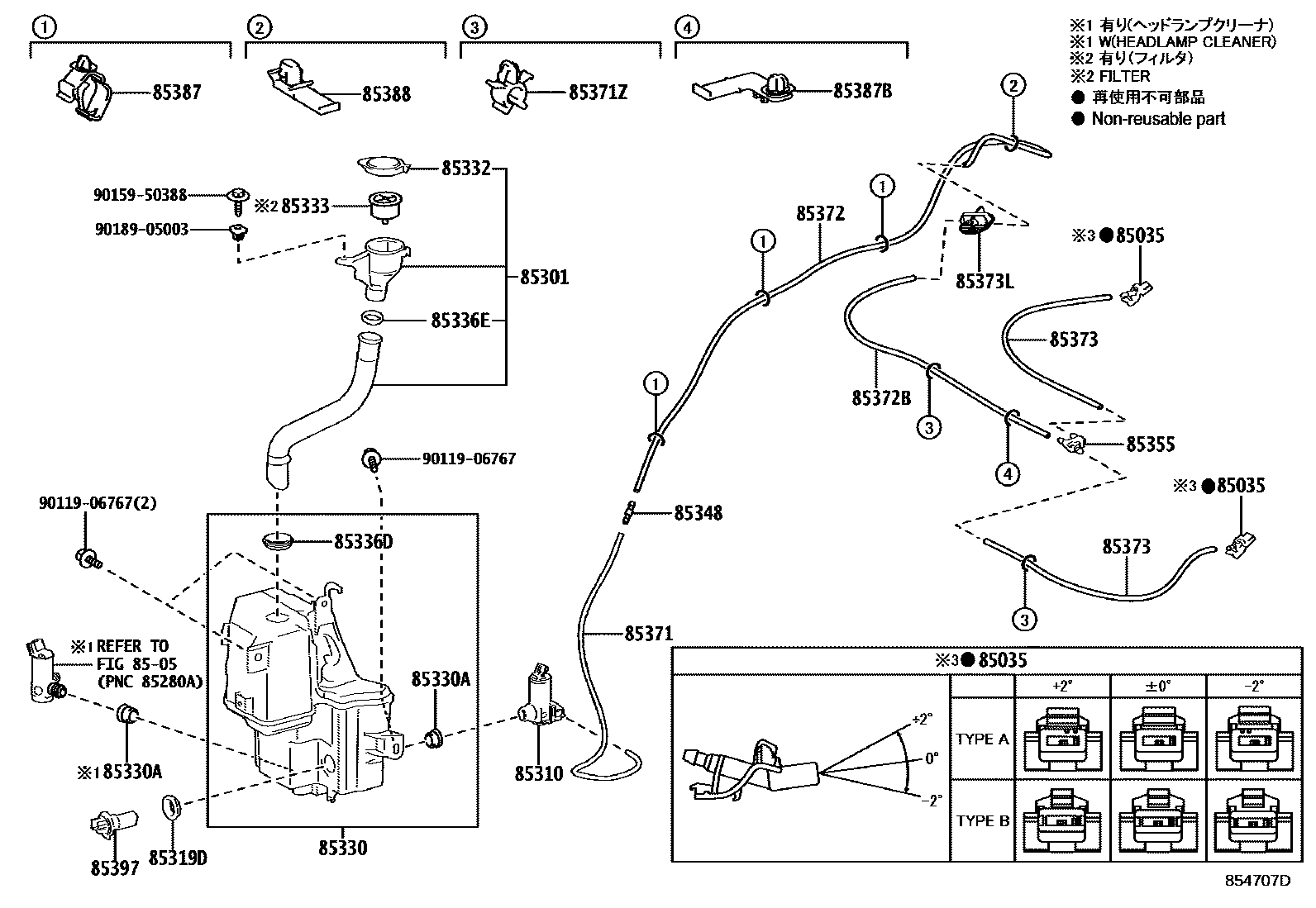

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0,TYPE A
ANGLE -2,TYPE A
ANGLE +2,TYPE A
ANGLE 0,TYPE B
ANGLE -2,TYPE B
ANGLE +2,TYPE B
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85355-78040supersedes 85315-78060iAAZH2#,TAZA25..LHD..(CHI,GEN); MAZA20; TAZA25..EUR;TAZA25..RHD; TAZA25..GCC;AAZH26..RHD;AAZH25..EUR,GCC;AAZH25..RHD..GEN;AAZH26..LHD..EUR;AAZH20,MAZA20..EUR,GEN; TAZA25..LHD..GEN202403
HEADLAMP CLEANER-WITH; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC; MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); RUSSIA SPEC&HEADLAMP CLEANER-WITH
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089iAAZA2#; AAZA2#..LHD..(CHI,GEN); AAZA20..CHI; AAZA25..EUR; AAZA25..LHD..GEN; AAZA25..RHD;AAZA25..EUR;AAZA20..EUR,GEN202403-202506
ARMENIA SPEC&HEADLAMP CLEANER-WITH; AZB,GRZ SPEC&HEADLAMP CLEANER-WITH; BELARUS SPEC&HEADLAMP CLEANER-WITH; CHILE SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC-COLD AREA SPEC; COLD AREA SPEC-COLD AREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); HEADLAMP CLEANER-WITH; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); KAZAKHSTAN SPEC&HEADLAMP CLEANER-WITH; KYRGYZSTAN SPEC&HEADLAMP CLEANER-WITH; MOLDOVA SPEC&HEADLAMP CLEANER-WITH; MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC; MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); UKRAINE SPEC&HEADLAMP CLEANER-WITH
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
HEADLAMP CLEANER-WITH
85336DPACKING, WINDSHIELD WASHER JAR
main85336-30160iAAZH2#,MAZA20;TAZA25..LHD..(GCC,GEN); AAZH2#,TAZA25..LHD..(CHI,GEN); MAZA20; TAZA25..EUR;TAZA25..RHD; TAZA25..GCC;AAZH26..RHD;AAZH25..EUR,GCC;AAZH25..RHD..GEN;AAZH26..LHD..EUR;AAZH20,MAZA20..EUR,GEN; TAZA25..LHD..GEN202403
HEADLAMP CLEANER-WITH; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC; MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); RUSSIA SPEC&HEADLAMP CLEANER-WITH
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080iAAZA2#; AAZA2#..LHD..(CHI,GEN); AAZA20..CHI; AAZA25..EUR; AAZA25..LHD..GEN; AAZA25..RHD;AAZA25..EUR;AAZA20..EUR,GEN202403-202506
L=1450(*H,L=330); L=1450(*H,L=330),ARMENIA SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=330),AZB,GRZ SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=330),BELARUS SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=330),CHILE SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=330),COLD AREA SPEC-COLD AREA SPEC; L=1450(*H,L=330),COLD AREA SPEC-COLD AREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) &WITH(*AHS); L=1450(*H,L=330),HEADLAMP CLEANER-WITH; L=1450(*H,L=330),HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS); L=1450(*H,L=330),KAZAKHSTAN SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=330),KYRGYZSTAN SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=330),MOLDOVA SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=330),MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC; L=1450(*H,L=330),MONGOL SPEC&COLD AREA SPEC-COLD AREA SPEC&HEADLAMP-LED(TRINOCULARFULL LED) & WITH(*AHS); L=1450(*H,L=330),UKRAINE SPEC&HEADLAMP CLEANER-WITH
85371ZCLAMP, WASHER HOSE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1290)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=760)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=490)
85373LGROMMET, WASHER
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
9011906767
main90119-06767
9015950388
main90159-50388
9018905003
main90189-05003
26 parts on this diagram · 1 diagram in section
