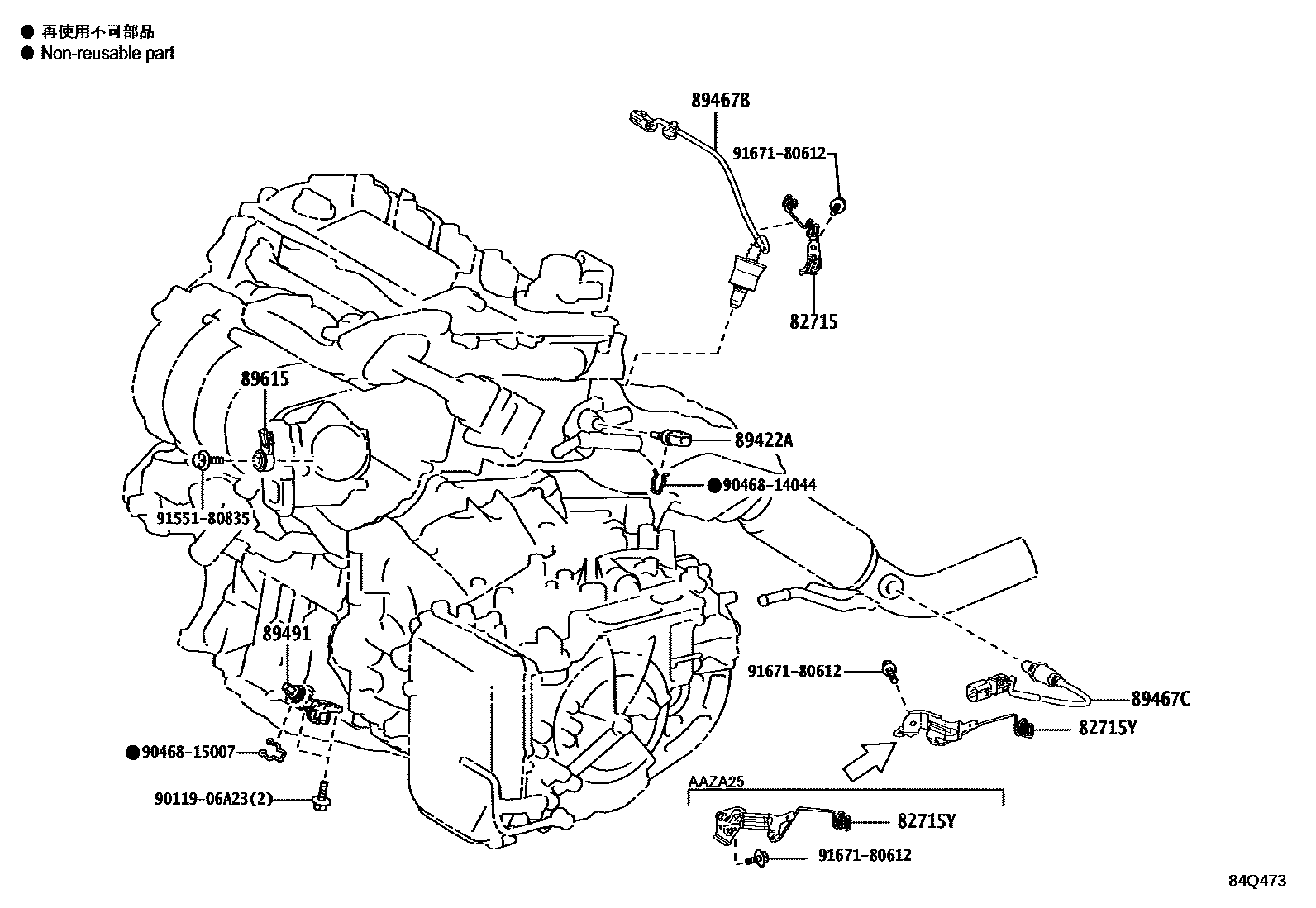

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0009 1ENGINE & TRANSMISSION 0010 1ENGINE & TRANSMISSION 0011 1ENGINE & TRANSMISSION 0012 1ENGINE ROOM 0013 1ENGINE ROOM RELAY BLOCK 0014 1ENGINE ROOM RELAY BLOCK 0015 1ENGINE ROOM RELAY BLOCK 0016 1ENGINE ROOM RELAY BLOCK 0017 1COWL 0018 1COWL 0019 1INSTRUMENT PANEL 0020 1INSTRUMENT PANEL 0021 1CONSOLE BOX 0022 1CONSOLE BOX 0023 1STEERING 0024 1STEERING 0025 1SEAT 0026 1SEAT 0027 1DOOR & ROOF 0028 1FLOOR & BACK DOOR 0029 1FLOOR & BACK DOOR 0030 1FLOOR RELAY BLOCK 0031 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-12X50iMAZA20202201-202403

main82715-33K11iAAZA2#..EUR,GEN202111-202506

main82715-33K11iAAZH26..LHD202111-202303

TAIWAN SPEC

main82715-33K11iAAZH26..LHD..EUR202403

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6C,WITH(ON BOARD DIAGNOSIS)

main82715-33K11iAAZH26..LHD..EUR202403

TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6, WITH(ON BOARD DIAGNOSIS)

main82715-33K11iAAZH26..LHD..EUR202403

AZB,GRZ SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS)

main82715-33K11iAAZH26..LHD..EUR202403

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS)

main82715-33V10iAAZH25..GCC202111-202506

main8946A-78020iTAZA25..EUR,GEN202111-202405

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-42K60iAAZH25..GCC202111-202506

main82715-42K70iAAZA25202111-202506

main8946A-78030iTAZA25..GCC202111-202405

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

89467BSENSOR, AIR FUEL RATIO

main89467-12280iMAZA20202201-202403

main89467-30130iAAZA20,AAZH21..CHI202303-202506

main89467-33290iAAZA20,AAZH21..CHI202111-202303

TAIWAN SPEC

main89467-33290iAAZA2#..EUR,GEN202111-202506

main89467-33290iAAZH26..GEN202403

UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS)

main89467-33290iAAZH26..GEN202403

AZB,GRZ SPEC&EXHAUST EMISSION CONTROL-EURO6D,WITH(ON BOARD DIAGNOSIS)

main89467-33290iAAZH26..GEN202403

TAIWAN SPEC&EXHAUST EMISSION CONTROL-TAIWAN6, WITH(ON BOARD DIAGNOSIS)

main89467-33290iAAZH26..GEN202403

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6C,WITH(ON BOARD DIAGNOSIS)

main89467-33310iAAZH26..EUR202111-202403

main89467-48380iAAZH20,25..CHI202303-202403

main89467-78040iTAZA25..GCC202111-202405

main89467-78070iAAZH25..GCC202111-202405

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAAZA20,AAZH20,25..CHI,GCC202111-202506

main89467-42190iAAZH21202111-202403

main89467-48360iAAZA20,AAZH20,21,25..CHI202303-202506

main89467-78050iTAZA25202111-202405

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202204

main89491-33052iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202205-202506

89615SENSOR, KNOCK CONTROL

main89615-20090iAAZA2#202111-202506

main89615-78010iTAZA25..EUR,GEN202111-202405

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180612

main91671-80612

12 parts on this diagram · 28 diagrams in section
