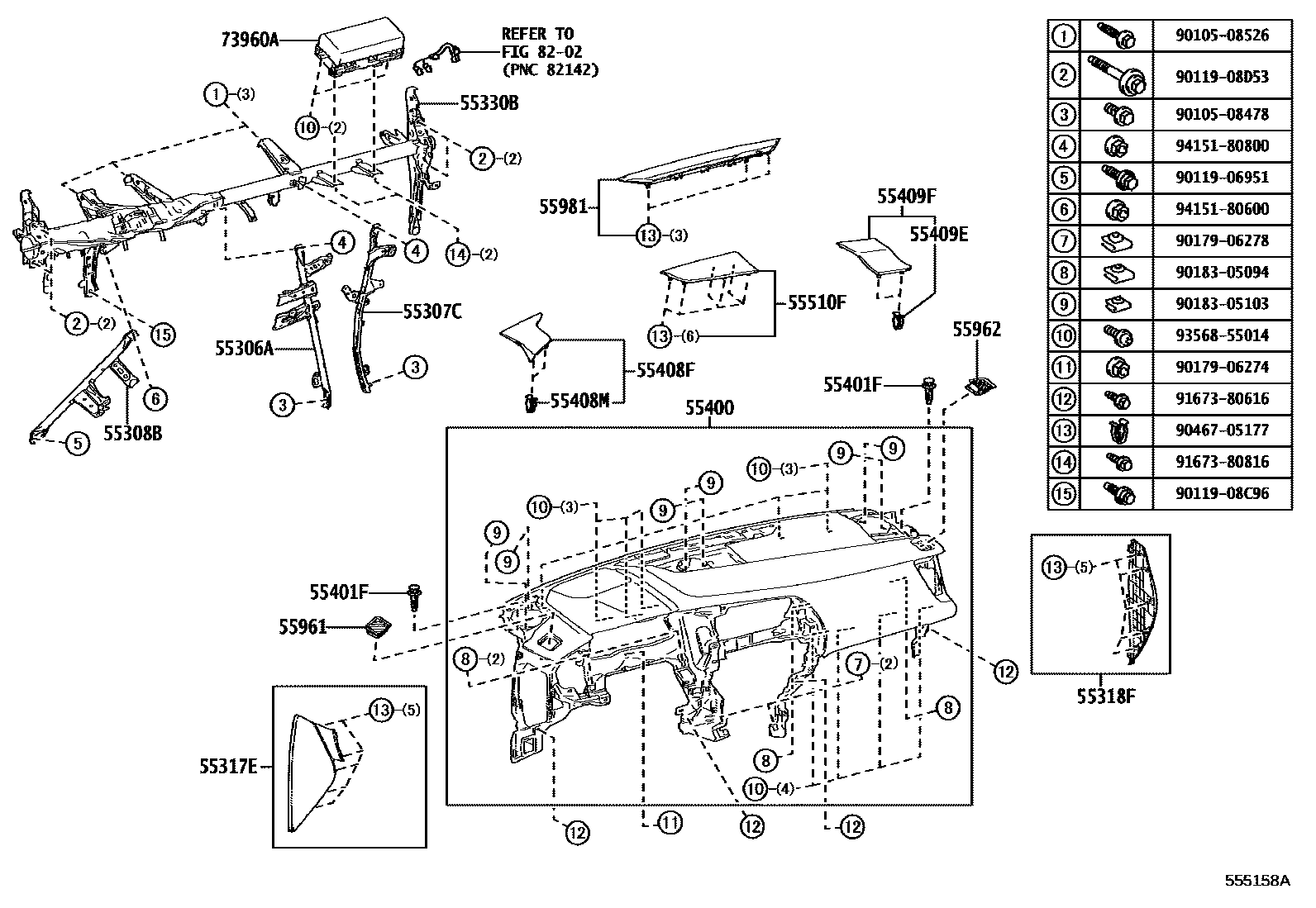

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55317EPANEL, INSTRUMENT SIDE, NO.1
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
55318FPANEL, INSTRUMENT SIDE, NO.2
main55318-78030-C0supersedes 55318-78040-C0iAAZH20,25,26..LHD..EUR; AAZH20,26,TAZA25..LHD..EUR; MAZA20;AAZH2#,TAZA25..LHD..(CHI,GCC,GEN)202403
BLACK,TRIM0#,2#,3#,4#; CHILE SPEC,BLACK,TRIM0#,2#,3#,4#; TAIWAN SPEC,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
main55318-78060-C0supersedes 55318-78050-C0iAAZH20,25,26..RHD..EUR; AAZH25,26,TAZA25..RHD..GEN202403
BLACK,TRIM0#,2#,3#,4#; SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,3#,4#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-78100supersedes 55330-78090iAAZH20..CHI; AAZH25..CHI; TAZA25..GCC;AAZH21,26..LHD;AAZH20,25..LHD..(EUR,GCC,GEN); TAZA25..LHD..(EUR,GEN)202403
"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK); "F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&INTERMITTENTWIPER-WITH(RAIN SENSOR); COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK); COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&INTERMITTENT WIPER-WITH(RAIN SENSOR); HEAD UP DISPLAY-WITH; OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK); PREMIUM PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK); PREMIUM PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&INTERMITTENT WIPER-WITH(RAIN SENSOR)
HEAD UP DISPLAY-WITH
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,2#,3#,4#
main55400-78020-C2supersedes 55400-78010-C2iAAZH20..CHI; AAZH25..CHI; TAZA25..GCC;AAZH21,26..LHD;AAZH20,25..LHD..(EUR,GCC,GEN); TAZA25..LHD..(EUR,GEN)202403
"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&INTERMITTENTWIPER-WITH(RAIN SENSOR),BLACK,TRIM0#,2#,3#,4#; "F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,3#,4#; COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&INTERMITTENT WIPER-WITH(RAIN SENSOR),BLACK,TRIM0#,2#,3#,4#; COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM0#,2#,3#,4#; HEAD UP DISPLAY-WITH,BLACK,TRIM0#,2#,3#,4#; OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM0#,2#,3#,4#; PREMIUM PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&INTERMITTENT WIPER-WITH(RAIN SENSOR),BLACK,TRIM0#,2#,3#,4#; PREMIUM PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#; HEAD UP DISPLAY-WITH,BLACK,TRIM0#,2#,3#,4#
55401FCLIP(FOR SAFETY PAD)
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
main55408-78110-C0iAAZA2#,AAZH20,25..LHD..(EUR,GEN); AAZH20,25..CHI;TAZA25..LHD..(EUR,GEN)202111-202403
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#; AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
AUDIO-*EMV & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
55408MCLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409ECLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
main55409-78100-C0iAAZA2#,AAZH20,25..LHD..(EUR,GEN); AAZH20,25..CHI;TAZA25..LHD..(EUR,GEN)202111-202403
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#; AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#; AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
55510FCOVER ASSY, SPEAKER OPENING, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
main55510-78110-C0iAAZA2#,AAZH20,25..LHD..(EUR,GEN); AAZH20,25..CHI;TAZA25..LHD..(EUR,GEN)202111-202403
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#; AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
AUDIO-*EMV & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202WIRING & CLAMP
9010508478
main90105-08478
9010508526
main90105-08526
9011906951
main90119-06951
9011908C96
main90119-08C96
9011908D53
main90119-08D53
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9018305103
main90183-05103
9046705177
main90467-05177
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
33 parts on this diagram · 10 diagrams in section
