Toyota LEXUS NX SERIES — EXHAUST PIPE

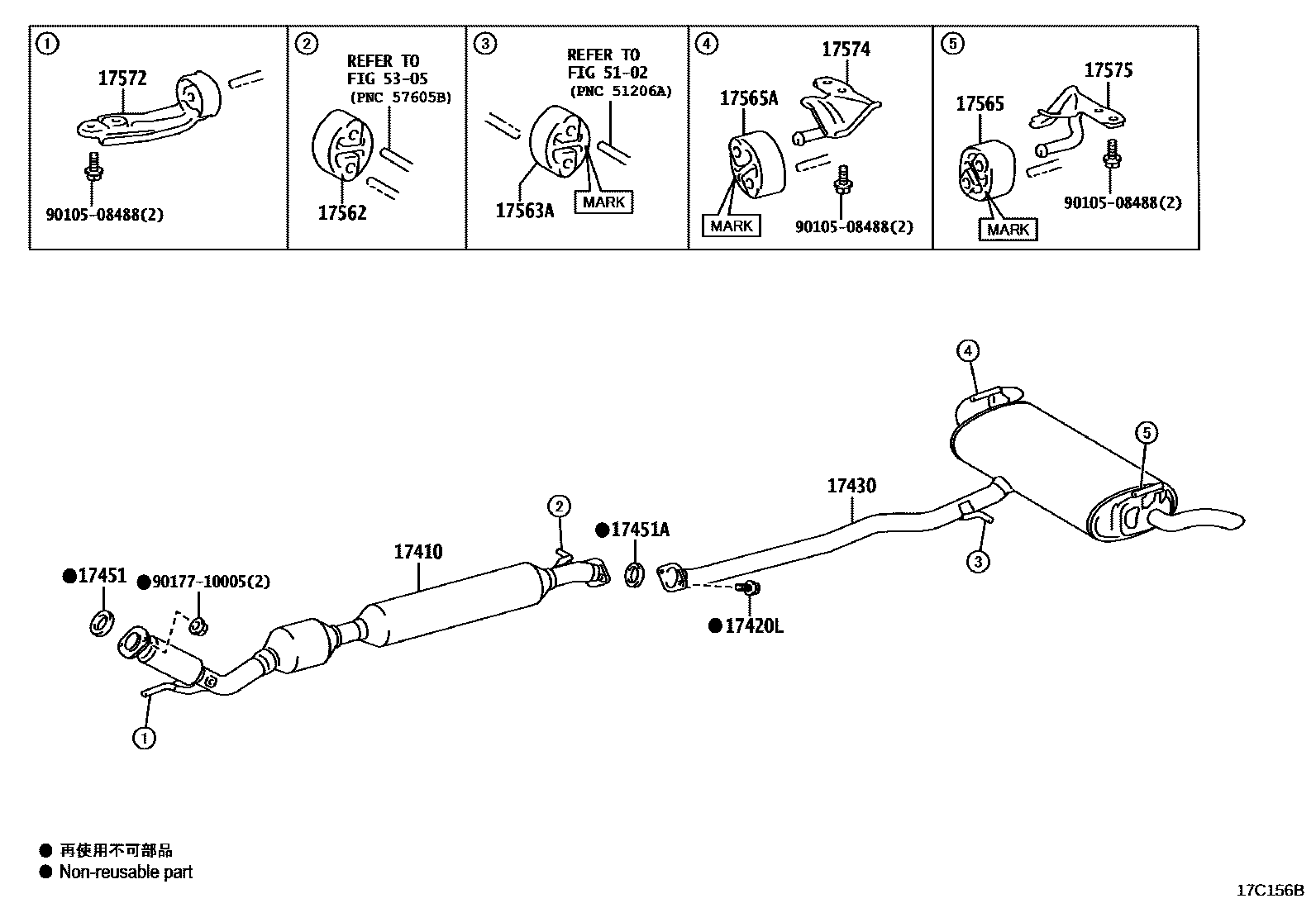

Parts diagram

17420LBOLT, FLANGE(FOR EXHAUST PIPE)

17430PIPE ASSY, EXHAUST, TAIL

17451GASKET, EXHAUST PIPE

17451AGASKET, EXHAUST PIPE, NO.2

17562SUPPORT, EXHAUST PIPE, NO.2

17563ASUPPORT, EXHAUST PIPE, NO.3

17565SUPPORT, EXHAUST PIPE, NO.5

17565ASUPPORT, EXHAUST PIPE, NO.4

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9010508488

9017710005

16 parts on this diagram · 4 diagrams in section

EXHAUST PIPE for Toyota LEXUS NX SERIES

This section contains 17 genuine Toyota parts for the EXHAUST PIPE system of the Toyota LEXUS NX SERIES. Key components include: PIPE ASSY, EXHAUST, FRONT, BOLT, FLANGE(FOR EXHAUST PIPE), PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, GASKET, EXHAUST PIPE, NO.2.
