5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52151GEXTENSION, REAR BUMPER

main52151-0E090i202210-202312

NO PAINT REQ.

main52151-0E100i202311-202410

NO PAINT REQ.

main52151-0E110i202011-202210

NO PAINT REQ.,AZERBAIJAN SPEC&PLATINUM PACKAGE; NO PAINT REQ.,PLATINUM PACKAGE

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0E100i202311-202410

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0E100i202311

52159COVER, REAR BUMPER

main52159-0E922i202002-202210

PAINT REQ.

main52159-0E923i202210-202311

PAINT REQ.

main52159-0E937i202311-202410

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-02020i202002-202210

52161BPIECE, REAR BUMPER

main52161-02020×4i202002-202210

52161XPIECE, REAR BUMPER

main52161-02020×4i202210-202312

52162DPIECE, REAR BUMPER

main52161-02020×2i202002-202210

52162EPIECE, REAR BUMPER

main52161-02020×4i202002-202210

52169CCOVER, REAR BUMPER, LOWER

main52169-0E110i202210-202312

NO PAINT REQ.

main52169-0E903i202311

PAINT REQ.

52171CREINFORCEMENT, REAR BUMPER

main52171-0E130i202311

52463PAD, REAR BUMPER, LH

main52463-07010×2i202210-202311

NO PAINT REQ.

52591SEAL, REAR BUMPER SIDE, RH

main52591-0E090i202002-202210

52592SEAL, REAR BUMPER SIDE, LH

main52592-0E090i202002-202210

52615ABSORBER, REAR BUMPER ENERGY

main52615-0E110i202002-202210

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

7503SIDE MOULDING

→ Go to FIG 75-03

75392RETAINER, OUTSIDE MOULDING

main75392-0R050×6i202311

main75392-35220×6i202002-202210

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

76828ARETAINER, BACK DOOR GARNISH, NO.3

main76828-60030×2i202002-202210

76829ARETAINER, BACK DOOR GARNISH

main76829-60020×2i202002-202210

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-0E140-A0i202311

PLATINUM WHITE PEARL MC.,089,RH

main89348-0E140-B0i202311

GRAY ME.,1G3,RH

main89348-0E140-B1i202311

SILVER ME.,1J9,RH

main89348-0E140-B2i202311-202410

PRECIOUS GALENA,1K5,RH

main89348-0E140-B3i202410

PRECIOUS METAL,1L5,RH

main89348-0E140-C0i202311

ATTITUDE BLACK MC.,218,RH

main89348-0E140-D0i202311

RED MC.,3T3,RH

main89348-0E140-G0i202311

GREEN M.M.,6X5,RH

main89348-0E140-J0i202311

DK. BLUE MC.,8X8,RH

main89348-0E150-A0i202311

PLATINUM WHITE PEARL MC.,089,LH

main89348-0E150-B0i202311-202410

GRAY ME.,1G3,LH

main89348-0E150-B1i202311

SILVER ME.,1J9,LH

main89348-0E150-B2i202311-202410

PRECIOUS GALENA,1K5,LH

main89348-0E150-B3i202410

PRECIOUS METAL,1L5,LH

main89348-0E150-C0i202311-202410

ATTITUDE BLACK MC.,218,LH

main89348-0E150-D0i202311-202410

RED MC.,3T3,LH

main89348-0E150-G0i202311-202410

GREEN M.M.,6X5,LH

main89348-0E150-J0i202311-202410

DK. BLUE MC.,8X8,LH

main89348-48140-A0i202002-202110

WHITE PEARL CS.,070,RH

main89348-48140-A1i202210-202312

PLATINUM WHITE PEARL MC.,089,RH

main89348-48140-B0i202210-202312

GRAY ME.,1G3,RH

main89348-48140-B1i202210-202312

SILVER ME.,1J9,RH

main89348-48140-B2i202002-202210

PRECIOUS GALENA,1K5,RH

main89348-48140-C0i202210-202312

ATTITUDE BLACK MC.,218,RH

main89348-48140-D0i202210-202311

RED MC.,3T3,RH

main89348-48140-E0i202002-202210

BLACKISH BROWN MC.,4X9,RH

main89348-48140-G0i202210-202311

GREEN M.M.,6X5,RH

main89348-48140-J0i202210-202311

DK. BLUE MC.,8X8,RH

main89348-48150-A0i202002-202110

WHITE PEARL CS.,070,LH

main89348-48150-A1i202210-202311

PLATINUM WHITE PEARL MC.,089,LH

main89348-48150-B0i202002-202210

GRAY ME.,1G3,LH

main89348-48150-B1i202210-202311

SILVER ME.,1J9,LH

main89348-48150-B2i202210-202312

PRECIOUS GALENA,1K5,LH

main89348-48150-C0i202210-202311

ATTITUDE BLACK MC.,218,LH

main89348-48150-D0i202002-202210

RED MC.,3T3,LH

main89348-48150-E0i202002-202210

BLACKISH BROWN MC.,4X9,LH

main89348-48150-G0i202210-202311

GREEN M.M.,6X5,LH

main89348-48150-J0i202210-202312

DK. BLUE MC.,8X8,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-0E130-A0×2i202311

PLATINUM WHITE PEARL MC.,089

main89348-0E130-B0×2i202311-202410

GRAY ME.,1G3

main89348-0E130-B1×2i202311-202410

SILVER ME.,1J9

main89348-0E130-B2×2i202311-202410

PRECIOUS GALENA,1K5

main89348-0E130-B3×2i202410

PRECIOUS METAL,1L5

main89348-0E130-C0×2i202311

ATTITUDE BLACK MC.,218

main89348-0E130-D0×2i202311-202410

RED MC.,3T3

main89348-0E130-G0×2i202311

GREEN M.M.,6X5

main89348-0E130-J0×2i202311-202410

DK. BLUE MC.,8X8

main89348-58110×2i202210-202312

9008015077

main90080-15077

9015960621

main90159-60621

90159A0059

main90159-A0059

90178A0086

main90178-A0086

9018306019

main90183-06019

9018906237

main90189-06237

9018906242

main90189-06242

9046705138

main90467-05138

9046709237

main90467-09237

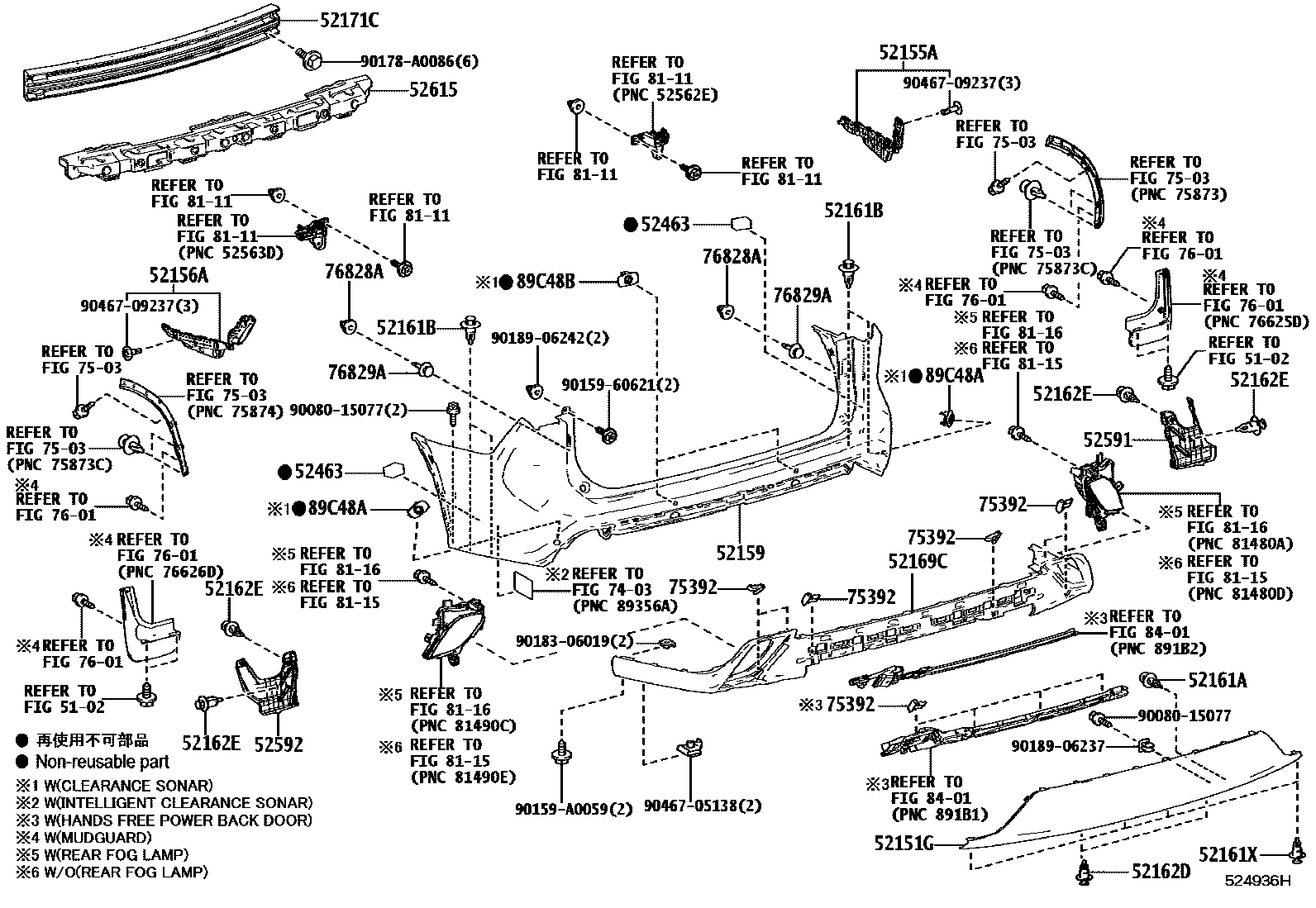

REAR BUMPER & BUMPER STAY
