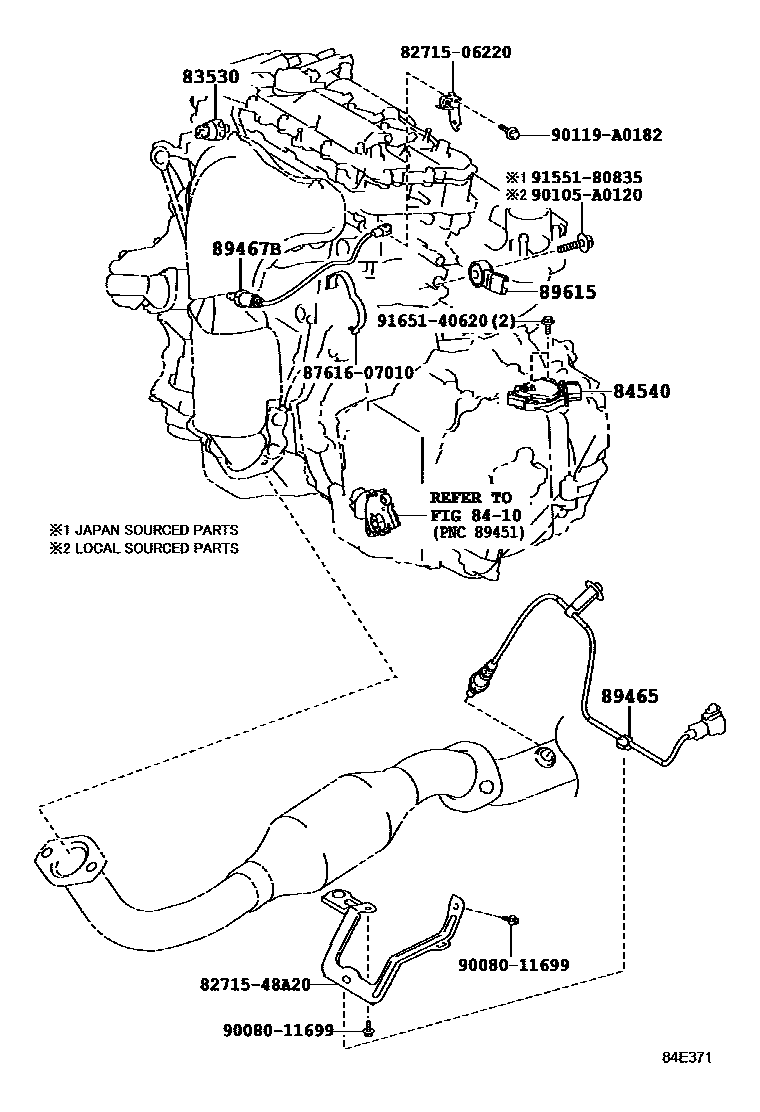

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 1/2 0007 1ENGINE ROOM 2/2 0008 1ENGINE ROOM 2/2 0009 1COWL 0010 1COWL 0011 1COWL 0012 1COWL 0013 1INSTRUMENT PANEL 1/2 0014 1INSTRUMENT PANEL 1/2 0015 1INSTRUMENT PANEL 2/2 0016 1STEERING 0017 1SEAT 0018 1DOOR,ROOF,FLOOR & BACK DOOR 0019 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iASU50,GSU5#201312-201611

DENSO USA

main83530-28020iASU50,GSU5#201312-201611

DENSO JAPAN

8410

84540SWITCH ASSY, NEUTRAL START

main84540-06020iGSU5#201808

(L)

sub84540-06021

sub35572-48051

main84540-07010iGSU5#201312-201611

main84540-07010iASU50201611-201710

(L)

main84540-33010iGSU5#201312-201411

main84540-33010iASU50201611

(J)

main84540-33020iGSU5#201611-201808

sub84540-33021

sub35572-48051

main84540-33020iGSU5#201808

(J)

sub84540-33021

sub35572-48051

89465SENSOR, OXYGEN

main89465-0E110iASU50201312-201611

main89465-0E130iGSU5#201312-201611

main89465-0E220iGSU5#201611

89467BSENSOR, AIR FUEL RATIO

main89467-06120iASU50201312-201611

main89467-0E200iGSU5#201312-201611

main89467-0E250iGSU5#201611

89615SENSOR, KNOCK CONTROL

main89615-06010iASU50201312-201611

DENSO USA

main89615-20090iGSU5#201312-201611

DENSO JAPAN

8271506220BRACKET,WIRING HARNESS CLAMP

main82715-06220

8271548A20BRACKET,WIRING HARNESS CLAMP

main82715-48A20

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008011699

main90080-11699

90105A0120

main90105-A0120

90119A0182

main90119-A0182

9155180835

main91551-80835

9165140620

main91651-40620

14 parts on this diagram · 19 diagrams in section
