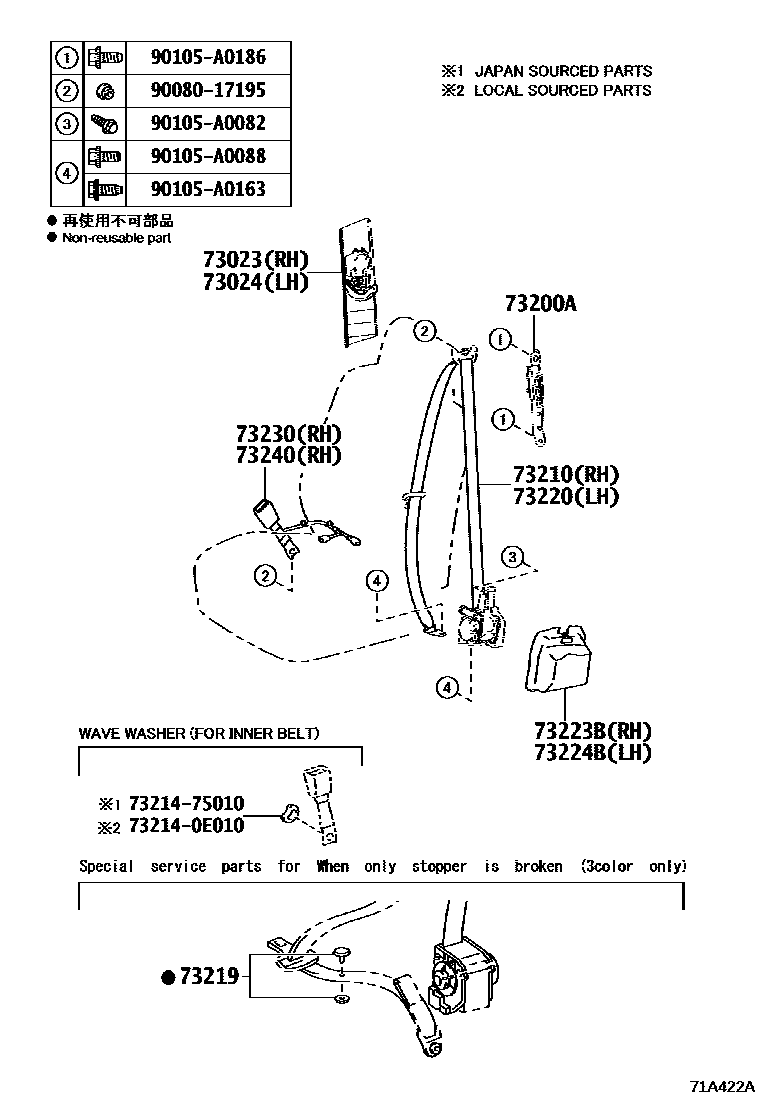

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.1 SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06070-A1iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main73023-06070-B0iASU50,GSU5#201312-201611

GRAY,TRIM2#

main73023-06070-B0iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06070-A1iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main73024-06070-B0iASU50,GSU5#..LIMD201611

GRAY,TRIM2#,4#

main73024-06070-B0iASU50,GSU5#..LE201312-201611

GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C020iASU50,GSU5#201312-201611

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0E090-A0iASU50,GSU55..LIMD..RUS201312-201510

FLAXEN,TRIM0#

sub73210-0E091

main73210-0E090-A0iASU50,GSU55..LIMD..RUS201312-201510

LEATHER PACKAGE,FLAXEN,TRIM0#

sub73210-0E091

main73210-0E090-C0iASU50,GSU55..RUS201312-201510

BLACK,TRIM2#

sub73210-0E091

main73210-0E091-A0iASU50,GSU55..LE..RUS201511-201611

LEATHER PACKAGE,FLAXEN,TRIM0#

main73210-0E091-A0iASU50,GSU55..LIMD..RUS201511-201611

FLAXEN,TRIM0#

main73210-0E091-C0iASU50,GSU55..LE..RUS201511-201611

BLACK,TRIM2#

main73210-0E091-C0iASU50,GSU55..LIMD..RUS201611

BLACK,TRIM2#,4#

main73210-0E120-A0iGSU5#..LIMD..ARL201312-201510

IVORY,TRIM0#

sub73210-0E121

main73210-0E120-C0iGSU5#..ARL201312-201510

BLACK,TRIM2#

sub73210-0E121

main73210-0E121-A0iGSU5#..LIMD..ARL201511-201611

IVORY,TRIM0#

main73210-0E121-C0iGSU5#..ARL201511-201611

BLACK,TRIM2#

main73210-0E121-C0iGSU5#..LIMD..ARL201611

BLACK,TRIM2#,4#

73219STOPPER, TONGUE PLATE

main73219-33010iASU50,GSU5#201312-201611

BLACK

main73219-33020iASU50,GSU5#201312-201611

GRAY

main73219-33030iASU50,GSU5#201312-201611

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0E080-A0iGSU5#..LIMD..ARL201312-201510

FLAXEN,TRIM0#

sub73220-0E081

main73220-0E080-C0iGSU5#..ARL201312-201510

BLACK,TRIM2#

sub73220-0E081

main73220-0E081-A0iGSU5#..LIMD..ARL201511-201611

IVORY,TRIM0#

main73220-0E081-C0iGSU5#..LIMD..ARL201611

BLACK,TRIM2#,4#

main73220-0E081-C0iGSU5#..LE..ARL201511-201611

BLACK,TRIM2#

main73220-0E110-A0iASU50,GSU55..LIMD..RUS201312-201510

LEATHER PACKAGE,IVORY,TRIM0#

sub73220-0E111

main73220-0E110-A0iASU50,GSU55..LIMD..RUS201312-201510

IVORY,TRIM0#

sub73220-0E111

main73220-0E110-C0iASU50,GSU55..RUS201312-201510

BLACK,TRIM2#

sub73220-0E111

main73220-0E111-A0iASU50,GSU55..LE..RUS201511-201611

IVORY,TRIM0#

main73220-0E111-A0iASU50,GSU55..LIMD..RUS201511-201611

LEATHER PACKAGE,IVORY,TRIM0#

main73220-0E111-C0iASU50,GSU55..LIMD..RUS201511-201611

BLACK,TRIM2#

main73220-0E111-C0iASU50,GSU55..LIMD..RUS201611

BLACK,TRIM2#,4#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0E020iASU50,GSU5#201312-201611

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0E020iASU50,GSU5#201312-201611

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0E080-A0iGSU5#..LIMD..ARL201312-201611

FLAXEN,TRIM0#

main73230-0E080-C0iGSU5#..LE..ARL201312-201611

LEATHER PACKAGE,BLACK,TRIM2#

main73230-0E080-C0iGSU5#..LIMD..ARL201312-201611

BLACK,TRIM2#

main73230-0E080-C0iGSU5#..LIMD..ARL201611

BLACK,TRIM2#,4#

main73230-0E090-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main73240-0E070-A0iASU50,GSU55..LIMD..RUS201312-201611

FLAXEN,TRIM0#

main73240-0E070-C0iASU50,GSU55..LIMD..RUS201611

BLACK,TRIM2#,4#

main73240-0E070-C0iASU50,GSU55..LIMD..RUS201312-201611

BLACK,TRIM2#

main73240-0E080-A0iGSU55..LE..RUS201611

LEATHER PACKAGE,FLAXEN,TRIM0#

main73240-0E080-A0iGSU55..LE..RUS201611

FLAXEN,TRIM0#

main73240-0E080-C0iASU50,GSU55..LE..RUS201312-201611

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0E080-A0iGSU55..RUS;ASU50..LIMD201312-201611

FLAXEN,TRIM0#

main73230-0E080-A0iASU50,GSU55..LIMD..RUS201312-201611

LEATHER PACKAGE,FLAXEN,TRIM0#

main73230-0E080-C0iASU50,GSU55..LE..RUS201312-201611

LEATHER PACKAGE,BLACK,TRIM2#

main73230-0E080-C0iASU50,GSU55..LIMD..RUS201611

BLACK,TRIM2#,4#

main73230-0E080-C0iASU50,GSU55..LIMD..RUS201312-201611

BLACK,TRIM2#

main73230-0E090-C0iASU50,GSU55..LE..RUS201312-201611

BLACK,TRIM2#

main73240-0E020-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main73240-0E040-A0iGSU5#..LIMD..ARL201312-201611

FLAXEN,TRIM0#

main73240-0E040-C0iGSU5#..LIMD..ARL201611

BLACK,TRIM2#,4#

main73240-0E040-C0iGSU5#..LIMD..ARL201312-201611

BLACK,TRIM2#

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0088

main90105-A0088

90105A0163

main90105-A0163

90105A0186

main90105-A0186

17 parts on this diagram · 4 diagrams in section
