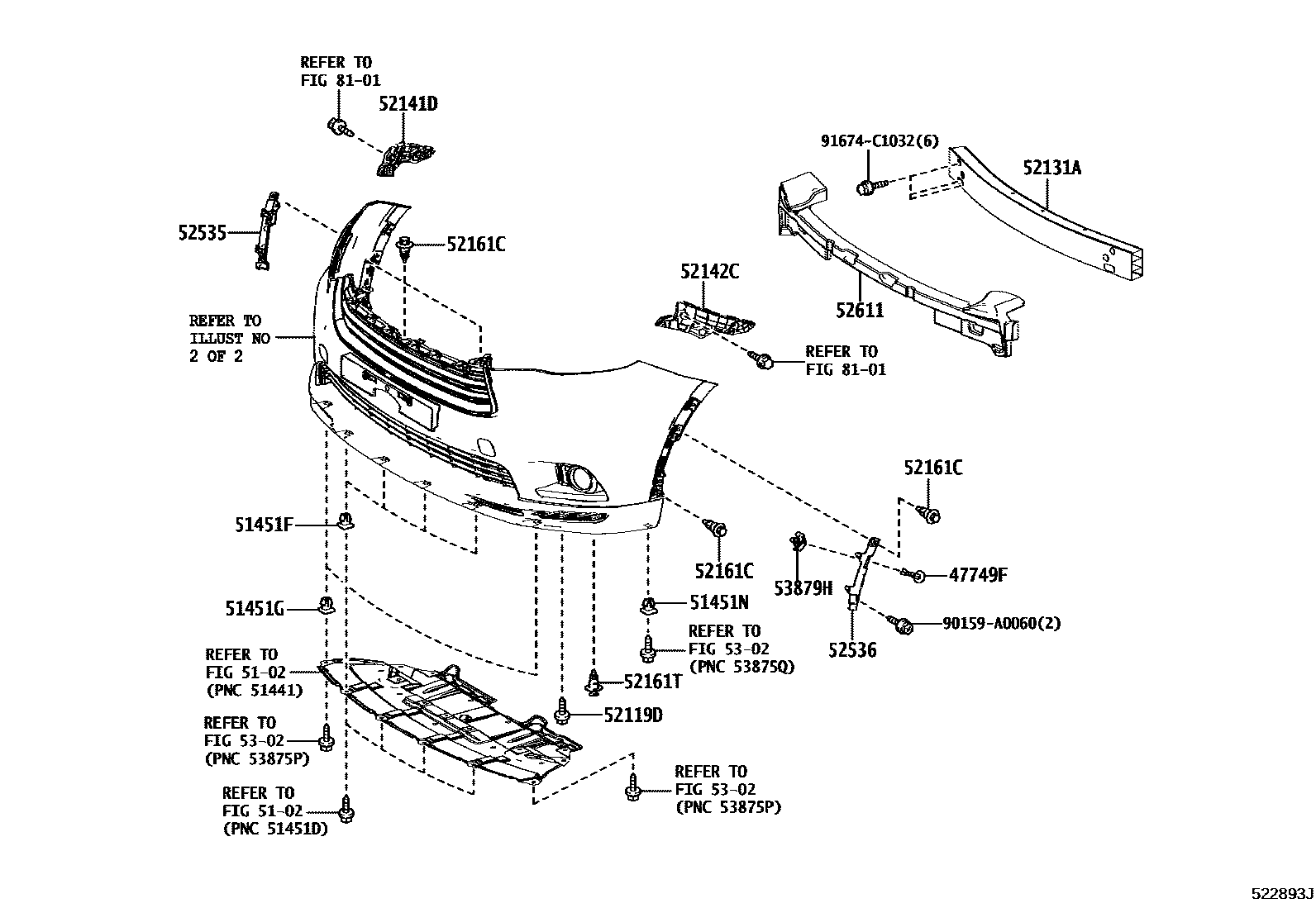

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-06010iASU50,GSU5#201408-201911

main47749-50090iASU50,GSU5#201312-201407

5102

51451FGROMMET, NO.1

main90189-06193iASU50,GSU5#201312-201507

main90189-06237iASU50,GSU5#201508-201911

51451GGROMMET, NO.2

main90189-06193iASU50,GSU5#201312-201507

main90189-06237iASU50,GSU5#201508-201911

51451NGROMMET, NO.3

main90189-06193iASU50,GSU5#201312-201507

main90189-06237iASU50,GSU5#201508-201911

52119DSCREW, NO.1

main90159-A0060iASU50,GSU5#201611-201911

PLANT TMMI

main90159-A0060iASU50,GSU5#201312-201611

main90167-50063iASU50,GSU5#201611-201911

EXCEPT PLANT TMMI

52131AREINFORCEMENT, FRONT BUMPER

main52131-0E090iASU50,GSU5#201312-201611

52141DSTAY, FRONT BUMPER, RH

main52145-0E060iASU50,GSU5#201312-201611

main52145-0E080iASU50,GSU5#201611

52142CSTAY, FRONT BUMPER, LH

main52146-0E060iASU50,GSU5#201312-201611

main52146-0E080iASU50,GSU5#201611

52161CPIECE, FRONT BUMPER

main52161-02020iASU50,GSU5#201312-201611

52161TPIECE, FRONT BUMPER

main52161-02020iASU50,GSU5#201312-201611

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0E050iASU50,GSU5#201312-201611

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0E030iASU50,GSU5#201312-201611

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0E091iASU50,GSU5#201312-201611

main52611-0E120iASU50,GSU5#201611

5302

53879HRETAINER, FRONT FENDER LINER

main53879-50020iASU50,GSU5#201312-201611

8101

90159A0060

main90159-A0060

91674C1032

main91674-C1032

19 parts on this diagram · 4 diagrams in section
