DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
LEATHER PACKAGE
42601WHEEL, DISC
19X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),TYPE E:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE,TYPE E:REFER ILLUST.
19X7.5J,#,TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST.
18X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),TYPE C:REFER ILLUST.
18X7.5J,#,LEATHER PACKAGE,TYPE F:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE & BLACK PACKAGE,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X7.5J,#,TYPE A:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),TYPE E:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE,TYPE E:REFER ILLUST.
19X7.5J,#,TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST.
18X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),TYPE C:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE & BLACK PACKAGE,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
sub90942-A1009
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
LEATHER PACKAGE
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
LEATHER PACKAGE
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
LEATHER PACKAGE
42611WCAP, TIRE VALVE (FOR SPARE)
LEATHER PACKAGE

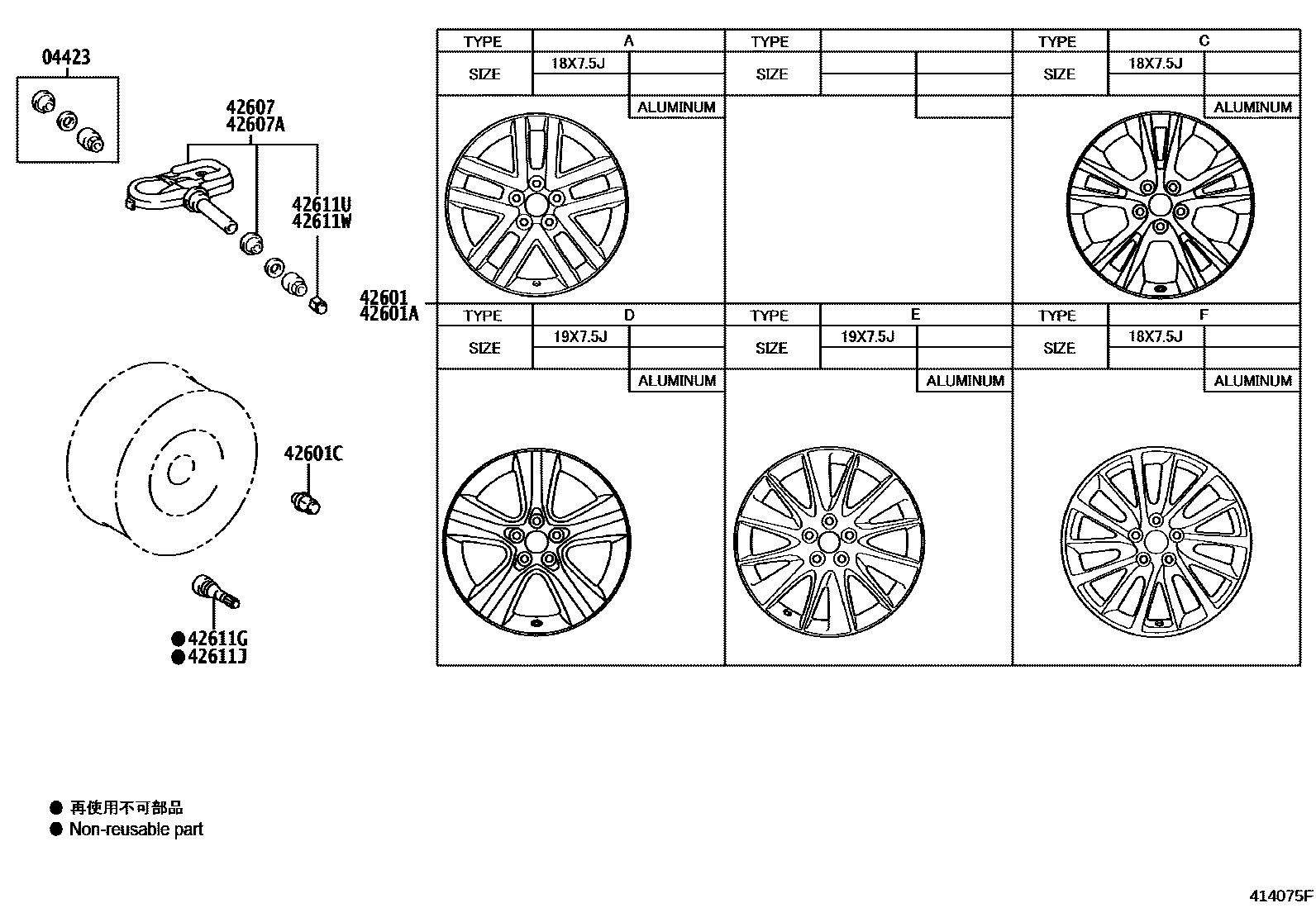

10 parts on this diagram · 2 diagrams in section
