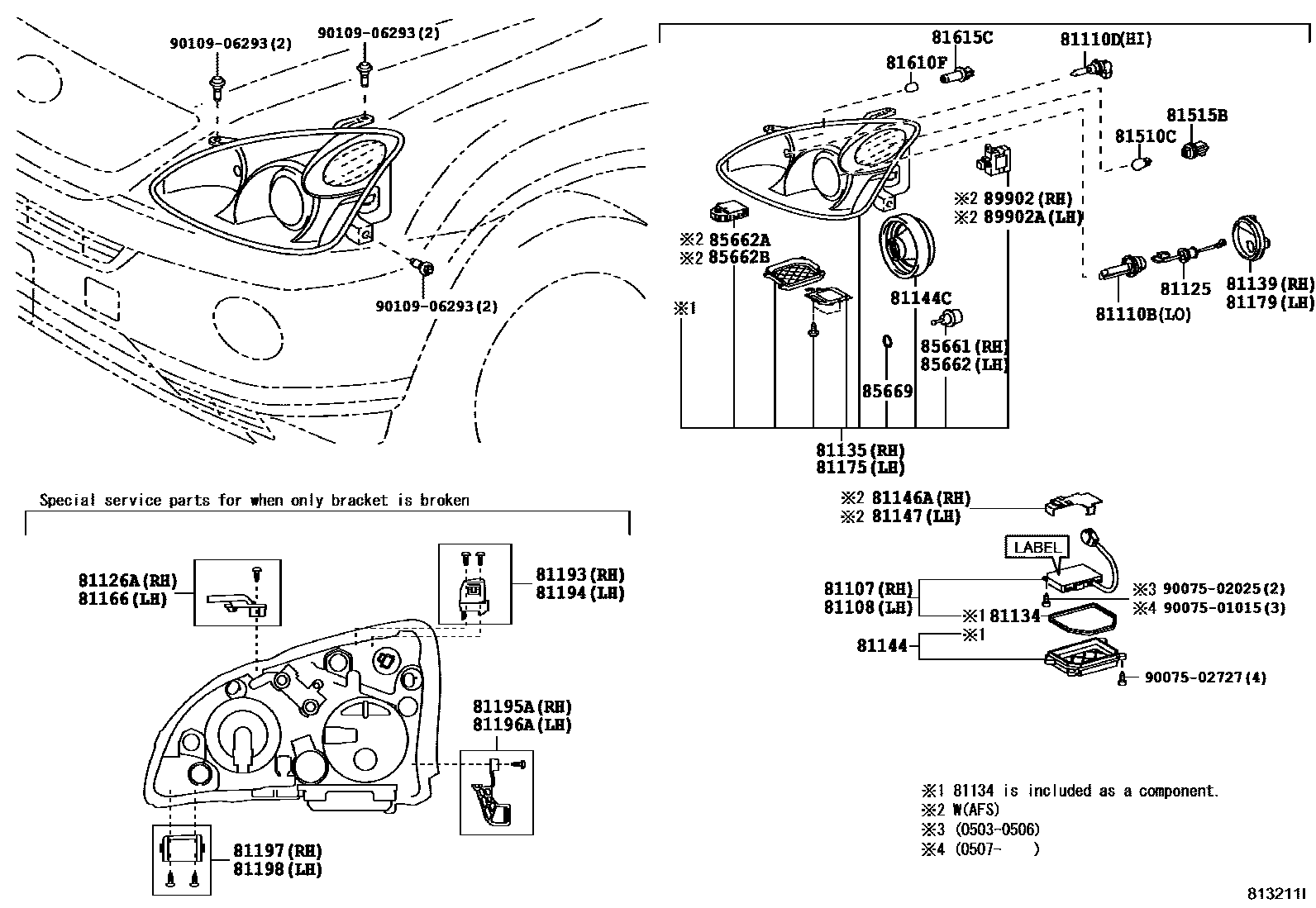

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
85V 35W
81110DBULB(FOR HEADLAMP, NO.2)
12V65W(SAE),60W(ECE)
81125CORD, HEADLAMP
81126APLATE, HEADLAMP, RH
81134GASKET, HEADLAMP
81139COVER, HEADLAMP SOCKET
81144COVER, HEADLAMP, NO.1
RH
LH
81144CCOVER, HEADLAMP SOCKET
81146AFITTING, HEADLAMP, RH
81166PLATE, HEADLAMP, LH
81179COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
sub81197-48021
81198BRACKET, HEADLAMP, LWR LH
sub81198-48021
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615CSOCKET & WIRE, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85662AMOTOR, LIGHT REFLECTOR, RH
85662BMOTER, LIGHT REFLECTOR, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
89902ACOMPUTER SUB-ASSY, HEADLAMP SWIVEL, LH
9007501015
main90075-01015
9007502025
main90075-02025
9007502727
main90075-02727
9010906293
main90109-06293
37 parts on this diagram · 2 diagrams in section
