Home
›
EU
›
524210
›

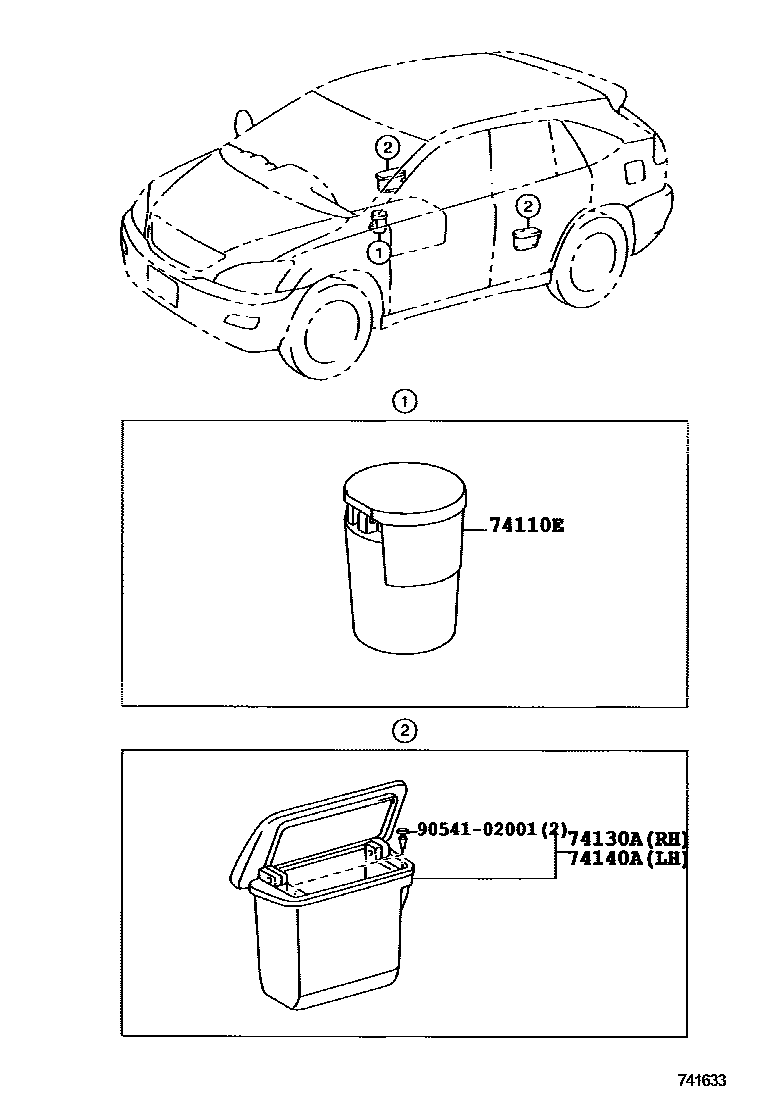

ASH RECEPTACLE
ASH RECEPTACLE
74110E
RECEPTACLE ASSY, FRONT ASH
main
74110-48040
i
MHU38
200503-200812
74130A
RECEPTACLE ASSY, REAR ASH, RH
main
74130-48050
i
MHU38
200503-200812
74140A
RECEPTACLE ASSY, REAR ASH, LH
main
74140-48050
i
MHU38
200503-200812
9054102001
main
90541-02001
4 parts on this diagram · 1 diagram in section
