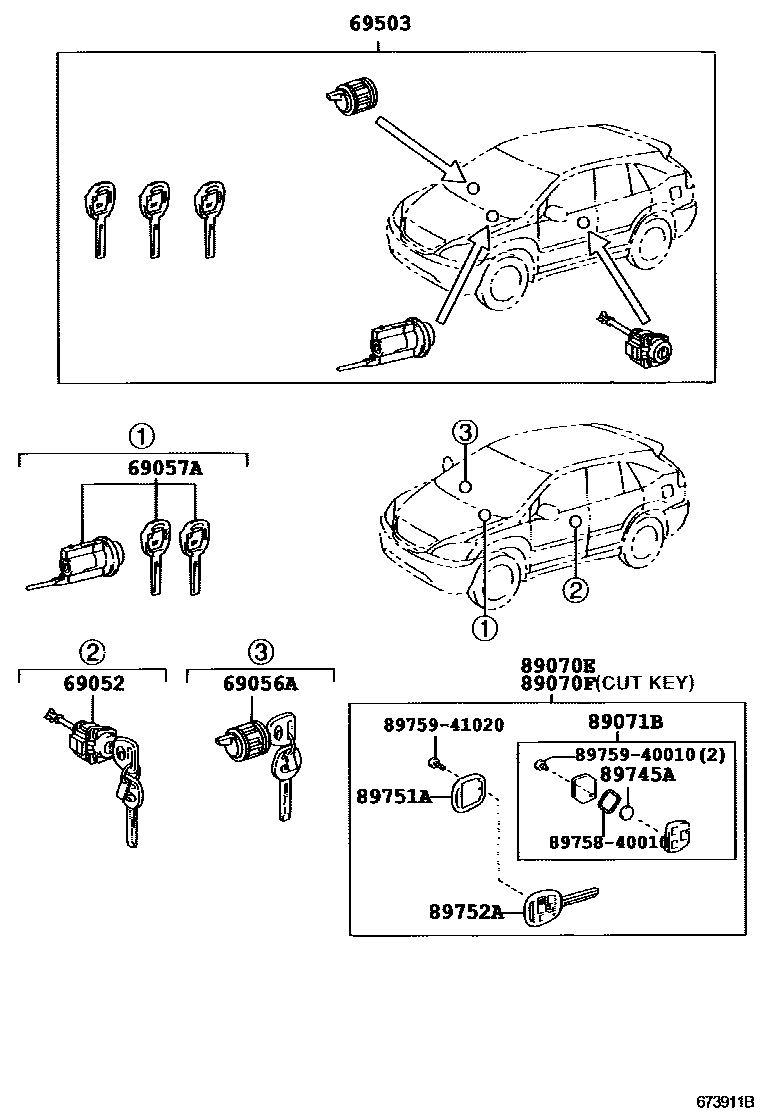

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
sub69056-60170
89070ETRANSMITTER ASSY, DOOR CONTROL
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
MASTER KEY(CUT)
SUB KEY(CUT)
MASTER KEY(BLANK)
SUB KEY(BLANK)
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
13 parts on this diagram · 2 diagrams in section
