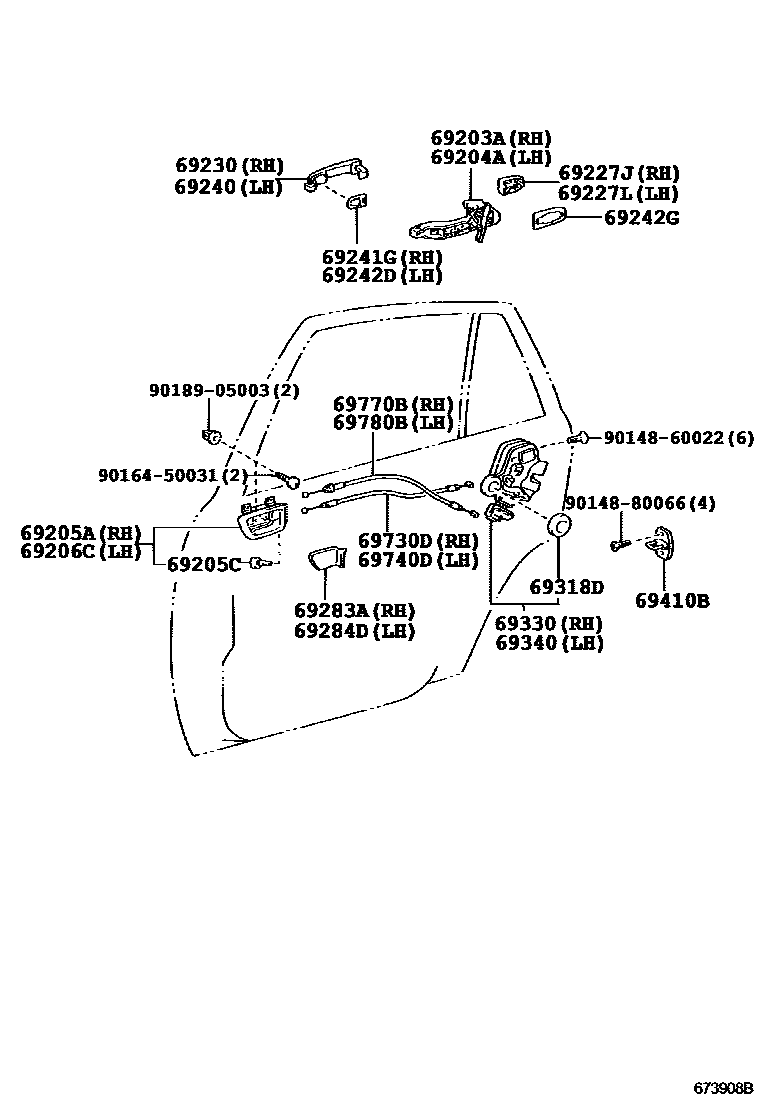

REAR DOOR LOCK & HANDLE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
*CR
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.BLUE M.M.,8R7
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
*CR
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.BLUE M.M.,8R7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.BLUE M.M.,8R7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
BLACK,202
BEIGE ME.,4R4
LT.OLIVE M.M.,6T1
DK.BLUE M.M.,8R7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
TAIWAN SPEC
69340LOCK ASSY, REAR DOOR, LH
TAIWAN SPEC
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
26 parts on this diagram · 1 diagram in section
