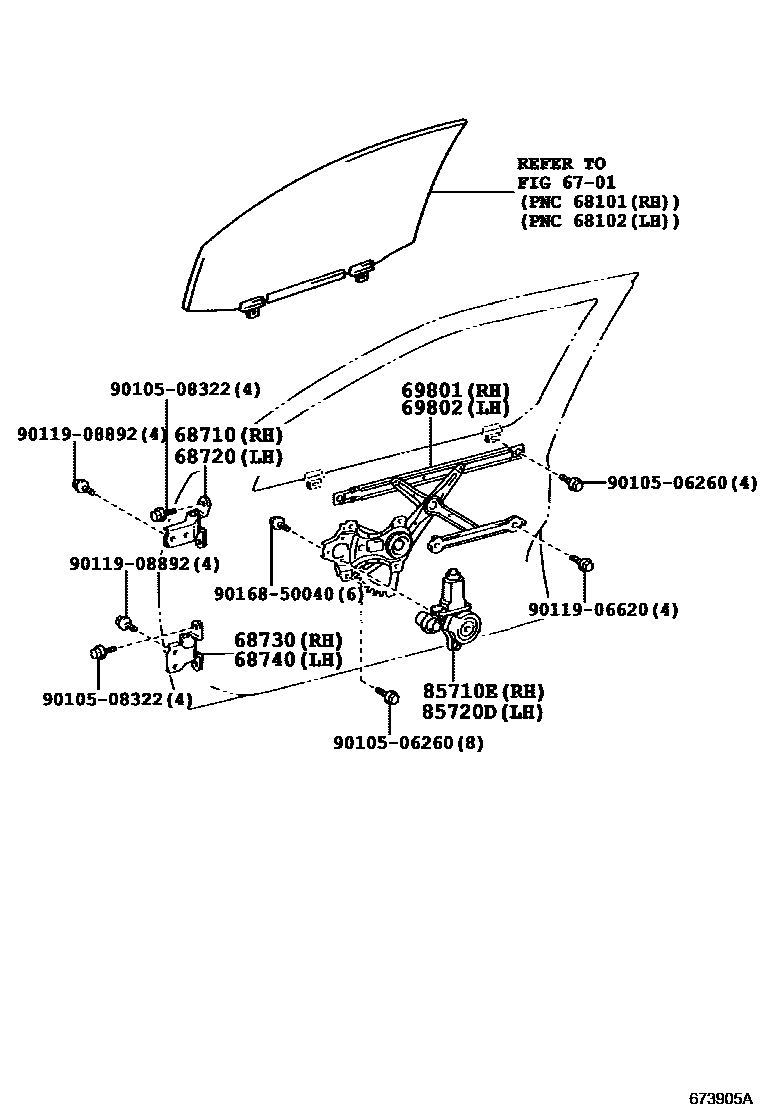

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-33030iMHU38200503-200609

main68710-33031iMHU38200610-200812

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-33030iMHU38200503-200609

main68720-33031iMHU38200610-200812

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iMHU38200503-200609

main68730-33021iMHU38200610-200812

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iMHU38200503-200609

main68740-33021iMHU38200610-200812

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33040iMHU38200503-200812

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33040iMHU38200503-200812

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-58010iMHU38200503-200812

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58010iMHU38200503-200812

9010506260

main90105-06260

9010508322

main90105-08322

9011906620

main90119-06620

9011908892

main90119-08892

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
