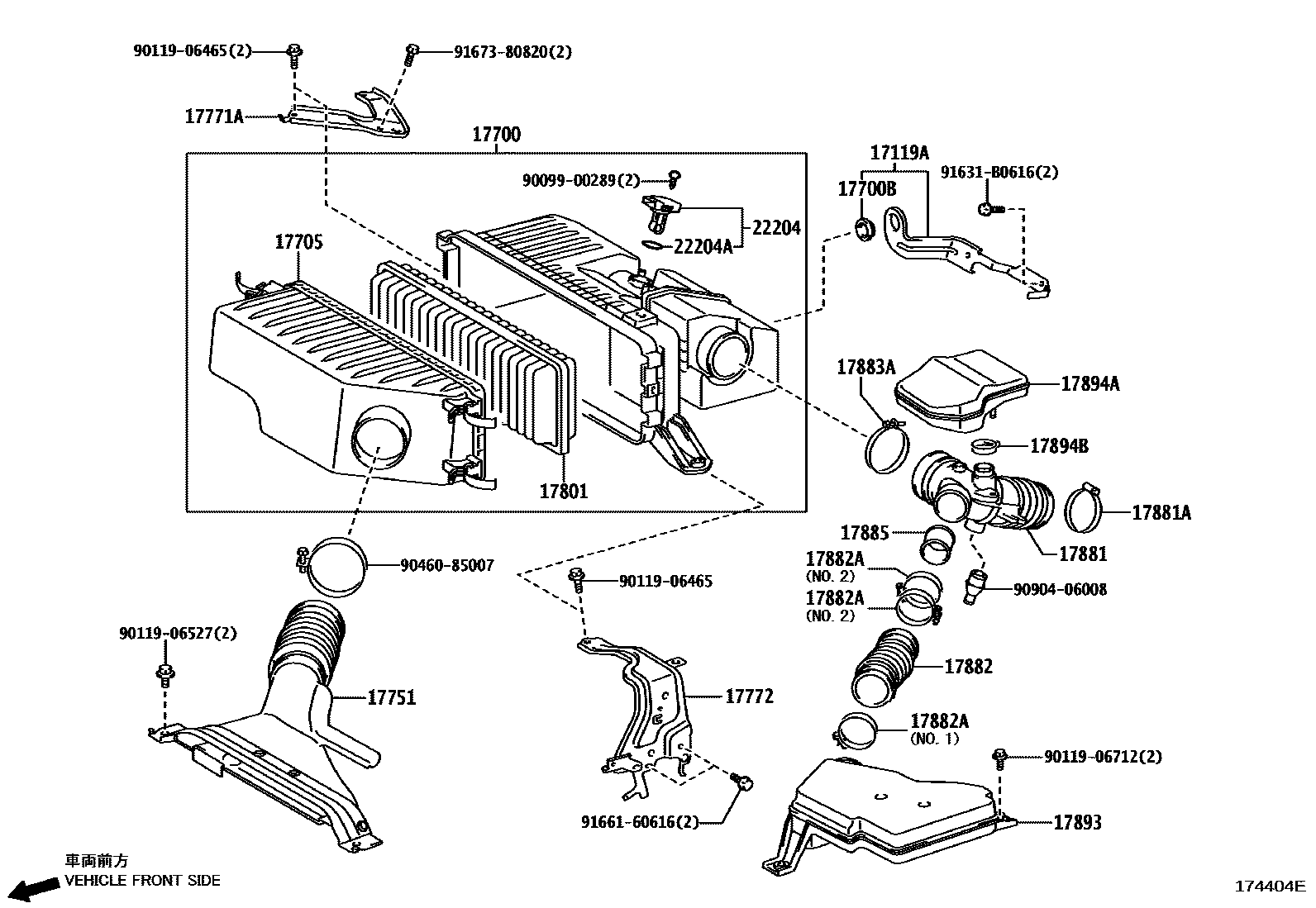

AIR CLEANER

17119ABRACKET, AIR CLEANER

main17119-20010i3MZFE..MHU38200503-200812

17700CLEANER ASSY, AIR

main17700-20220i3MZFE..MHU38200503-200812

17700BWASHER, SEAL(FOR AIR CLEANER)

main90480-23020i3MZFE..MHU38200503-200812

17705CAP SUB-ASSY, AIR CLEANER

main17705-20210i3MZFE..MHU38200503-200812

17751INLET, AIR CLEANER, NO.1

main17751-20040i3MZFE..MHU38200503-200812

17771ABRACKET, AIR CLEANER

main17771-20010i3MZFE..MHU38200503-200812

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-20010i3MZFE..MHU38200503-200812

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-20050i3MZFE..MHU38200503-200812

17881HOSE, AIR CLEANER, NO.1

main17881-20140i3MZFE..MHU38200503-200812

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-85001i3MZFE..MHU38200503-200812

17882HOSE, AIR CLEANER, NO.2

main17882-20140i3MZFE..MHU38200503-200812

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10650×2i3MZFE..MHU38200503-200812

NO.2

main96111-10670i3MZFE..MHU38200503-200812

NO.1

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-85007i3MZFE..MHU38200503-200812

17885PIPE, AIR CLEANER

main17885-20010i3MZFE..MHU38200503-200812

17893RESONATOR, INTAKE AIR

main17893-20100i3MZFE..MHU38200503-200812

17894ARESONATOR, INTAKE AIR, NO.2

main17894-20020i3MZFE..MHU38200503-200812

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10430i3MZFE..MHU38200503-200812

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i3MZFE..MHU38200503-200812

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i3MZFE..MHU38200503-200812

9009900289

main90099-00289

9011906465

main90119-06465

9011906527

main90119-06527

9011906712

main90119-06712

9046085007

main90460-85007

9090406008

main90904-06008

91631B0616

main91631-B0616

9166160616

main91661-60616

9167380820

main91673-80820

28 parts on this diagram · 1 diagram in section
