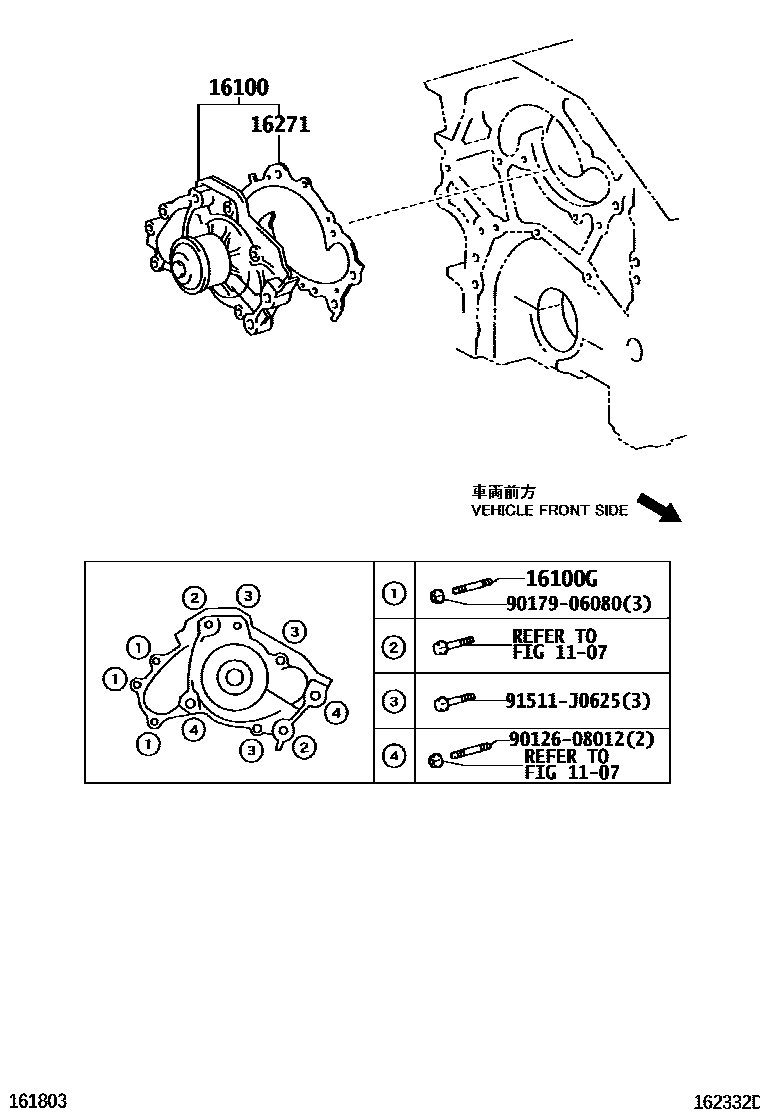

WATER PUMP

1107MOUNTING

→ Go to FIG 11-07

16100PUMP ASSY, ENGINE WATER

main16100-29085i3MZFE..MHU38200503-200812

16100GBOLT, STUD(FOR WATER PUMP SET)

main90116-06144i3MZFE..MHU38200503-200812

16271GASKET, WATER PUMP

main16271-20020i3MZFE..MHU38200503-200812

9012608012

main90126-08012

9017906080

main90179-06080

91511J0625

main91511-J0625

7 parts on this diagram · 1 diagram in section
