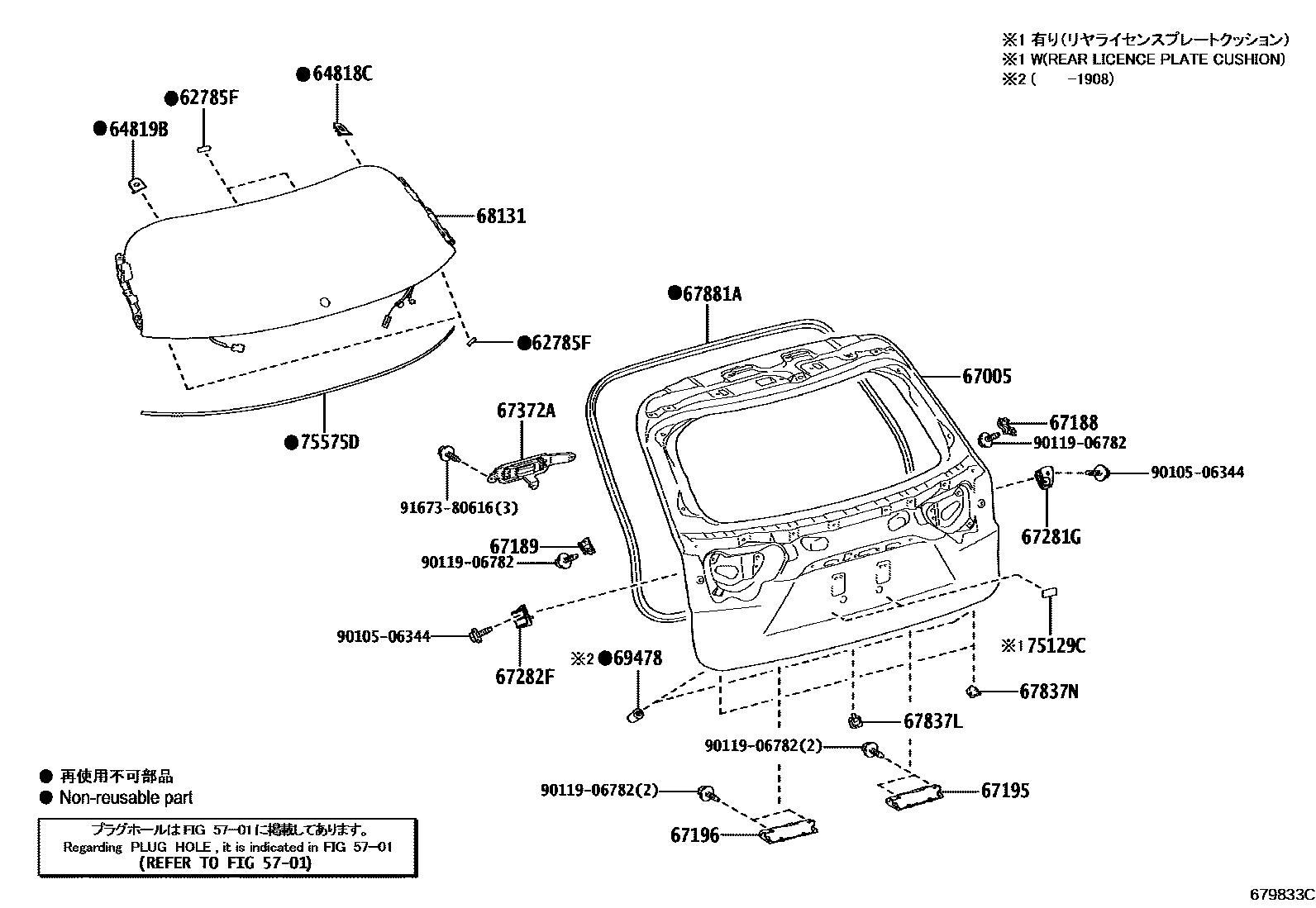

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-60030iGGL26,GYL26201712-201908

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-48080iGGL26,GYL26201712-201908

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-48070iGGL26,GYL26201712-201908

67005PANEL SUB-ASSY, BACK DOOR

main67005-48890iGGL26,GYL26201712-201907

sub67005-48891

main67005-48891iGGL26,GYL26201908

67188REINFORCEMENT, BACK DOOR STAY, RH

main67188-48090iGGL26,GYL26201712-201908

67189REINFORCEMENT, BACK DOOR STAY, LH

main67189-48090iGGL26,GYL26201712-201908

67195REINFORCEMENT, BACK DOOR STAY, LOWER RH

main67195-48010iGGL26,GYL26201712-201908

67196REINFORCEMENT, BACK DOOR STAY, LOWER LH

main67195-48010iGGL26,GYL26201712-201908

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-48021iGGL26,GYL26201712-201908

67282FSTOPPER, BACK DOOR, LWR LH

main67282-48011iGGL26,GYL26201712-201908

67372AWEIGHT, BACK DOOR

main67372-48110iGGL26,GYL26201712-201908

67837LSEAL, DOOR DUST PROOF

main67837-0E010iGGL26,GYL26201712-201908

67837NSEAL, BACK DOOR DUST PROOF

main67837-48100iGGL26,GYL26201712-201908

67881AWEATHERSTRIP, BACK DOOR

main67881-48090iGGL26,GYL26201712-201908

68131GLASS, BACK DOOR

main68105-48909iGYL26201803-201908

main68105-48912iGGL26201712-201908

main68105-48912iGGL26201908

INDIA SPEC

main68105-48915iGGL26201908

UKRAINE SPEC&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST)

main68105-48915iGYL26201908

ADRIA(SLOVENIA) SPEC&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST)

main68105-48915iGYL26201908

SERBIA SPEC&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST)

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-48020iGGL26,GYL26201712-201908

75129CCUSHION, REAR LICENCE PLATE

75575DMOULDING, BACK WINDOW, LOWER

main75575-48060iGGL26,GYL26201712-201908

9010506344

main90105-06344

9011906782

main90119-06782

9167380616

main91673-80616

22 parts on this diagram · 2 diagrams in section
