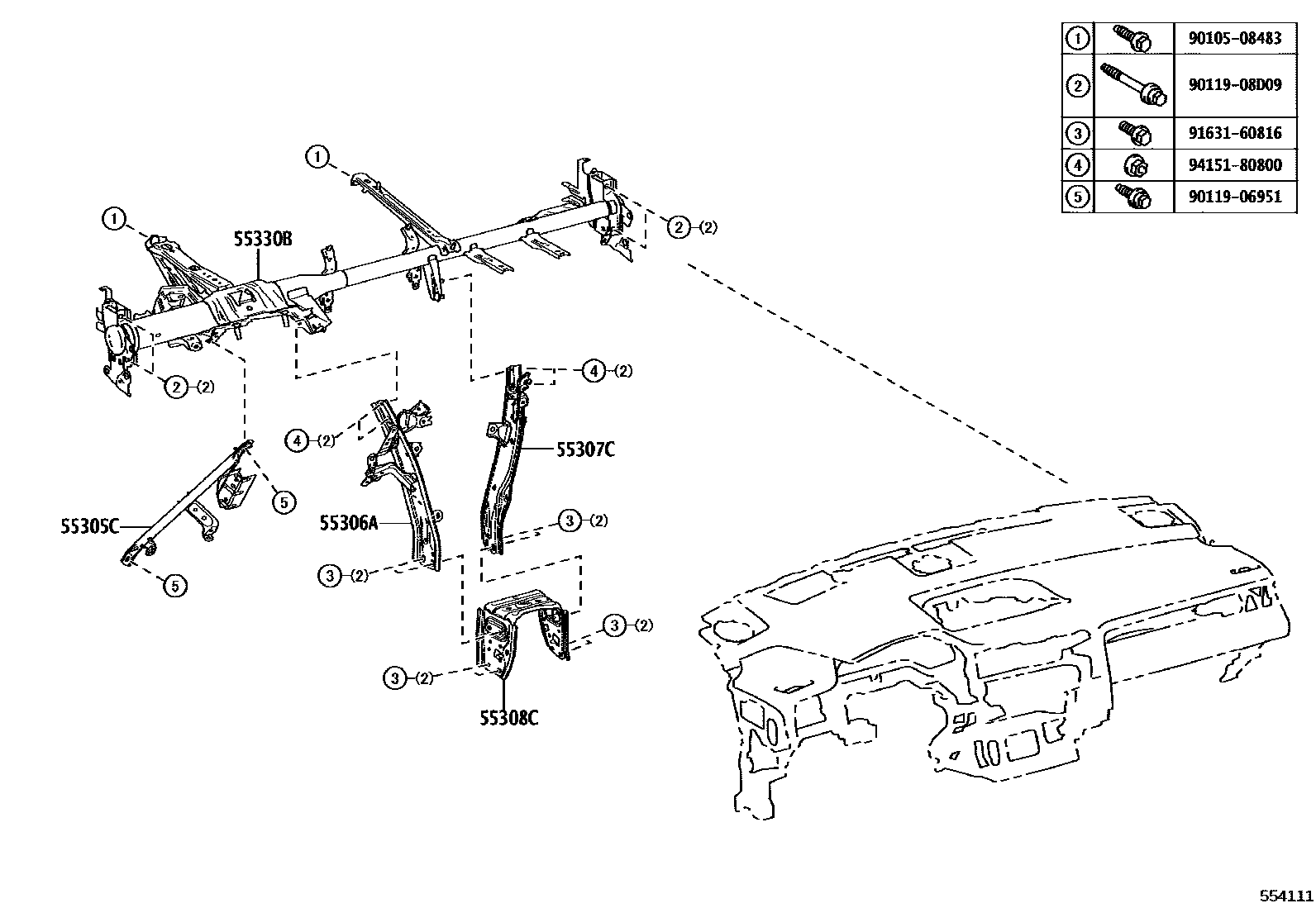

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1DRIVER SIDE 0010 1DRIVER SIDE 0011 1DRIVER SIDE 0012 1DRIVER SIDE 0013 1CENTER 0014 1CENTER 0015 1CENTER 0016 1CENTER 0017 1PASSENGER SIDE 0018 1PASSENGER SIDE 0019 1PASSENGER SIDE 0020 1PASSENGER SIDE

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-48010iGGL26,GYL26..LHD201712-201908

main55305-48020iGYL26..RHD201803-201908

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48160iGGL26,GYL26..LHD201712-201908

main55306-48170iGYL26..RHD201803-201908

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48160iGGL26,GYL26..LHD201712-201908

main55307-48170iGYL26..RHD201803-201908

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-48090iGGL26,GYL26201712-201908

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48220iGGL26,GYL26..LHD201712-201908

main55330-48230iGYL26..RHD201803-201908

main55330-48250iGGL26,GYL26..LHD201908

main55330-48260iGYL26..RHD201908

9010508483

main90105-08483

9011906951

main90119-06951

9011908D09

main90119-08D09

9163160816

main91631-60816

9415180800

main94151-80800

10 parts on this diagram · 20 diagrams in section
