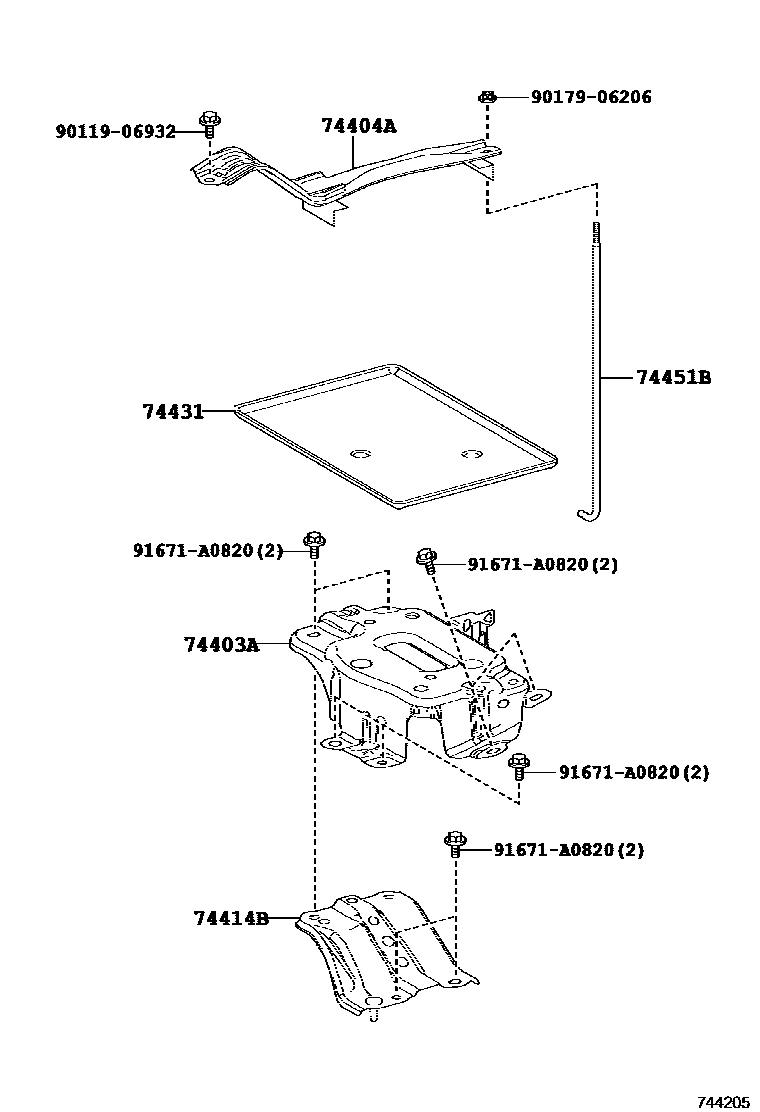

BATTERY CARRIER

0001 1 0002 1

74403ACARRIER SUB-ASSY, BATTERY

main74403-48080iAGL2#,GGL25201509-201908

main74403-48090iGYL25201510-201908

74404ACLAMP SUB-ASSY, BATTERY

main74404-48150iAGL2#,GGL25201509-201908

main74404-48160iGYL25201908

74414BREINFORCEMENT, BATTERY BRACKET

main74414-48020iAGL2#,GGL25,GYL25201908

74431TRAY, BATTERY

main74431-35040iAGL2#201509-201908

main74431-52040iGGL25201908

74451BBOLT, BATTERY CLAMP

main74451-48010iGYL25201908

main74452-48010iAGL2#,GGL25201908

9011906932

main90119-06932

9017906206

main90179-06206

91671A0820

main91671-A0820

8 parts on this diagram · 2 diagrams in section
