SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1COWL 0011 1COWL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1CONSOLE BOX 0015 1CONSOLE BOX 0016 1STEERING 0017 1SEAT 0018 1DOOR & ROOF 0019 1FLOOR & BACK DOOR 1/2 0020 1FLOOR & BACK DOOR 2/2 0021 1FLOOR RELAY BLOCK

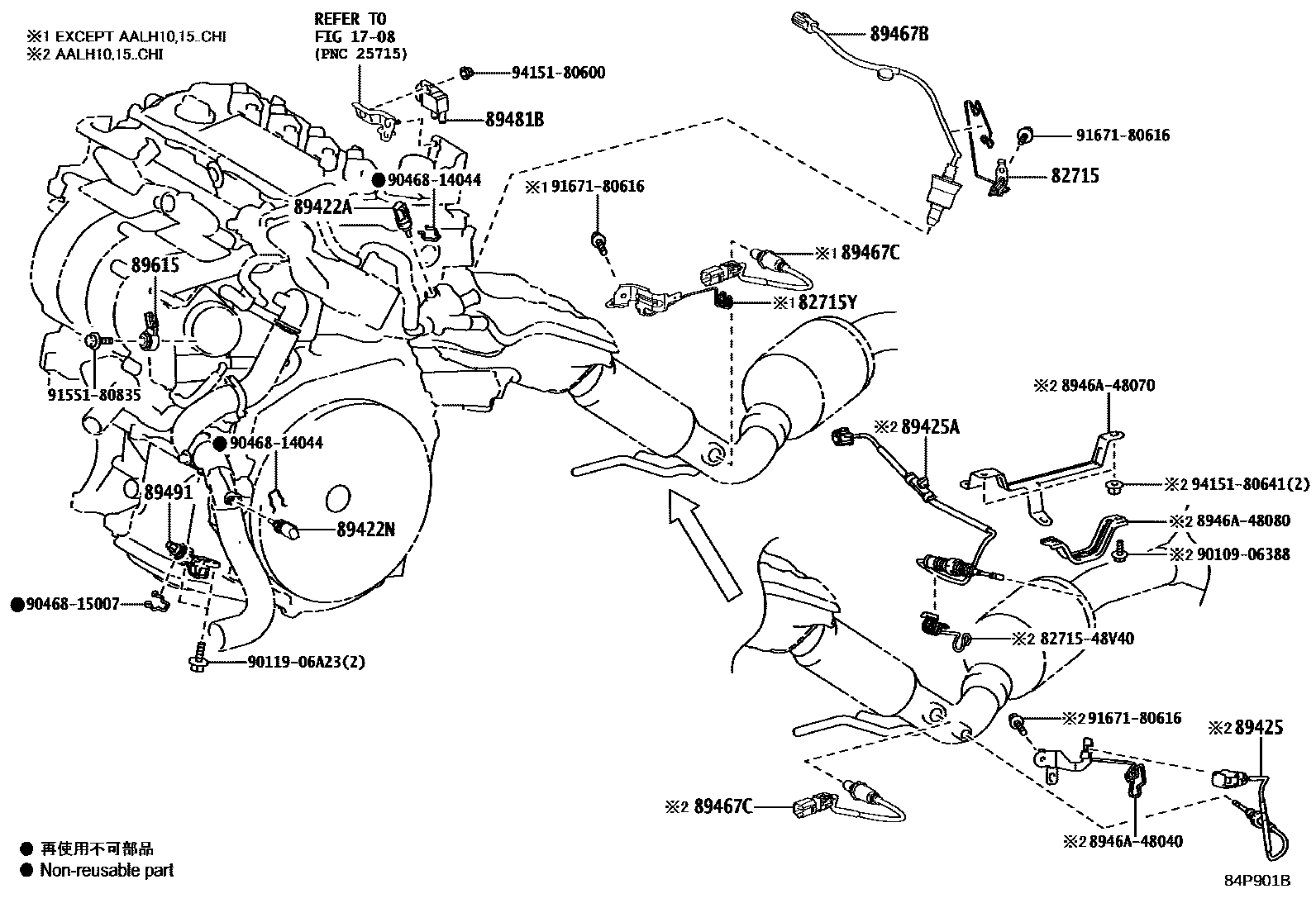

1708

82715BRACKET,WIRING HARNESS CLAMP

main82715-33V10iAALH1#202211

main8946A-48110iTALA1#,TALH17202211-202406

main8946A-48130iSALA15,TALA1#,TALH17202406

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-42K60iAALH10,15..EUR,GCC,GEN202211

main8946A-78030iSALA15,TALA1#,TALH17202211

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAALH1#,SALA15,TALA1#,TALH17202211

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAALH10,15..CHI202211

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-48010iSALA15,TALH17..CHI202211

main89425-48030iAALH1#..CHI202211

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-48020iSALA15202410

main89425-48040iAALH1#..CHI202211

main89425-48050iTALH17..CHI202211

89467BSENSOR, AIR FUEL RATIO

main89467-48380iAALH1#..CHI202211

main89467-48400iSALA15,TALA1#,TALH17202211

main89467-78070iAALH1#..EUR,GCC,GEN202211

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAALH10,15..EUR,GCC,GEN202211

main89467-42190iAALH16..EUR,GEN202211

main89467-48360iAALH1#..CHI202211

main89467-78050iSALA15,TALA1#,TALH17202211

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-48010iSALA15,TALH17..CHI,EUR202211

main89481-K0010iAALH1#..CHI,EUR202211

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iAALH1#,SALA15,TALA1#,TALH17202211

89615SENSOR, KNOCK CONTROL

main89615-20090iAALH1#202211

main89615-78010iSALA15,TALA1#,TALH17202211

8271548V40BRACKET,WIRING HARNESS CLAMP

main82715-48V40

8946A48040BRACKET, EXHAUST SENSOR CLAMP

main8946A-48040

8946A48070BRACKET, EXHAUST SENSOR CLAMP

main8946A-48070

8946A48080BRACKET, EXHAUST SENSOR CLAMP

main8946A-48080

9010906388

main90109-06388

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180616

main91671-80616

9415180600

main94151-80600

9415180641

main94151-80641

24 parts on this diagram · 21 diagrams in section
