EPC Data

FRONT SEAT & SEAT TRACK

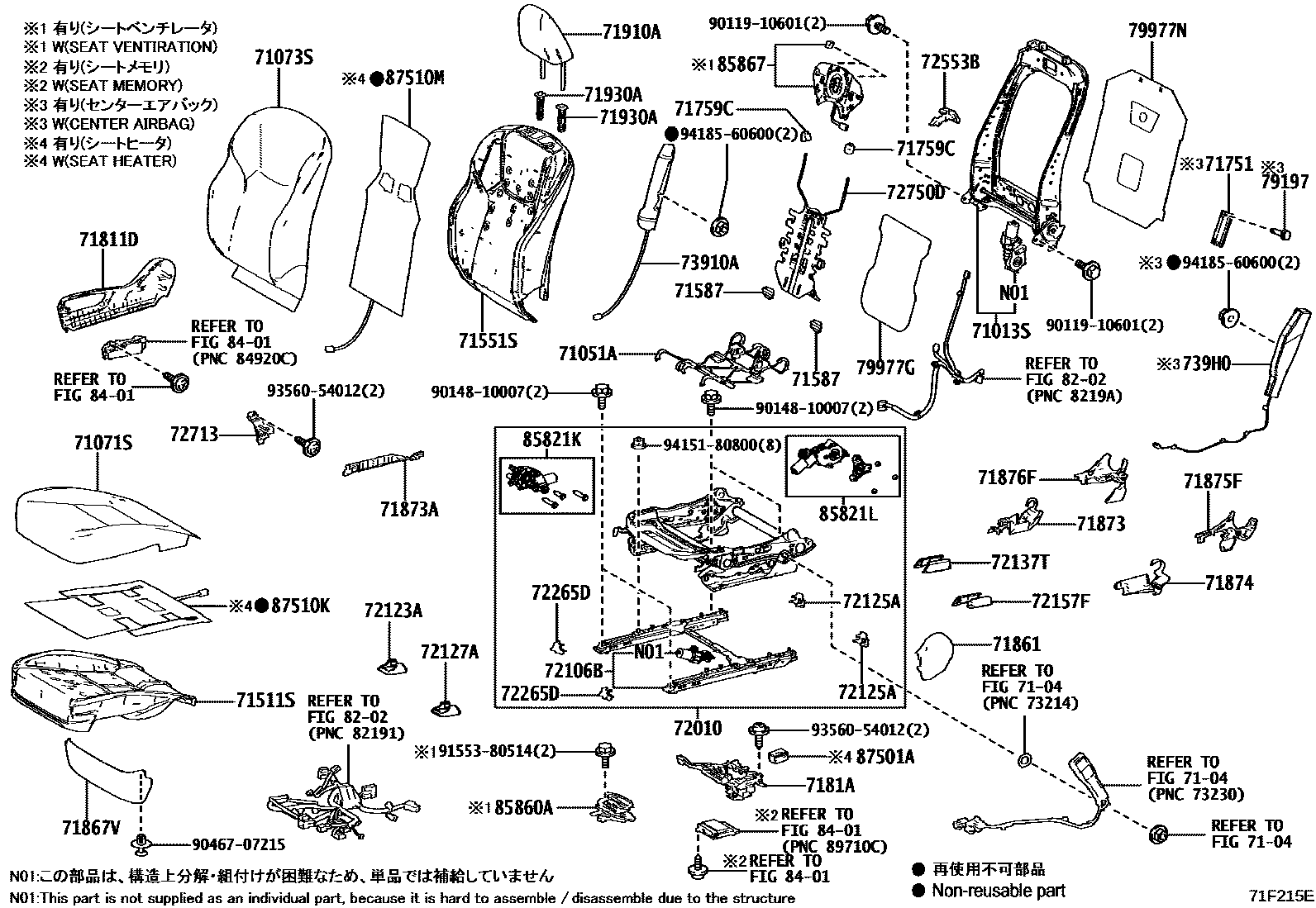

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-42250i202211
main71013-42270i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main71013-42270i202211
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main71013-42270i202211
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main71013-42270i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEATADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SE
main71013-42270i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
main71013-42270i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
main71013-42270i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71013-42270i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71013-42270i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-47090i202211
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-48E50-A0i202211-202410
FROMAGE,TRIM0#
main71071-48E50-A0i202211-202410
INDIA SPEC&SEAT HEATER-WITHOUT,FROMAGE,TRIM0#
main71071-48E50-C0i202211
BLACK,TRIM2#
main71071-48E50-C0i202211
INDIA SPEC&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71071-48E50-E0i202211
HAZEL,TRIM4#
main71071-48E60-A0i202211-202410
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71071-48E60-A0i202211-202410
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71071-48E60-A0i202211-202410
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71071-48E60-A0i202211-202410
PANAMA,PERU SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71071-48E60-A0i202211-202410
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71071-48E60-A0i202211-202410
FROMAGE,TRIM0#
main71071-48E60-C0i202211
BLACK,TRIM2#
main71071-48E60-C0i202211
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71071-48E60-C0i202211
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71071-48E60-C0i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71071-48E60-C0i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-48D10-A0i202211-202410
FROMAGE,TRIM0#
main71073-48D10-C1i202211
BLACK,TRIM2#
main71073-48D10-E1i202211
HAZEL,TRIM4#
main71073-48G90-A0i202211-202410
SOUTH AFRICA SPEC&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
PANAMA,PERU SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
PANAMA,PERU SPEC&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEATMEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
TAIWAN SPEC&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48G90-A0i202211-202410
SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48G90-C1i202211
BLACK,TRIM2#
main71073-48G90-C1i202211
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71073-48G90-C1i202211
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71073-48K50-A0i202211-202410
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71073-48K50-A0i202211-202410
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT),FROMAGE,TRIM0#
main71073-48K50-A0i202211-202410
FROMAGE,TRIM0#
main71073-48K50-A0i202211-202410
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48K50-A0i202211-202410
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),FROMAGE,TRIM0#
main71073-48K50-C1i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71073-48K50-C1i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71073-48K50-C1i202211
BLACK,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-78050i202211
main71501-78090i202211
main71511-78100i202211
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-78071i202211
main71551-78091i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)
main71551-78091i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010i202211
71751HANGER, SEAT COVER
main71751-48010i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main71751-48010i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)
main71751-48010i202211
AUSTRALIA SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY
main71751-48010i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71751-48010i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71751-48010i202211
AUSTRALIA SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main71751-48010i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main71751-48010i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main71751-48010i202211
NEW ZEALAND SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10W
main71751-48010i202211
NEW ZEALAND SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
71759CHOOK, FRONT SEATBACK, NO.1
main71759-50040i202211
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-78050-C0i202211
BLACK,TRIM0#,2#,3#,4#
main71811-78050-C0i202211
BLACK,TRIM0#,1#,2#,3#,4#
main71811-78050-C0i202211
BLACK,TRIM0#,1#,2#,4#
main71811-78050-C0i202410
BLACK,TRIM0#,2#,4#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
main7181A-42010i202211
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-47070-C1i202211
BLACK,TRIM0#,1#,2#,3#,4#
main71861-47070-C1i202211
BLACK,TRIM0#,2#,3#,4#
main71861-47070-C1i202211
BLACK,TRIM0#,1#,2#,4#
main71861-47070-C1i202410
BLACK,TRIM0#,2#,4#
71867VSHIELD, FRONT SEAT CUSHION, FRONT RH
main71867-78020-C0i202211
BLACK,TRIM0#,2#,3#,4#
main71867-78020-C0i202211
BLACK,TRIM0#,1#,2#,3#,4#
main71867-78020-C0i202211
BLACK,TRIM0#,1#,2#,4#
main71867-78020-C0i202410
BLACK,TRIM0#,2#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-48190i202211
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-60160i202211
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-V1040i202211
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-48250-C0i202211
BLACK,TRIM0#,2#,3#,4#
main71875-48250-C0i202211
BLACK,TRIM0#,1#,2#,3#,4#
main71875-48250-C0i202211
BLACK,TRIM0#,1#,2#,4#
main71875-48250-C0i202410
BLACK,TRIM0#,2#,4#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-78050-C0i202211
BLACK,TRIM0#,2#,4#
main71875-78050-C0i202211
BLACK,TRIM0#,2#,3#
main71875-78050-C0i202211
BLACK,TRIM0#,2#,3#,4#
71910AHEADREST ASSY, FRONT SEAT
main71910-48D00-C0i202211
BLACK,TRIM2#
main71910-48D00-E0i202211
HAZEL,TRIM4#
main71910-48F60-A1i202211-202410
FROMAGE,TRIM0#
main71910-48F60-C1i202211
BLACK,TRIM2#
main71910-48G20-A1i202410
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71910-48G20-A1i202410
WHITE,TRIM0#
main71910-48G20-A1i202410
ARGENTINA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71910-48G20-A1i202410
ARGENTINA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71910-48G20-A1i202410
CHILE SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SE
main71910-48G20-A1i202410
CHILE SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-W
main71910-48G20-A1i202410
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71910-48G20-A1i202410
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main71910-48G20-A1i202410
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main71910-48G20-A1i202410
TAIWAN SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(S
main71910-48G20-A1i202410
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-
main71910-48G20-A1i202410
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =
main71910-48G20-A1i202410
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEATADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SE
main71910-48G20-A1i202410
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),WHITE,TRIM0#
main71910-48G20-A1i202410
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),WHITE,TRIM0#
main71910-48G20-A1i202410
PANAMA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(S
main71910-48G20-A1i202410
PANAMA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-
main71910-48G20-C1i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71910-48G20-C1i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71910-48G20-C1i202211
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main71910-48G20-C1i202211
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main71910-48G20-C1i202211
TAIWAN SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(S
main71910-48G20-C1i202211
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-
main71910-48G20-C1i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =
main71910-48G20-C1i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEATADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SE
main71910-48G20-C1i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM2#
main71910-48G20-C1i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71910-48G20-C1i202211
BLACK,TRIM2#
main71910-48G20-C1i202211
ARGENTINA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71910-48G20-C1i202211
ARGENTINA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71910-48G20-C1i202211
CHILE SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SE
main71910-48G20-C1i202211
CHILE SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-W
main71910-48G20-D2i202211
CHILE SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SE
main71910-48G20-D2i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71910-48G20-D2i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71910-48G20-D2i202211
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main71910-48G20-D2i202211
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main71910-48G20-D2i202211
TAIWAN SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(S
main71910-48G20-D2i202211
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-
main71910-48G20-D2i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =
main71910-48G20-D2i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEATADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SE
main71910-48G20-D2i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),DK.ROSE,TRIM3#
main71910-48G20-D2i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
main71910-48G20-D2i202211
DK.ROSE,TRIM3#
main71910-48G20-D2i202211
ARGENTINA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main71910-48G20-D2i202211
ARGENTINA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main71910-48G20-D2i202211
CHILE SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-W
main71910-48G80-A1i202410
WHITE,TRIM0#
main71910-48G80-C0i202211
BLACK,TRIM2#
main71910-48G80-D1i202211
DK.ROSE,TRIM3#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
main71930-47050-C5i202211
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-47050-C5i202211
W(LOCK),BLACK,TRIM0#,1#,2#,4#
main71930-47050-C5i202211
W(LOCK),BLACK,TRIM0#,2#,3#,4#
main71930-47050-C5i202410
W(LOCK),BLACK,TRIM2#,4#
main71931-47030-C4i202211
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#
main71931-47030-C4i202211
W/O(LOCK),BLACK,TRIM0#,1#,2#,4#
main71931-47030-C4i202211
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-47030-C4i202410
W/O(LOCK),BLACK,TRIM2#,4#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-48310i202211
main72010-48330i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main72010-48330i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main72010-48330i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main72010-48330i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main72010-48330i202211
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main72010-48330i202211
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main72010-48330i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEATADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SE
main72010-48330i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
main72010-48330i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
72106BRAIL SUB-ASSY, SEAT TRACK, UPPER RH
main72106-78010i202211
main72106-78020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main72106-78020i202211
SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER &WITH(SEAT MEMORY)
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-50020-C0i202211
BLACK
72125ACOVER, SEAT TRACK, UPPER REAR
main72125-47020i202211
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-50020-C0i202211
BLACK
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72137-47060i202211
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
main72157-47080i202211
72265DCOVER, SEAT TRACK UPPER RAIL
main72265-47020i202211
72553BPROTECTOR, RECLINING COVER, RH
main72553-52040-C0i202211
BLACK
72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
main72713-78010i202211
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-33140i202211
main72750-33150i202211
ARGENTINA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main72750-33150i202211
ARGENTINA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main72750-33150i202211
ARGENTINA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main72750-33150i202211
CHILE SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SE
main72750-33150i202211
CHILE SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-W
main72750-33150i202211
CHILE SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRON
main72750-33150i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main72750-33150i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main72750-33150i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main72750-33150i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main72750-33150i202211
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main72750-33150i202211
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main72750-33150i202211
TAIWAN SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(S
main72750-33150i202211
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-
main72750-33150i202211
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRO
main72750-33150i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =
main72750-33150i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEATADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SE
main72750-33150i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main72750-33150i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
main72750-33150i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main72750-33150i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY
main72750-33150i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main72750-33150i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main72750-33150i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
main72750-33150i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-33090i202211
main73910-42080i202211
739H0AIRBAG ASSY, FRONT SEAT CENTER, RH
main739H0-78011i202211
AUSTRALIA SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY
main739H0-78011i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main739H0-78011i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main739H0-78011i202211
AUSTRALIA SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main739H0-78011i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main739H0-78011i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main739H0-78011i202211
NEW ZEALAND SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10W
main739H0-78011i202211
NEW ZEALAND SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main739H0-78011i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main739H0-78011i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)
79197HOOK, SEATBACK COVER
main79197-47010i202211
AUSTRALIA SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY
main79197-47010i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main79197-47010i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main79197-47010i202211
AUSTRALIA SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main79197-47010i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main79197-47010i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main79197-47010i202211
NEW ZEALAND SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10W
main79197-47010i202211
NEW ZEALAND SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main79197-47010i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main79197-47010i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)
79977GFELT, FRONT SEATBACK, RH
main79977-76010i202211
79977NFELT, SEATBACK
main79977-78020i202211
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85821KMOTOR ASSY, POWER SEAT TILT, RH
main85801-11020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85801-11020i202211
SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER &WITH(SEAT MEMORY)
main85801-47050i202211
85821LMOTOR ASSY, POWER SEAT LIFTER, RH
main85801-11030i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85801-11030i202211
SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER &WITH(SEAT MEMORY)
main85801-47010i202211
85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH
main85801-33020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85801-33020i202211
ARGENTINA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main85801-33020i202211
ARGENTINA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main85801-33020i202211
ARGENTINA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main85801-33020i202211
CHILE SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SE
main85801-33020i202211
CHILE SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-W
main85801-33020i202211
CHILE SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRON
main85801-33020i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main85801-33020i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main85801-33020i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main85801-33020i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main85801-33020i202211
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main85801-33020i202211
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main85801-33020i202211
TAIWAN SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(S
main85801-33020i202211
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-
main85801-33020i202211
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRO
main85801-33020i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY =
main85801-33020i202211
F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEATADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SE
main85801-33020i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85801-33020i202211
F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
main85801-33020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY
main85801-33020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85801-33020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85801-33020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
main85801-33020i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-48050i202211
SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85867-48050i202211
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85867-48050i202211
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY)
main85867-48050i202211
FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main85867-48050i202211
SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main85867-48050i202211
SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY)
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-33010i202211
TAIWAN SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87501-33010i202211
LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(S
main87501-33010i202211
LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY)&SEAT AIR CONDITIONER-WITH(FRO
main87501-33010i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main87501-33010i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY
main87501-33010i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main87501-33010i202211
ARGENTINA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main87501-33010i202211
ARGENTINA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main87501-33010i202211
ARGENTINA SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main87501-33010i202211
ARGENTINA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main87501-33010i202211
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87501-33010i202211
PANAMA,PERU SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main87501-33010i202211
PANAMA,PERU SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87501-33010i202211
CHILE SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SE
main87501-33010i202211
CHILE SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-W
main87501-33010i202211
CHILE SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main87501-33010i202211
CHILE SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRON
main87501-33010i202211
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87501-33010i202211
AUSTRALIA SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY
main87501-33010i202211
AUSTRALIA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WIT
main87501-33010i202211
AUSTRALIA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITION
main87501-33010i202211
AUSTRALIA SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main87501-33010i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main87501-33010i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87501-33010i202211
NEW ZEALAND SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10W
main87501-33010i202211
NEW ZEALAND SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main87501-33010i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main87501-33010i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87501-33010i202211
SOUTH AFRICA SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER &
main87501-33010i202211
SOUTH AFRICA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDIT
main87501-33010i202211
SOUTH AFRICA SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main87501-33010i202211
SOUTH AFRICA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87501-33010i202211
TAIWAN SPEC&F SPORT&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(S
main87501-33010i202211
TAIWAN SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-
main87501-33010i202211
TAIWAN SPEC&REAR SEAT-FOLDING(ELECTRIC)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
main87501-33010i202211
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRO
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-78210i202211
ARGENTINA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main87510-78210i202211
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87510-78210i202211
CHILE SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRON
main87510-78210i202211
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87510-78210i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main87510-78210i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87510-78210i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main87510-78210i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87510-78210i202211
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRO
main87510-78210i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main87510-78210i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY
main87510-78210i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-78190i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main87530-78190i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT ONLY
main87530-78190i202211
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
main87530-78190i202211
LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY)&SEAT AIR CONDITIONER-WITH(FRO
main87530-78190i202211
LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(S
main87530-78190i202211
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRO
main87530-78190i202211
NEW ZEALAND SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87530-78190i202211
NEW ZEALAND SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WIT
main87530-78190i202211
NEW ZEALAND SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10W
main87530-78190i202211
AUSTRALIA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87530-78190i202211
AUSTRALIA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
main87530-78190i202211
AUSTRALIA SPEC&LUXURY&REAR SEAT-FOLDING(ELECTRIC)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY
main87530-78190i202211
CHILE SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87530-78190i202211
CHILE SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONTSEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRON
main87530-78190i202211
ARGENTINA SPEC&SEAT HEATER-WITH(FRONT SEAT)
main87530-78190i202211
ARGENTINA SPEC&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(
9011910601
main90119-10601
9014810007
main90148-10007
9046707215
main90467-07215
9155380514
main91553-80514
9356054012
main93560-54012
9415180800
main94151-80800
9418560600
main94185-60600

53 parts on this diagram · 12 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
