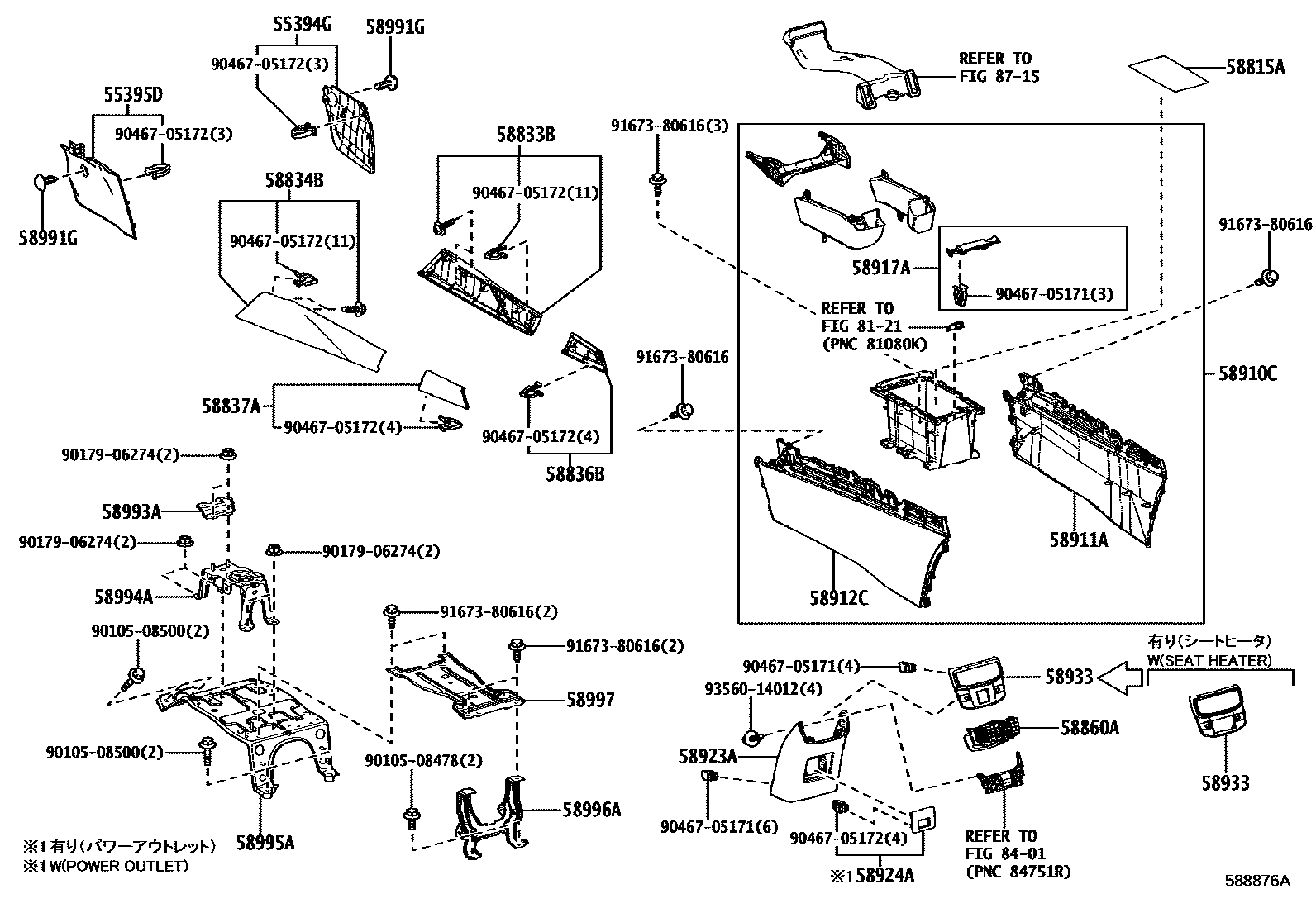

CONSOLE BOX & BRACKET
55394GCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
55395DCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,3#,4#
58815ACARPET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
WHITE/BLACK,TRIM04
WHITE/BLACK,TRIM0#
BLACK/LT.GRAY,TRIM2#
BLACK/HAZEL,TRIM41,42,43
DK.ROSE/RED,TRIM3#
DK.SEPIA/SHELL,TRIM0#
DK.SEPIA/SHELL,TRIM01,02,03
DK.SEPIA/TOUPE,TRIM46,47,48
WHITE/BLACK,TRIM04
WHITE/BLACK,TRIM0#
BLACK/LT.GRAY,TRIM2#
BLACK/HAZEL,TRIM41,42,43
DK.ROSE/RED,TRIM3#
DK.SEPIA/SHELL,TRIM01,02,03
DK.SEPIA/SHELL,TRIM0#
DK.SEPIA/TOUPE,TRIM46,47,48
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
WHITE/BLACK,TRIM0#
WHITE/BLACK,TRIM04
BLACK/LT.GRAY,TRIM2#
BLACK/HAZEL,TRIM41,42,43
DK.ROSE/RED,TRIM3#
DK.SEPIA/SHELL,TRIM0#
DK.SEPIA/SHELL,TRIM01,02,03
DK.SEPIA/TOUPE,TRIM46,47,48
WHITE/BLACK,TRIM0#
WHITE/BLACK,TRIM04
BLACK/LT.GRAY,TRIM2#
BLACK/HAZEL,TRIM41,42,43
DK.ROSE/RED,TRIM3#
DK.SEPIA/SHELL,TRIM0#
DK.SEPIA/SHELL,TRIM01,02,03
DK.SEPIA/TOUPE,TRIM46,47,48
58836BPAD, CONSOLE BOX SILENCER, NO.1
WHITE,TRIM0#
WHITE,TRIM04
BLACK,TRIM2#,41,42,43
BLACK,TRIM2#
DK.ROSE,TRIM3#
DK.SEPIA,TRIM0#,46,47,48
DK.SEPIA,TRIM01,02,03,46,47,48
58837APAD, CONSOLE BOX SILENCER, NO.2
WHITE,TRIM04
WHITE,TRIM0#
BLACK,TRIM2#,41,42,43
BLACK,TRIM2#
DK.ROSE,TRIM3#
DK.SEPIA,TRIM0#,46,47,48
DK.SEPIA,TRIM01,02,03,46,47,48
58860AREGISTER ASSY, CONSOLE BOX
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,3#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,4#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
58917ACOVER, CONSOLE BOX, REAR
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS),BLACK,TRIM0#,2#,4#
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY),BLACK,TRIM0#,2#,4#
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#,4#
SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
LUXURY&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT& REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY),BLACK,TRIM0#,2#,
58924APANEL, CONSOLE REAR END, NO.2
58933GARNISH, CONSOLE REAR END PANEL
LUXURY&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-8WAY POWER & WITH(SEAT MEMORY = *DRS)&AC INVERTER OUTPUT-220V/150W
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY)
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&FRONT SEAT ADJUSTER-10WAY POWER & WITH(SEAT MEMORY)&AC INVERTER OUTPUT-220V/150W
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&AC INVERTER OUTPUT-220V/150W
SEAT AIR CONDITIONER-WITH(FRONT SEAT & REAR SEAT)
58991GCLIP
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121
8401
8715
9010508478
main90105-08478
9010508500
main90105-08500
9017906274
main90179-06274
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9356014012
main93560-14012
31 parts on this diagram · 4 diagrams in section
