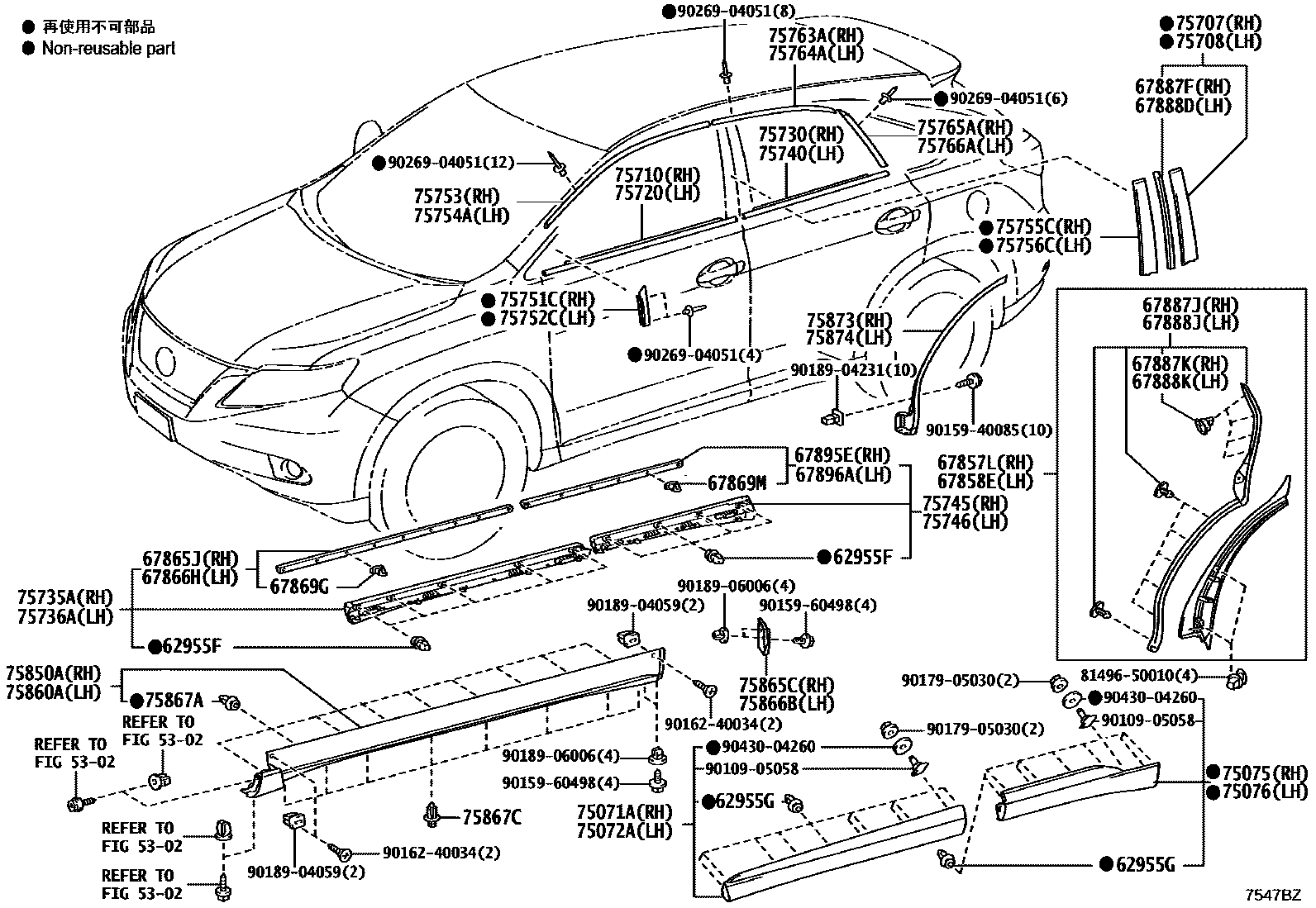

SIDE MOULDING

0001 1 0002 1

5302

62955FRETAINER, QUARTER VENT LOUVER

main62955-50010iAGL10,GGL15,GYL1#200812-201203

62955GRETAINER, QUARTER VENT LOUVER

main62955-50010iAGL10,GGL15,GYL1#200812-201203

67857LPROTECTOR, REAR DOOR PANEL, RH

main67857-48020iAGL10,GGL15,GYL1#200812-201203

67858EPROTECTOR, REAR DOOR PANEL, LH

main67858-48010iAGL10,GGL15,GYL1#200812-201203

67865JWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-48020iAGL10,GGL15,GYL1#200812-201203

67866HWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67865-48020iAGL10,GGL15,GYL1#200812-201203

67869GCLIP, DOOR WEATHERSTRIP

main90467-08219iAGL10,GGL15,GYL1#200812-201203

67869MCLIP, DOOR WEATHERSTRIP

main90467-08219iAGL10,GGL15,GYL1#200812-201203

67887FWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-48030iAGL10,GGL15,GYL1#200812-201203

67887JWEATHERSTRIP, ACCESS PANEL, NO.2 RH

main67873-48010iAGL10,GGL15,GYL1#200812-201203

67887KRETAINER, ACCESS PANEL WEATHERSTRIP, NO.2 RH

main67867-12150iAGL10,GGL15,GYL1#200812-201203

67888DWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-48030iAGL10,GGL15,GYL1#200812-201203

67888JWEATHERSTRIP, ACCESS PANEL, NO.2 LH

main67874-48010iAGL10,GGL15,GYL1#200812-201203

67888KRETAINER, ACCESS PANEL WEATHERSTRIP, NO.2 LH

main67867-12150iAGL10,GGL15,GYL1#200812-201203

67895EWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-48010iAGL10,GGL15,GYL1#200812-201203

67896AWEATHERSTRIP, REAR DOOR, NO.3 LH

main67895-48010iAGL10,GGL15,GYL1#200812-201203

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-48030iAGL10,GGL15,GYL1#200812-201203

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-48030iAGL10,GGL15,GYL1#200812-201203

75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH

main75075-48050iAGL10,GGL15200812-201203

main75075-48070iGYL1#200903-201203

75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH

main75076-48040iAGL10,GGL15200812-201203

main75076-48060iGYL1#200903-201203

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-48020iAGL10,GGL15,GYL1#200812-201203

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-48020iAGL10,GGL15,GYL1#200812-201203

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-48060iAGL10,GGL15,GYL1#200812-201203

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-48060iAGL10,GGL15,GYL1#200812-201203

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-48060iAGL10,GGL15,GYL1#200812-201203

75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75735-48020iAGL10,GGL15,GYL1#200812-201203

75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH

main75736-48020iAGL10,GGL15,GYL1#200812-201203

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-48060iAGL10,GGL15,GYL1#200812-201203

75745MOULDING, REAR DOOR OUTSIDE, LOWER RH

main75745-48020iAGL10,GGL15,GYL1#200812-201203

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

main75746-48020iAGL10,GGL15,GYL1#200812-201203

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-48010iAGL10,GGL15,GYL1#200812-201203

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-48010iAGL10,GGL15,GYL1#200812-201203

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-48010iAGL10,GGL15,GYL1#200812-201203

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-48010iAGL10,GGL15,GYL1#200812-201203

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-48020iAGL10,GGL15,GYL1#200812-201203

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-48020iAGL10,GGL15,GYL1#200812-201203

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-48010iAGL10,GGL15,GYL1#200812-201203

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-48010iAGL10,GGL15,GYL1#200812-201203

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-48010iAGL10,GGL15,GYL1#200812-201311

sub75765-48011

main75765-48011iAGL10,GGL15,GYL1#201312

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-48010iAGL10,GGL15,GYL1#200812-201311

sub75766-48011

main75766-48011iAGL10,GGL15,GYL1#201312

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-48020iAGL10,GGL15,GYL1#200812-201203

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-48020iAGL10,GGL15,GYL1#200812-201203

75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5

main75865-48030iAGL10,GGL15,GYL1#200812-201203

75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6

main75866-48030iAGL10,GGL15,GYL1#200812-201203

75867ACLIP, ROCKER PANEL MOULDING

main90467-10162iAGL10,GGL15,GYL1#200812-201203

75867CCLIP, ROCKER PANEL MOULDING

main75867-30120iAGL10,GGL15,GYL1#201206

main90467-08180iAGL10,GGL15,GYL1#200812-201206

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-48010iAGL10,GGL15,GYL1#200812-201203

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-48010iAGL10,GGL15,GYL1#200812-201203

8149650010GUIDE, REAR COMBINATION LAMP

main81496-50010

9010905058

main90109-05058

9015940085

main90159-40085

9015960498

main90159-60498

9016240034

main90162-40034

9017905030

main90179-05030

9018904059

main90189-04059

9018904231

main90189-04231

9018906006

main90189-06006

9026904051

main90269-04051

9043004260

main90430-04260

60 parts on this diagram · 2 diagrams in section
