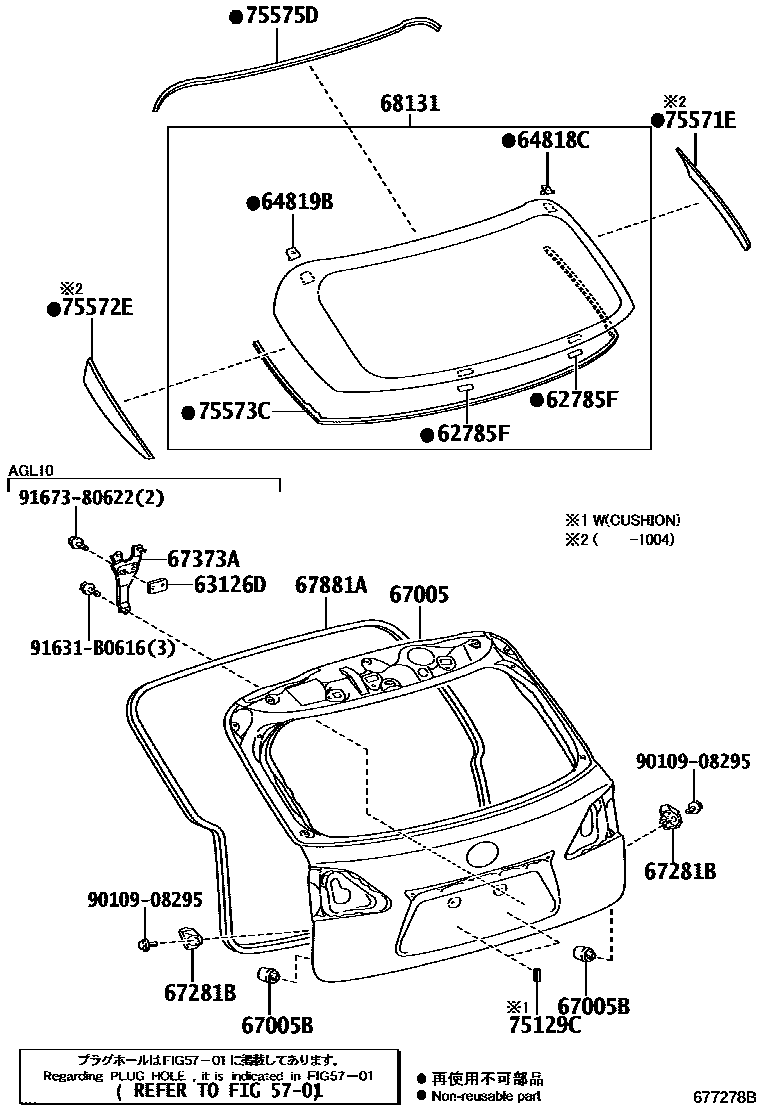

BACK DOOR PANEL & GLASS
5701
62785FSPACER, BACK DOOR GLASS
63126DDAMPER, WINDSHIELD HEADER PANEL
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV& NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-DVD,12SPEAKER&EMV & NAVIGATIONSYSTEM-WITH(HDD NAVIGATION)
INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY)
AUDIO-DISPLAY AUDIO,CD,12SPEAKER
EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)
sub67005-48661
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67373ARETAINER, BACK DOOR WEIGHT, RH
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*UVCEHT,T=3.5,GREEN
*EHT,T=3.5,DARK GRAY
75129CCUSHION, REAR LICENCE PLATE
AUSTRALIA SPEC
AUSTRALIA SPEC
75571EMOULDING, BACK WINDOW, OUTSIDE UPPER RH
75572EMOULDING, BACK WINDOW, OUTSIDE UPPER LH
75573CMOULDING, BACK WINDOW, OUTSIDE
75575DMOULDING, BACK WINDOW, LOWER
9010908295
main90109-08295
91631B0616
main91631-B0616
9167380622
main91673-80622
19 parts on this diagram · 2 diagrams in section
