EPC Data

REAR DOOR LOCK & HANDLE

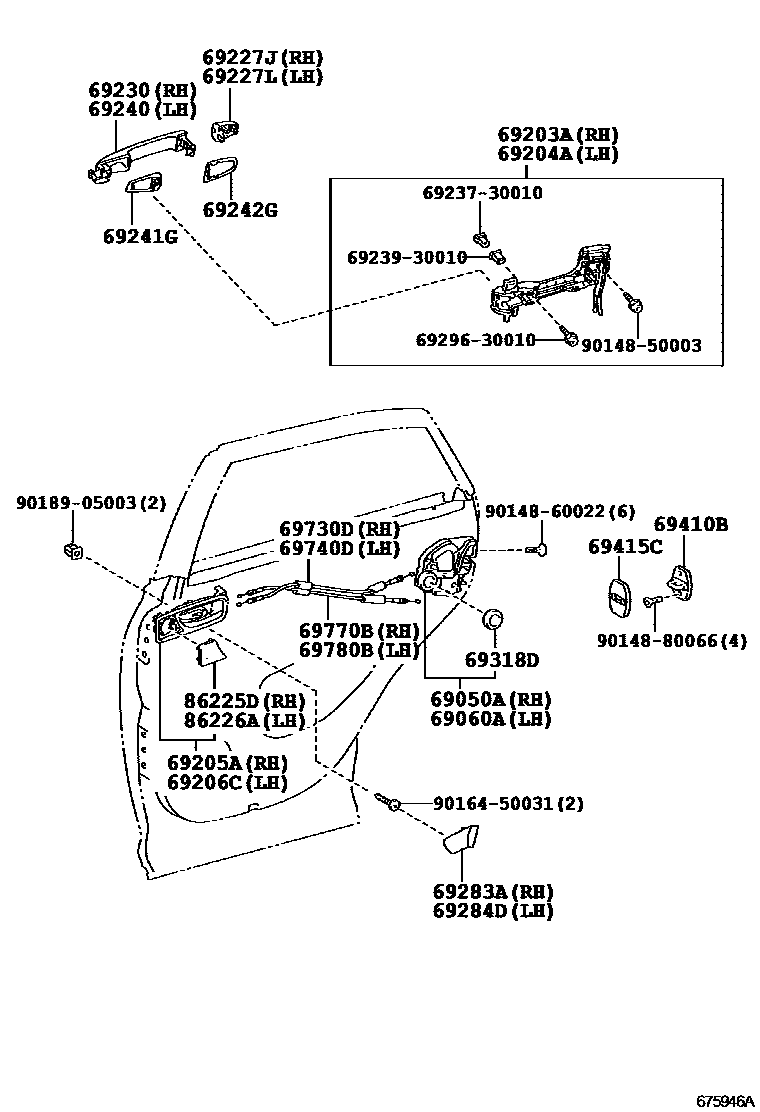

Parts diagram
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-60110i200812-201509
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-60110i200812-201509
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-48040i200812-200905
sub69203-48041
main69203-48041i200906-201203
sub69203-48042
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-48040i200812-200905
sub69204-48041
main69204-48041i200906-201203
sub69204-48042
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67607-48010-A0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67607-48010-A0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67607-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67607-48020-A0i200812-201509
IVORY,TRIM0#
main67607-48020-B0i200903-201203
LT.GRAY,TRIM10
main67607-48020-B0i200812-201203
LT.GRAY,TRIM1#
main67607-48020-C0i200903-201203
BLACK,TRIM12,2#
main67607-48020-C0i200910-201203
BLACK,TRIM1#,2#
main67607-48020-C0i200812-201203
BLACK,TRIM2#
main67607-48020-C0i201203-201509
BLACK,TRIM1#,2#,3#,4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67608-48010-A0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main67608-48010-A0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main67608-48010-C0i201203-201509
BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main67608-48010-C0i201203-201509
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main67608-48020-A0i200812-201509
IVORY,TRIM0#
main67608-48020-B0i200903-201203
LT.GRAY,TRIM10
main67608-48020-B0i200812-201203
LT.GRAY,TRIM1#
main67608-48020-C0i200910-201203
BLACK,TRIM1#,2#
main67608-48020-C0i200903-201203
BLACK,TRIM12,2#
main67608-48020-C0i200812-201203
BLACK,TRIM2#
main67608-48020-C0i201203-201509
BLACK,TRIM1#,2#,3#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-48010-A0i200812-201203
WHITE PEARL CS.,077
sub69227-48010
main69227-48010-A1i200903-201308
QUARTZ WHITE C.S.,078
sub69227-48010
main69227-48010-A2i201308
WHITE NOVA GF.,083
sub69227-48010
main69227-48010-B0i200812-201108
DK.GRAY MC.,1G0
sub69227-48010
main69227-48010-B2i200812-201203
SILVER M.M.,1G1
sub69227-48010
main69227-48010-B4i201108-201203
MERCURY GRAY MC.,1H9
sub69227-48010
main69227-48010-B6i201203
PLATINUM SILVER ME.,1J4
sub69227-48010
main69227-48010-C0i200812-201203
BLACK,212
sub69227-48010
main69227-48010-C1i200910-201203
BLACK OPAL MC.,214
sub69227-48010
main69227-48010-C2i201008-201203
STARLIGHT BLACK GF.,217
sub69227-48010
main69227-48010-D0i200812-201203
RED MC.CS.,3R1
sub69227-48010
main69227-48010-D2i201203
GARNET RED MC.,3S0
sub69227-48010
main69227-48010-E0i200812-201008
BEIGE ME.,4T1
sub69227-48010
main69227-48010-E1i200812-201008
SABLE M.M.,4T5
sub69227-48010
main69227-48010-E2i201203
FIRE AGATE M.M.,4V3
sub69227-48010
main69227-48010-E3i201008-201203
SLEEK ECRU ME.,4U7
sub69227-48010
main69227-48010-J0i200812-201008
DK.BLUE MC. CC.,8U0
sub69227-48010
main69227-48010-J1i200812-201203
SILVERY BLUE ME.,8U9
sub69227-48010
main69227-48010-J3i201203
LAPIS LAZULI MC.,8V3
sub69227-48010
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69228-48010-A0i200812-201203
WHITE PEARL CS.,077
sub69228-48010
main69228-48010-A1i200903-201308
QUARTZ WHITE C.S.,078
sub69228-48010
main69228-48010-A2i201308
WHITE NOVA GF.,083
sub69228-48010
main69228-48010-B0i200812-201108
DK.GRAY MC.,1G0
sub69228-48010
main69228-48010-B2i200812-201203
SILVER M.M.,1G1
sub69228-48010
main69228-48010-B4i201108-201203
MERCURY GRAY MC.,1H9
sub69228-48010
main69228-48010-B6i201203
PLATINUM SILVER ME.,1J4
sub69228-48010
main69228-48010-C0i200812-201203
BLACK,212
sub69228-48010
main69228-48010-C1i200910-201203
BLACK OPAL MC.,214
sub69228-48010
main69228-48010-C2i201008-201203
STARLIGHT BLACK GF.,217
sub69228-48010
main69228-48010-D0i200812-201203
RED MC.CS.,3R1
sub69228-48010
main69228-48010-D2i201203
GARNET RED MC.,3S0
sub69228-48010
main69228-48010-E0i200812-201008
BEIGE ME.,4T1
sub69228-48010
main69228-48010-E1i200812-201008
SABLE M.M.,4T5
sub69228-48010
main69228-48010-E2i201203
FIRE AGATE M.M.,4V3
sub69228-48010
main69228-48010-E3i201008-201203
SLEEK ECRU ME.,4U7
sub69228-48010
main69228-48010-J0i200812-201008
DK.BLUE MC. CC.,8U0
sub69228-48010
main69228-48010-J1i200812-201203
SILVERY BLUE ME.,8U9
sub69228-48010
main69228-48010-J3i201203
LAPIS LAZULI MC.,8V3
sub69228-48010
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-48070-A0i200812-201107
WHITE PEARL CS.,077
sub69210-48070
sub69210-76010
main69210-48070-A1i200903-201107
QUARTZ WHITE C.S.,078
sub69210-48070
sub69210-76010
main69210-48070-B0i200812-201107
DK.GRAY MC.,1G0
sub69210-48070
sub69210-76010
main69210-48070-B1i200812-201107
SILVER M.M.,1G1
sub69210-48070
sub69210-76010
main69210-48070-C0i200812-201107
BLACK,212
sub69210-48070
sub69210-76010
main69210-48070-C1i200910-201107
BLACK OPAL MC.,214
sub69210-48070
sub69210-76010
main69210-48070-C2i201008-201107
STARLIGHT BLACK GF.,217
sub69210-48070
sub69210-76010
main69210-48070-D0i200812-201107
RED MC.CS.,3R1
sub69210-48070
sub69210-76010
main69210-48070-E0i200812-201008
BEIGE ME.,4T1
sub69210-48070
sub69210-76010
main69210-48070-E1i200812-201008
SABLE M.M.,4T5
sub69210-48070
sub69210-76010
main69210-48070-E3i201008-201107
SLEEK ECRU ME.,4U7
sub69210-48070
sub69210-76010
main69210-48070-J0i200812-201008
DK.BLUE MC. CC.,8U0
sub69210-48070
sub69210-76010
main69210-48070-J1i200812-201107
SILVERY BLUE ME.,8U9
sub69210-48070
sub69210-76010
main69210-76010-A0i201108-201509
WHITE PEARL CS.,077
sub69210-76010
main69210-76010-A1i201108-201308
QUARTZ WHITE CS.,078
sub69210-76010
main69210-76010-A2i201308-201509
WHITE NOVA GF.,083
sub69210-76010
main69210-76010-B0i201108-201203
SILVER M.M.,1G1
sub69210-76010
main69210-76010-B1i201108-201509
MERCURY GRAY MC.,1H9
sub69210-76010
main69210-76010-B4i201203-201509
PLATINUM SILVER ME.,1J4
sub69210-76010
main69210-76010-C0i201108-201509
BLACK,212
sub69210-76010
main69210-76010-C1i201108-201203
BLACK OPAL MC.,214
sub69210-76010
main69210-76010-C2i201108-201509
STARLIGHT BLACK GF.,217
sub69210-76010
main69210-76010-D0i201108-201203
RED MC.CS.,3R1
sub69210-76010
main69210-76010-D1i201203-201509
GARNET RED MC.,3S0
sub69210-76010
main69210-76010-E0i201203-201509
FIRE AGATE M.M.,4V3
sub69210-76010
main69210-76010-E1i201108-201509
SLEEK ECRU ME.,4U7
sub69210-76010
main69210-76010-J1i201108-201203
SILVERY BLUE ME.,8U9
sub69210-76010
main69210-76010-J2i201203-201509
LAPIS LAZULI MC.,8V3
sub69210-76010
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69220-48060-A0i200812-201107
WHITE PEARL CS.,077
sub69220-48060
sub69220-76010
main69220-48060-A1i200903-201107
QUARTZ WHITE C.S.,078
sub69220-48060
sub69220-76010
main69220-48060-B0i200812-201107
DK.GRAY MC.,1G0
sub69220-48060
sub69220-76010
main69220-48060-B1i200812-201107
SILVER M.M.,1G1
sub69220-48060
sub69220-76010
main69220-48060-C0i200812-201107
BLACK,212
sub69220-48060
sub69220-76010
main69220-48060-C1i200910-201107
BLACK OPAL MC.,214
sub69220-48060
sub69220-76010
main69220-48060-C2i201008-201107
STARLIGHT BLACK GF.,217
sub69220-48060
sub69220-76010
main69220-48060-D0i200812-201107
RED MC.CS.,3R1
sub69220-48060
sub69220-76010
main69220-48060-E0i200812-201008
BEIGE ME.,4T1
sub69220-48060
sub69220-76010
main69220-48060-E1i200812-201008
SABLE M.M.,4T5
sub69220-48060
sub69220-76010
main69220-48060-E3i201008-201107
SLEEK ECRU ME.,4U7
sub69220-48060
sub69220-76010
main69220-48060-J0i200812-201008
DK.BLUE MC. CC.,8U0
sub69220-48060
sub69220-76010
main69220-48060-J1i200812-201107
SILVERY BLUE ME.,8U9
sub69220-48060
sub69220-76010
main69220-76010-A0i201108-201509
WHITE PEARL CS.,077
sub69220-76010
main69220-76010-A1i201108-201308
QUARTZ WHITE CS.,078
sub69220-76010
main69220-76010-A2i201308-201509
WHITE NOVA GF.,083
sub69220-76010
main69220-76010-B0i201108-201203
SILVER M.M.,1G1
sub69220-76010
main69220-76010-B1i201108-201509
MERCURY GRAY MC.,1H9
sub69220-76010
main69220-76010-B4i201203-201509
PLATINUM SILVER ME.,1J4
sub69220-76010
main69220-76010-C0i201108-201509
BLACK,212
sub69220-76010
main69220-76010-C1i201108-201203
BLACK OPAL MC.,214
sub69220-76010
main69220-76010-C2i201108-201509
STARLIGHT BLACK GF.,217
sub69220-76010
main69220-76010-D0i201108-201203
RED MC.CS.,3R1
sub69220-76010
main69220-76010-D1i201203-201509
GARNET RED MC.,3S0
sub69220-76010
main69220-76010-E0i201203-201509
FIRE AGATE M.M.,4V3
sub69220-76010
main69220-76010-E1i201108-201509
SLEEK ECRU ME.,4U7
sub69220-76010
main69220-76010-J1i201108-201203
SILVERY BLUE ME.,8U9
sub69220-76010
main69220-76010-J2i201203-201509
LAPIS LAZULI MC.,8V3
sub69220-76010
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-48030i200812-201203
RH
main69242-48030i200812-201203
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69241-48040i200812-201009
RH
sub69241-48041
main69241-48041i201010-201302
RH
sub69241-48050
main69241-48050i201303
RH
main69242-48040i200812-201009
LH
sub69242-48041
main69242-48041i201010-201302
LH
sub69242-48050
main69242-48050i201303
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-30050-A2i200812-201203
IVORY,TRIM0#
sub69283-30050
main69283-30050-B0i200903-201203
LT.GRAY,TRIM10
sub69283-30050
main69283-30050-B0i200812-201203
LT.GRAY,TRIM1#
sub69283-30050
main69283-30050-C0i201203
BLACK,TRIM1#,2#,3#,4#
sub69283-30050
main69283-30050-C0i200812-201203
BLACK,TRIM2#
sub69283-30050
main69283-30050-C0i200903-201203
BLACK,TRIM12,2#
sub69283-30050
main69283-30050-C0i200910-201203
BLACK,TRIM1#,2#
sub69283-30050
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-30050-A2i200812-201203
IVORY,TRIM0#
sub69284-30050
main69284-30050-B0i200903-201203
LT.GRAY,TRIM10
sub69284-30050
main69284-30050-B0i200812-201203
LT.GRAY,TRIM1#
sub69284-30050
main69284-30050-C0i200812-201203
BLACK,TRIM2#
sub69284-30050
main69284-30050-C0i200903-201203
BLACK,TRIM12,2#
sub69284-30050
main69284-30050-C0i200910-201203
BLACK,TRIM1#,2#
sub69284-30050
main69284-30050-C0i201203
BLACK,TRIM1#,2#,3#,4#
sub69284-30050
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200812-201203
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33020i200812-201203
69415CCOVER, DOOR LOCK STRIKER, REAR
main69415-33010i200812-201410
main69415-60020i201411
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-48060i200812-201203
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-48060i200812-201203
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-48070i200812-201203
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-48070i200812-201203
86225DCOVER, SPEAKER, RH
main86225-48010-A0i200812-201203
IVORY,TRIM0#
main86225-48010-B0i200903-201203
LT.GRAY,TRIM10
main86225-48010-B0i200812-201203
LT.GRAY,TRIM1#
main86225-48010-C0i200812-201203
BLACK,TRIM2#
main86225-48010-C0i201203
BLACK,TRIM1#,2#,3#,4#
main86225-48010-C0i200903-201203
BLACK,TRIM12,2#
main86225-48010-C0i200910-201203
BLACK,TRIM1#,2#
main86269-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main86269-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86269-48010-C0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
86226ACOVER, SPEAKER, LH
main86226-48010-A0i200812-201203
IVORY,TRIM0#
main86226-48010-B0i200903-201203
LT.GRAY,TRIM10
main86226-48010-B0i200812-201203
LT.GRAY,TRIM1#
main86226-48010-C0i201203
BLACK,TRIM1#,2#,3#,4#
main86226-48010-C0i200903-201203
BLACK,TRIM12,2#
main86226-48010-C0i200812-201203
BLACK,TRIM2#
main86226-48010-C0i200910-201203
BLACK,TRIM1#,2#
main86279-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,IVORY,TRIM0#
main86279-48010-A0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,IVORY,TRIM0#
main86279-48010-C0i201203
BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
AUDIO-DISPLAY AUDIO,CD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
ULTRA LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SEMIANILINE),WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,DAB,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM1#,2#,3#,4#
main86279-48010-C0i201203
SEAT COVER MATERIAL-LEATHER,WITH PERFORATION&AUDIO-DVD,12SPEAKER,BLACK,TRIM1#,2#,3#,4#
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003

31 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
