ENGINE OVERHAUL GASKET KIT

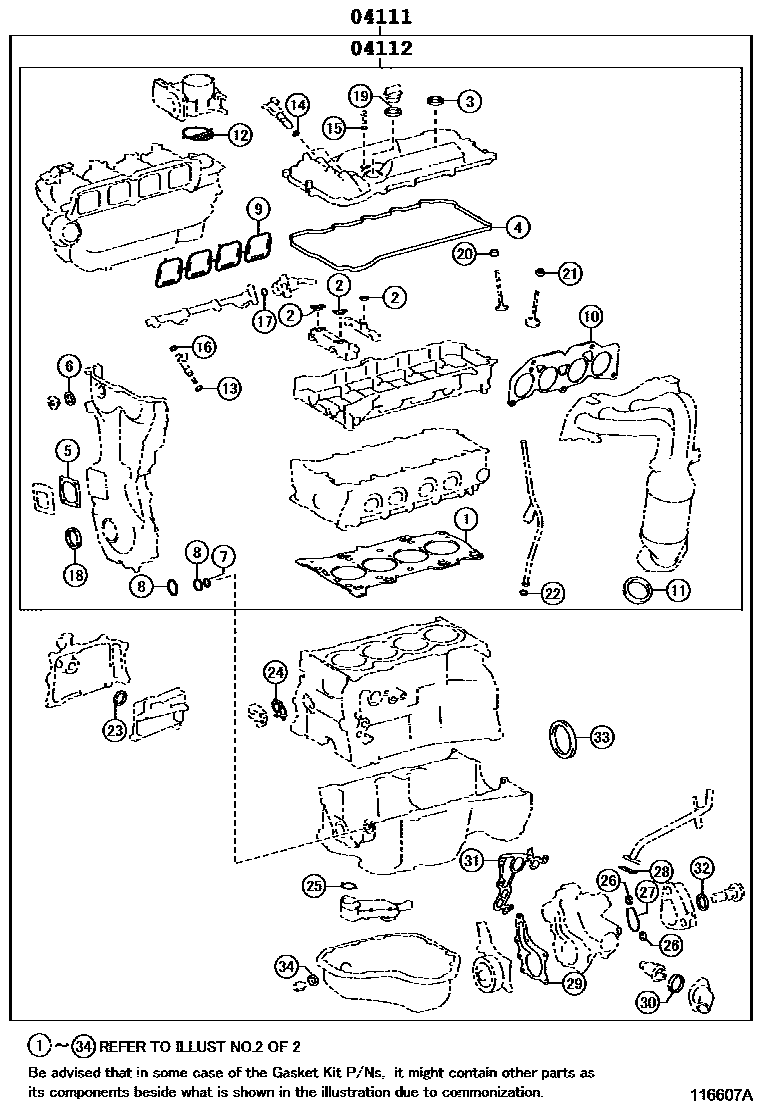

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31853i201505

main04111-31870i200812-201108

main04111-31871i201108-201111

main04111-31872i201203-201503

main04111-31873i201503-201504

main04111-31881i201505

main04111-31890i200903-200906

main04111-31891i201203-201503

main04111-31892i201503-201504

main04111-31910i201203-201503

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC; HONG KONG SPEC

main04111-31911i201503

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC; HONG KONG SPEC

main04111-36050i201008-201111

main04111-36051i201111-201201

main04111-36052i201201-201203

main04111-36053i201309-201312

main04111-36054i201312-201406

main04111-36055i201406-201408

main04111-36056i201408

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31540i200812-201108

main04112-31551i201505

main04112-31560i200903-200906

main04112-31561i200906-201108

main04112-31562i201203-201504

main04112-31651i201203

BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC; HONG KONG SPEC

main04112-31741i201505

main04112-31750i201108-201111

main04112-31751i201111-201203

main04112-36040i201008-201201

main04112-36041i201203-201312

main04112-36042i201312-201406

main04112-36043i201406-201408

main04112-36044i201408

2 parts on this diagram · 10 diagrams in section
