Toyota LEXUS RX300/330/350 — HEATING & AIR CONDITIONING - WATER PIPING

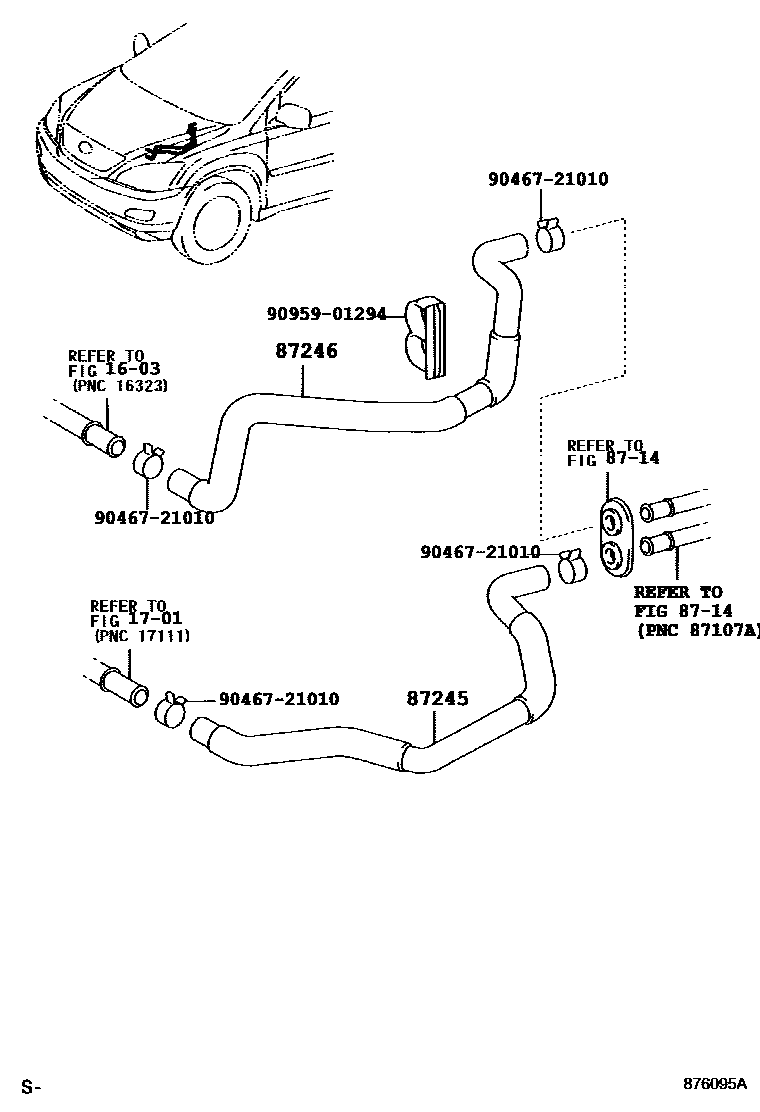

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
8714HEATING & AIR CONDITIONING - COOLER UNIT
→ Go to FIG 87-14
87245HOSE, HEATER WATER, INLET
87245-48200
87245-48201
87245-48220
87245-48221
87245-48A40
87245-48A60
87246HOSE, HEATER WATER, OUTLET
87245-48210
87245-48211
87245-48230
87245-48231
87245-48A50
87245-48A70
9046721010
90467-21010
9095901294
90959-01294

7 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota LEXUS RX300/330/350

This section contains 7 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota LEXUS RX300/330/350. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, HEATING & AIR CONDITIONING - COOLER UNIT, HOSE, HEATER WATER, INLET, HOSE, HEATER WATER, OUTLET.
