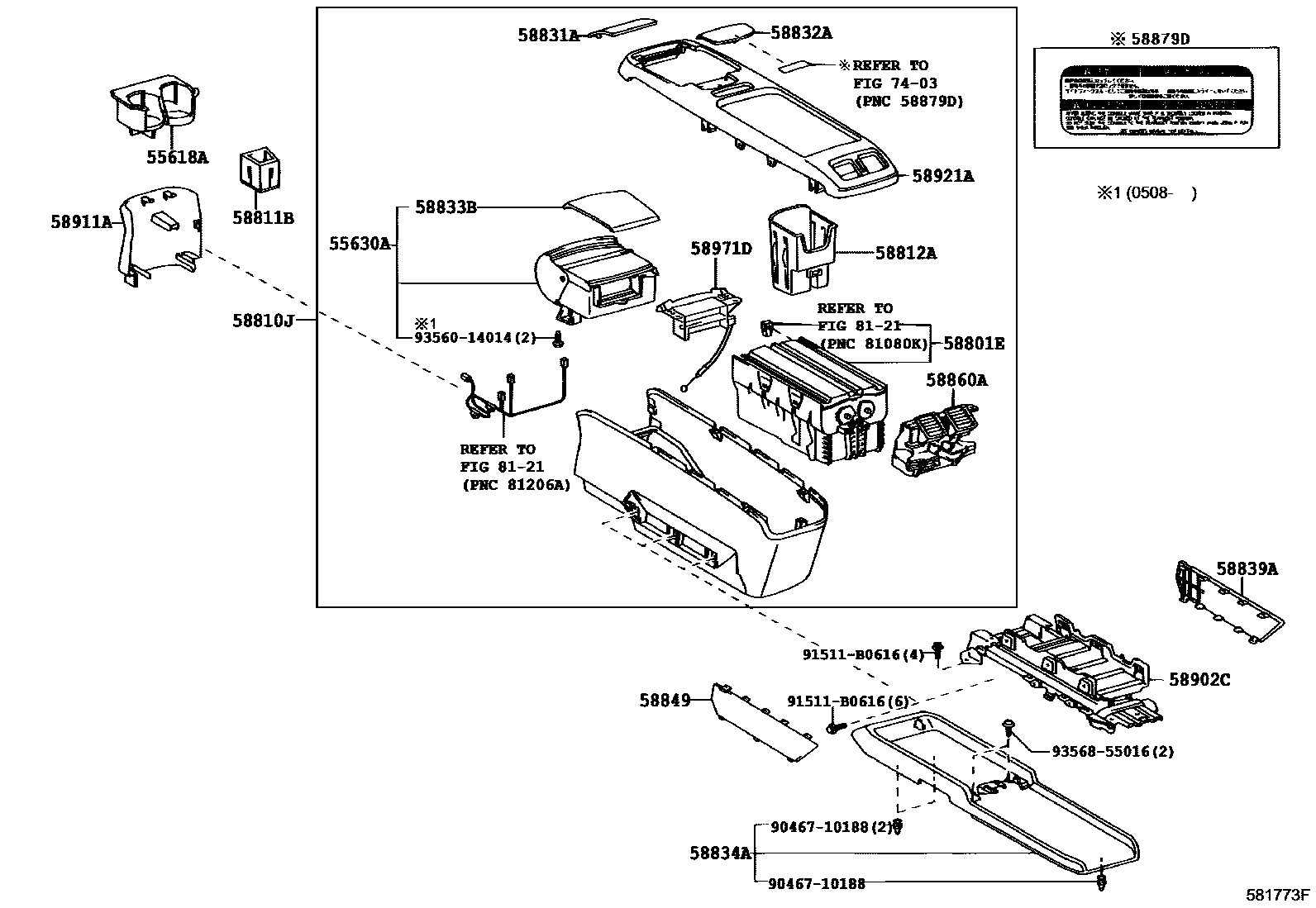

CONSOLE BOX & BRACKET
55630AHOLDER, REAR CONSOLE BOX, CUP
58801EBOX SUB-ASSY, CONSOLE, UPPER
58810JBOX ASSY, CONSOLE
58811BBOX, CONSOLE
58812ABOX, CONSOLE, LOWER
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
DK.GRAY,TRIM12
MD.BROWN,TRIM11,2#
MD.BROWN,TRIM1#,2#
LIGHTBROWN,TRIM0#
58832AGARNISH, CONSOLE UPPER PANEL, REAR
DK.GRAY,TRIM12
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM11,2#
LIGHTBROWN,TRIM0#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
DK.GRAY,TRIM12
MD.BROWN,TRIM11,2#
MD.BROWN,TRIM1#,2#
LIGHTBROWN,TRIM0#
58834ACOVER, CONSOLE, LOWER
58839ACOVER, CONSOLE BOX HOLE
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58849COVER, CONSOLE BOX HOLE, NO.2
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58860AREGISTER ASSY, CONSOLE BOX
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58911APANEL, BOX SIDE, NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58921APANEL, REAR CONSOLE, UPPER
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK
7403
8121
9046710188
main90467-10188
91511B0616
main91511-B0616
9356014014
main93560-14014
9356855016
main93568-55016
23 parts on this diagram · 2 diagrams in section
