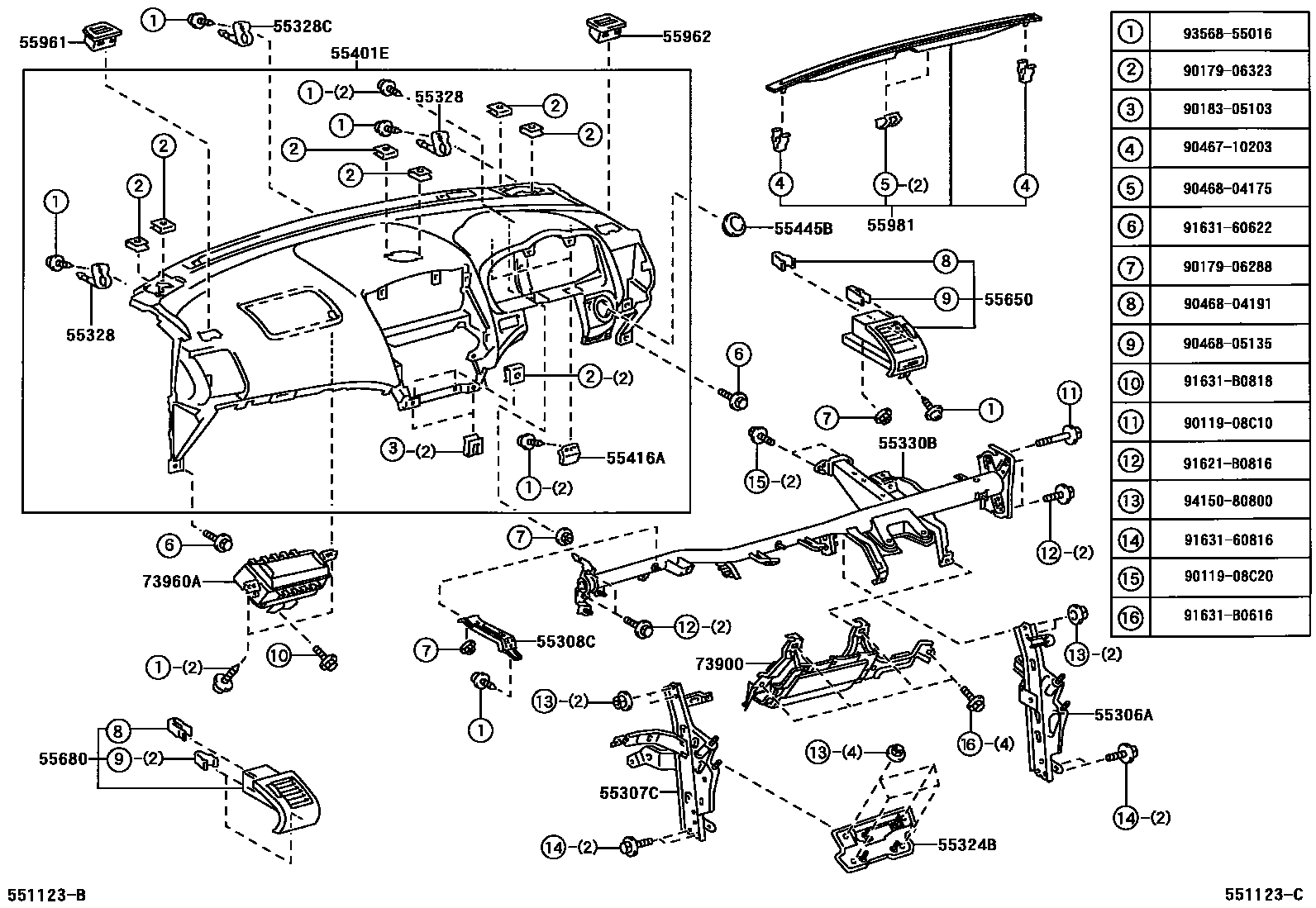

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55324BBRACKET, INSTRUMENT PANEL, NO.4
55328PIN, INSTRUMENT PANEL, NO.1
55328CPIN, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
AUDIO-DVDCH/CST MARK LEVINSON 11SP LHD,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD,BLACK,TRIM1#,2#
AUDIO-DVDCH/CST RDS ML11SP LHD,BLACK,TRIM1#,2#
AUDIO-AMFM CDCH ML 11SP LHD,BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD,SANDAL WOOD,TRIM0#
AUDIO-DVDCH/CST RDS ML11SP LHD,SANDAL WOOD,TRIM0#
AUDIO-AMFM CDCH ML 11SP LHD,SANDAL WOOD,TRIM0#
AUDIO-DVDCH/CST MARK LEVINSON 11SP LHD,SANDAL WOOD,TRIM0#
55416ARETAINER, METER HOOD, NO.1
55445BPLATE, INSTRUMENT PANEL FINISH
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
55981GARNISH, DEFROSTER NOZZLE, NO.1
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9011908C10
main90119-08C10
9011908C20
main90119-08C20
9017906288
main90179-06288
9017906323
main90179-06323
9018305103
main90183-05103
9046710203
main90467-10203
9046804175
main90468-04175
9046804191
main90468-04191
9046805135
main90468-05135
91621B0816
main91621-B0816
9163160622
main91631-60622
9163160816
main91631-60816
91631B0616
main91631-B0616
91631B0818
main91631-B0818
9356855016
main93568-55016
9415080800
main94150-80800
33 parts on this diagram · 8 diagrams in section
