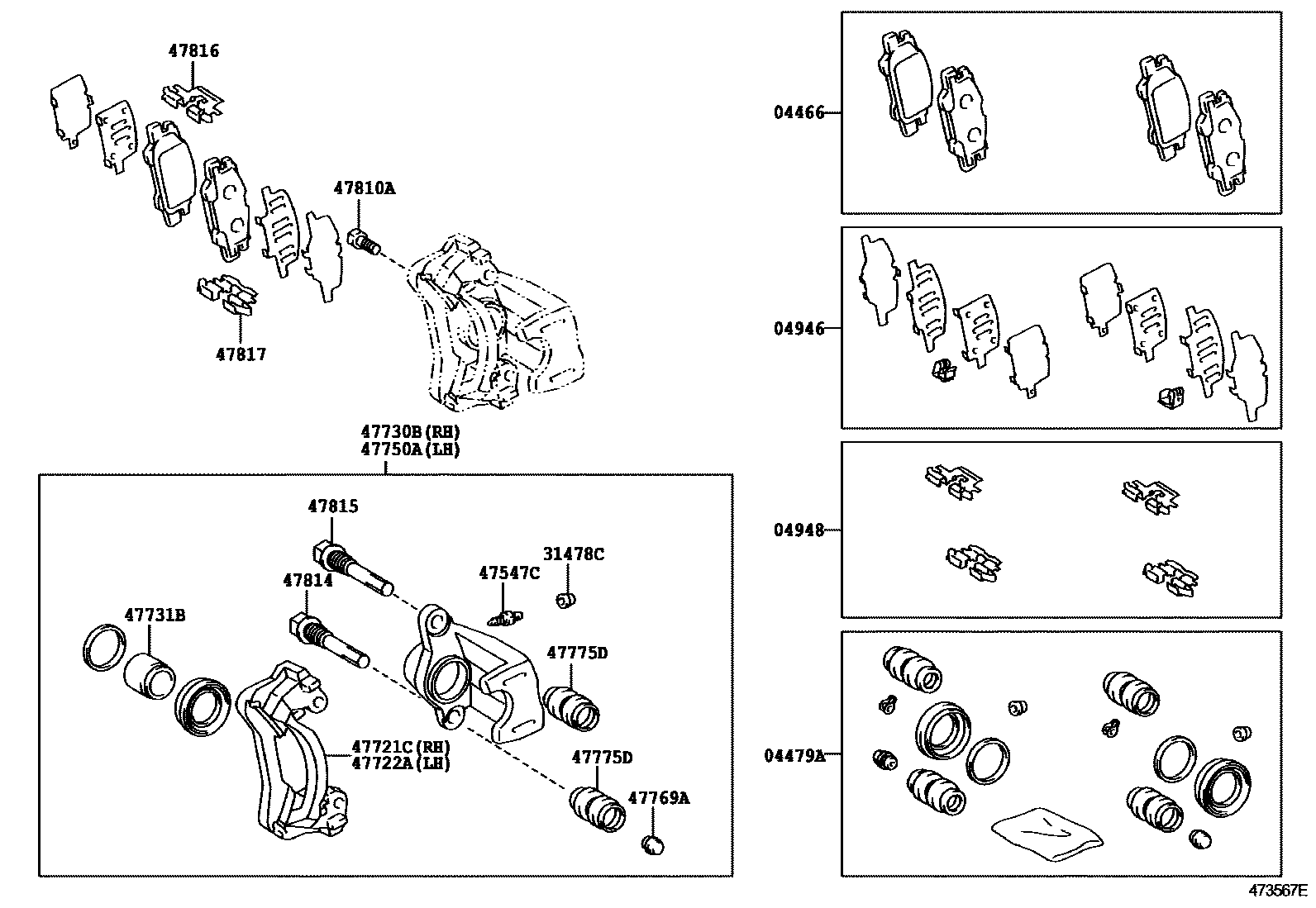

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK PA544
MARK AK PA561
MARK SUMITOMO PS506H
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
SINGAPORE SPEC
BRUNEI SPEC
HONG KONG SPEC
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
SINGAPORE SPEC
BRUNEI SPEC
HONG KONG SPEC
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47731BPISTON, REAR DISC BRAKE
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)
18 parts on this diagram · 1 diagram in section
