SHORT BLOCK ASSEMBLY

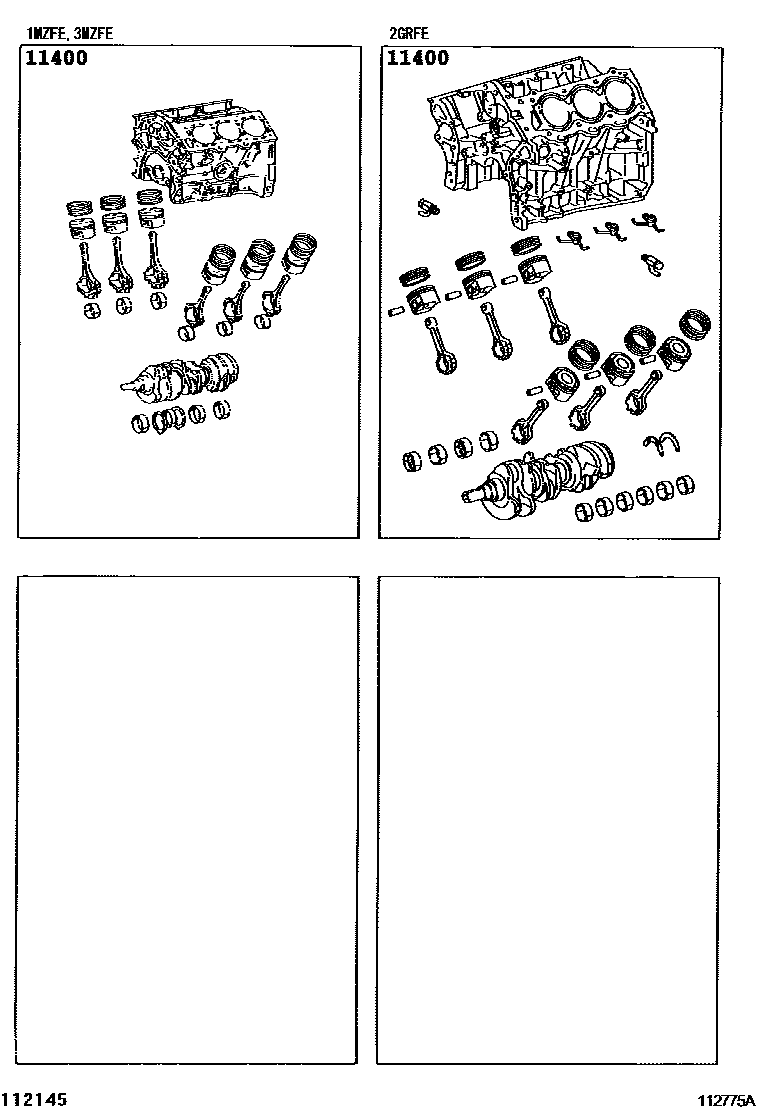

Parts diagram

11400BLOCK ASSY, SHORT

main11400-20061i200302-200312

main11400-20110i200302-200601

main11400-20240i200312-200401

main11400-20270i200401-200403

main11400-31160i200601-200703

main11400-31161i200703-200812

1 parts on this diagram · 1 diagram in section
