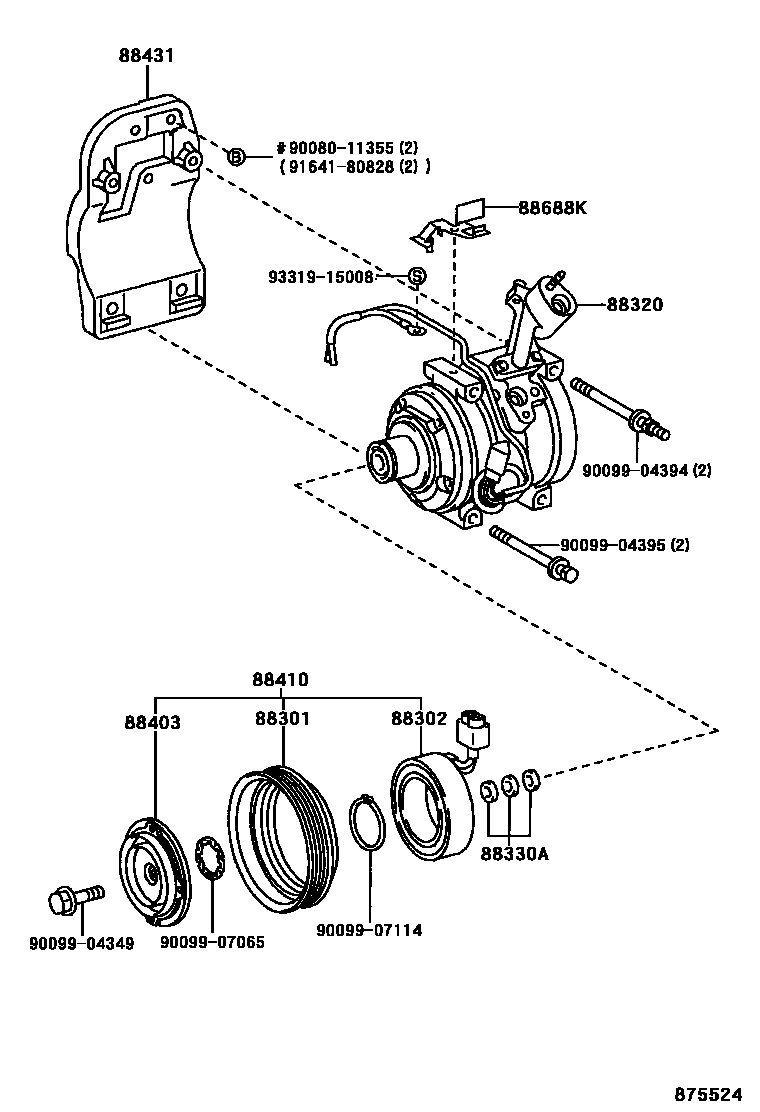

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-48020iMCU15200007

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iMCU15200007

88320COMPRESSOR ASSY, COOLER

main88320-48060iMCU15200007

main88320-48090iMCU15..LHD200108

GULF SPEC

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCU15200007

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-32010iMCU15200007

88410CLUTCH ASSY, MAGNET

main88410-33120iMCU15200007

main88410-48040iMCU15..LHD200108

GULF SPEC

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07021iMCU15200208

DENSO USA

main88431-33041iMCU15200007-200208

main88431-33041iMCU15200208

DENSO JAPAN

88688KBRACKET, COOLER COMPRESSOR

main88688-07040iMCU15..LHD200203

GULF SPEC

main88688-48040iMCU15200007

9008011355

main90080-11355

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
