ANTENNA

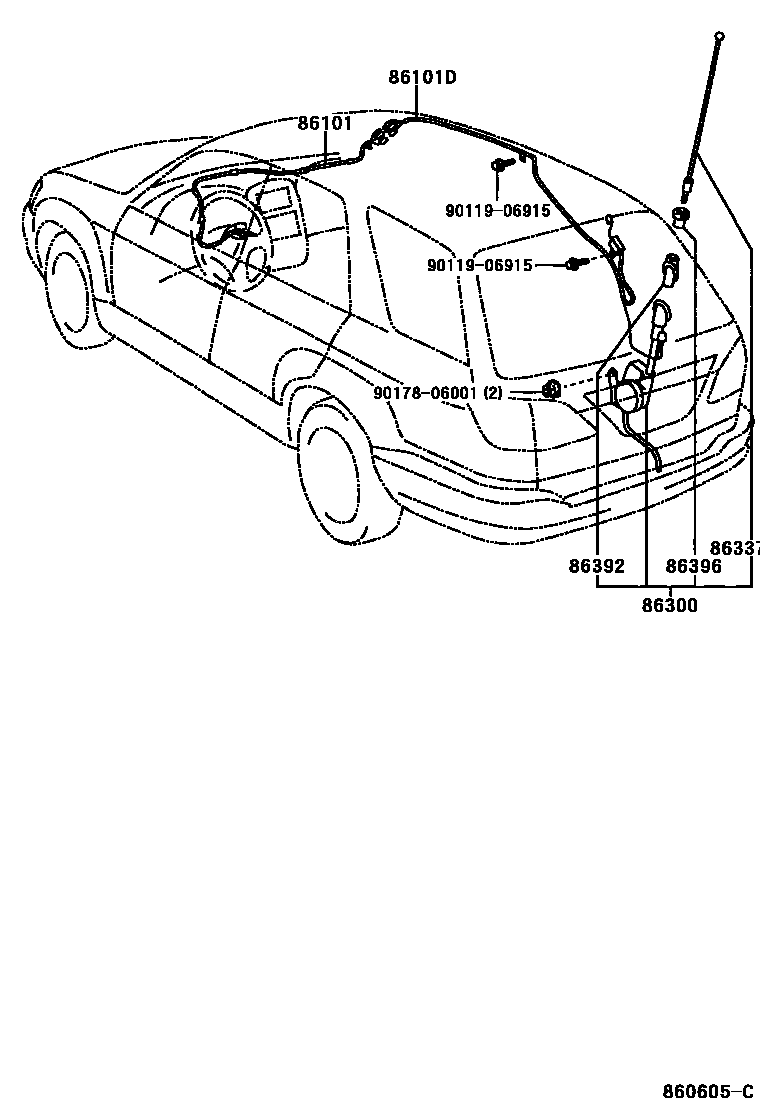

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-48021i200007

HONG KONG OR SINGAPORE OR BRUNEI SPEC

main86101-48080i200007

main86101-48090i200007

W(MOON ROOF)

main86101-48110i200007

W(NAVIGATION SYSTEM)

main86101-48120i200007

W(NAVIGATION SYSTEM & MOON ROOF)

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-48041i200007

HONG KONG OR SINGAPORE OR BRUNEI SPEC

main86101-48051i200007

W(MOON ROOF)

main86101-48100i200007

main86101-48160i200007

W(NAVIGATION SYSTEM & MOON ROOF) OR W(NAVIGATION SYSTEM)

86300ANTENNA ASSY, W/HOLDER

main86300-0W030i200007

86337ROD & PIPE, SEALED W/CABLE

main86337-0W030i200007

86392ORNAMENT, ANTENNA

main86392-0W010i200007-200208

main86392-0W011i200208

86396NUT, ANTENNA

main86396-06010i200007

9011906915

main90119-06915

9017806001

main90178-06001

8 parts on this diagram · 1 diagram in section
