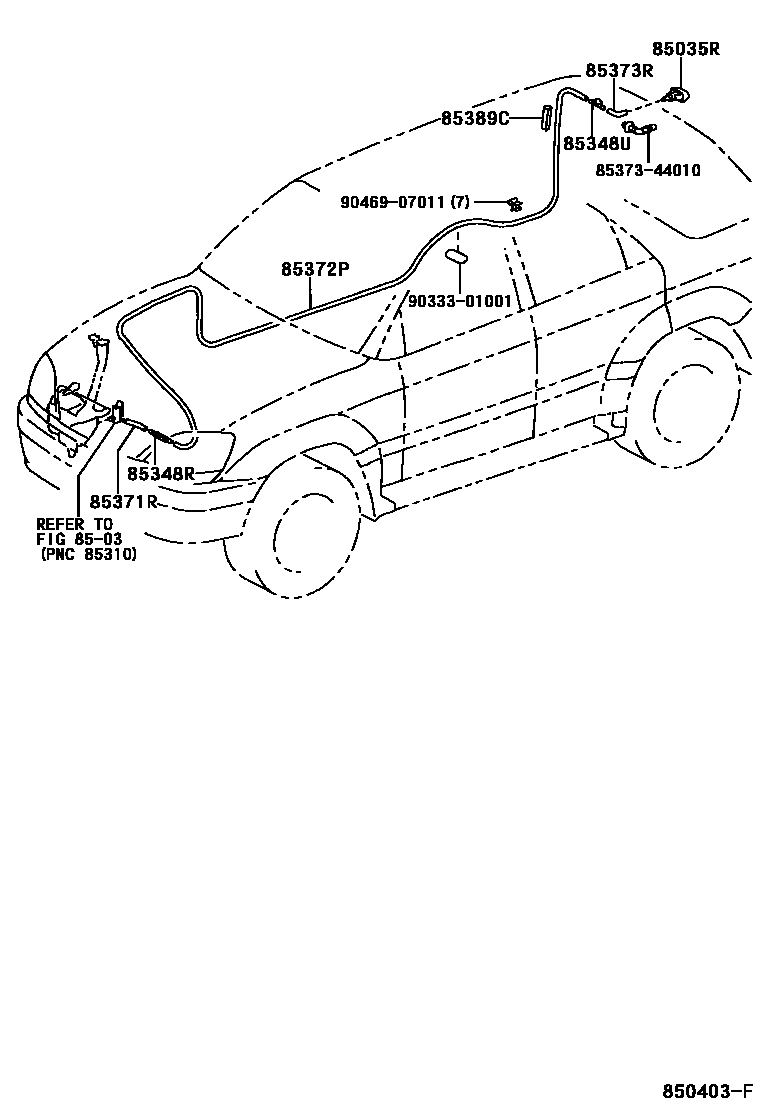

REAR WASHER

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85395-48010iMCU15200007

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-32150iMCU15200007

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-17050iMCU15200007

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-59109iMCU15200007

L=180

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main85376-48020iMCU15200007

L=5920

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-59163iMCU15200007

L=290

85389CPROTECTOR, WASHER

main85389-48020iMCU15200008

sub85389-52320

8537344010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-44010

9033301001

main90333-01001

9046907011

main90469-07011

11 parts on this diagram · 1 diagram in section
