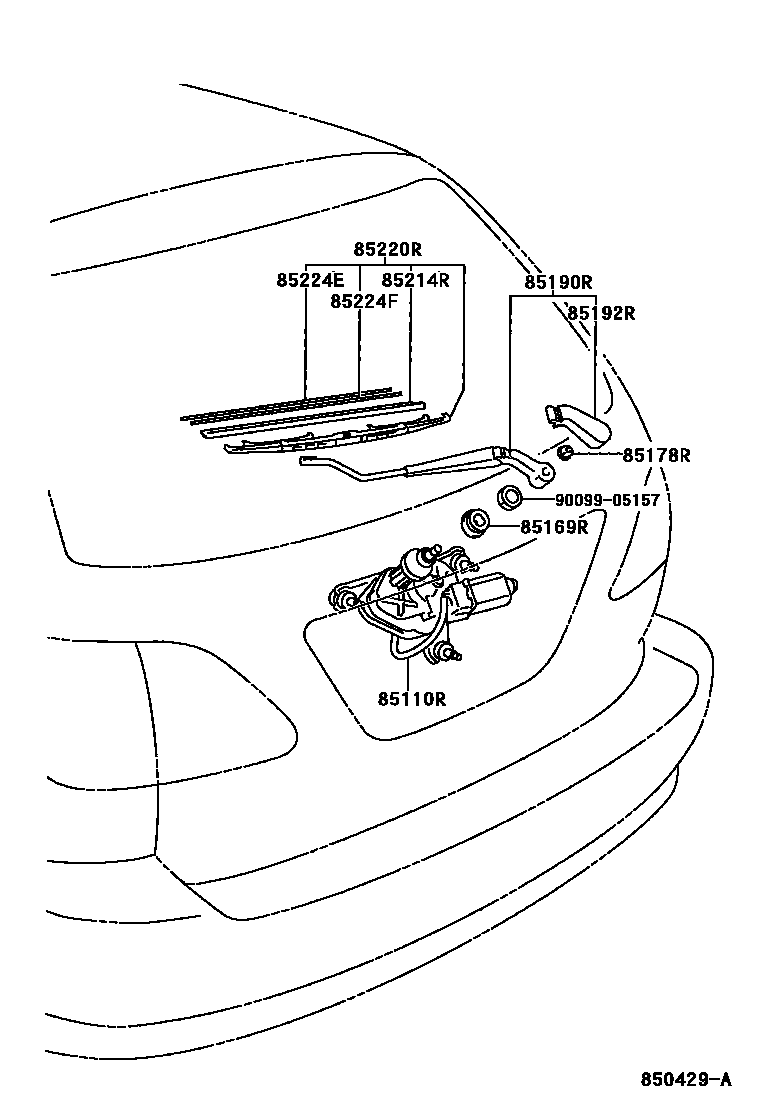

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-48010iMCU15200007

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-48010iMCU15200007

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMCU15200007

85190RARM ASSY, REAR WIPER

main85241-48010iMCU15200007

85192RCOVER, REAR WIPER ARM

main85292-44020iMCU15200007

85214RRUBBER, REAR WIPER

main85214-10100iMCU15200007

85220RBLADE ASSY, REAR WIPER

main85242-48010iMCU15200007

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-48020iMCU15200007

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-48020iMCU15200007

9009905157

main90099-05157

10 parts on this diagram · 1 diagram in section
